使用线性模式Karma应变计测量单个方向的应变。应变计模式如上所示桌子的左侧。请注意“箭头”表示主体应力方向。
线性模式应变计是有多种款式可供选择，并且大小。OMEGADYNE®提供微型用于应变测量的线性图案应力集中或高梯度区域。止端是在网格的一端同时提供，或者网格的两端各有一个。宽或窄线性网格模式是可用。业力计配有电镀焊盘，便于接线。
确定应变计是否具有温度特性匹配钢或铝，请参阅（在规格表上）标记的列“COMP”是补偿的缩写，“ST”表示钢，“AL”表示铝。请参阅标有“BTP”用于附件可粘合端子焊盘型号。
列出了图案量具的尺寸网格长度（A）和宽度（B），以及矩阵或载体长度（C）和宽度（D）.图案包括对齐三角形和字母代码表示蠕变代码。
OMEGA应变片订货信息：
| 引线 未显示 | 型号(5件装) | NOM. RESIS- TANCE(Ω) | 尺寸mm(inch)† | Max V* (Vrms) | TERMINATION | TEMP COMP | |||
| grid | carrier | ||||||||
| A | B | C | D | ||||||
5.5mm | SGK-L1D-K350P-PC11-E | 350 | 1.5 (0.059) | 2.5 (0.098) | 5.5 (0.22) | 4 (0.16) | 6.5 | Solder Pads | ST |
| SGK-L1D-K350P-PC23-E | 350 | Miniature linear pattern, measurement of stress concentration 350 Ω | 9 | Solder Pads | AL | ||||
6mm | SGK-L1E-K350T-PC11-E | 350 | 1.51 (0.059) | 4.5 (0.177) | 6 (0.24) | 6 (0.24) | 8.5 | Solder Pads | ST |
| SGK-L1E-K350T-PC23-E | 350 | Miniature linear pattern, measurement of stress concentration 350 Ω | 12.5 | Solder Pads | AL | ||||
7.5mm | SGK-L3A-K350U-PC11-E | 350 | 3.2 (0.126) | 3.2 (0.126) | 7.5 (0.3) | 4.6 (0.18) | 10.5 | Solder Pads | ST |
| SGK-L3A-K350U-PC23-E | 350 | Small linear pattern, lead/padsat one end of grid 350 Ω | 14.5 | Solder Pads | AL | ||||
7.2mm | SGK-L3B-K350S-PC11-E | 350 | 3.2 (0.126) | 2.5 (0.098) | 7.2 (0.28) | 4 (0.16) | 9 | Solder Pads | ST |
| SGK-L3B-K350S-PC23-日 | 350 | Small linear pattern, lead/pads at one end of grid 350 Ω | 13 | Solder Pads | AL | ||||
* Maximum permitted bridge energizing voltage (Vrms).
ST = Steel
AL = Aluminum

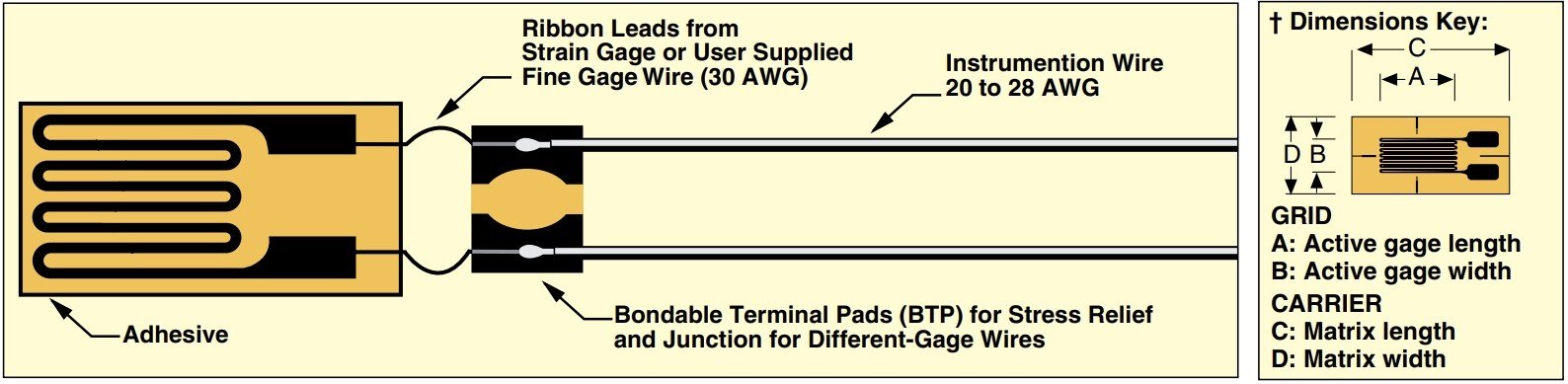

典型应变片安装
订货信息：
| 引线 未显示 | 型号(5件装) | NOM. RESIS- TANCE(Ω) | 尺寸mm(inch)† | Max V* (Vrms) | TERMINATION | TEMP COMP | COMP PAD | |||
| grid | carrier | |||||||||
| A | B | C | D | |||||||
8.3mm | SGK-L3C-K350T-PC11-E | 350 | 3.2 (0.126) | 3.1 (0.122) | 8.3 (0.33) | 4.6 (0.18) | 10.5 | Solder Pads | ST | BPT-3 |
| SGK-L3C-K350T-PC23-E | 350 | Linear pattern, medium size, lead/pad at each side of grid 350 Ω | 14.5 | Solder Pads | AL | |||||
8.5mm | SGK-L3D-K350P-PC11-E | 350 | 2.8 (0.110) | 2.1 (0.083) | 8.5 (0.34) | 3.5 (0.14) | 8 | Solder Pads | ST | BPT-3 |
| SGK-L3D-K350P-PC23-E | 350 | Linear pattern, medium size, lead/pad at each side of grid 350 Ω | 12 | Solder Pads | AL | |||||
7mm | SGK-L3E-K350W-PC11-E | 350 | 3.2 (0.126) | 1.5 (0.059) | 7 (0.28) | 3 (0.12) | 7.5 | Solder Pads | ST | BPT-3 |
| SGK-L3E-K350W-PC23-E | 350 | Linear pattern, medium size, grid width narrow 350 Ω | 10.5 | Solder Pads | AL | |||||
11mm | SGK-L6A-K350U-PC11-E | 350 | 6.3 (0.248) | 3.2 (0.126) | 11 (0.43) | 4.7 (0.18) | 15 | Solder Pads | ST | BPT-4 |
| SGK-L6A-K350U-PC23-E | 350 | Linear pattern, large size 350 Ω | 20 | Solder Pads | AL | |||||
11mm | SGK-L6A-K1000U-PC11-E | 1000 | 6.3 (0.248) | 3.2 (0.126) | 11 (0.43) | 4.7 (0.18) | 25 | Solder Pads | ST | BPT-4 |
| SGK-L6A-K1000U-PC23-E | 1000 | Linear pattern, large size, Higher resistance, reduced heat generation 1000 Ω | 35 | Solder Pads | AL | |||||
11.3mm | SGK-L6B-K350U-PC11-E | 350 | 6.3 (0.248) | 4.4 (0.173) | 11.3 (0.44) | 6 (0.24) | 17 | Solder Pads | ST | BPT-4 |
| SGK-L6B-K350U-PC23-E | 350 | Linear pattern, large size 350 Ω | 24 | Solder Pads | AL | |||||
11.3mm | SGK-L6B-K1000U-PC11-E | 1000 | 6.3 (0.248) | 4.4 (0.173) | 11.3 (0.44) | 6 (0.24) | 28 | Solder Pads | ST | BPT-4 |
| SGK-L6B-K1000U-PC23-E | 1000 | Linear pattern, large size, higher resistance, reduced heat generation 1000 Ω | 28 | Solder Pads | AL | |||||
* Maximum permitted bridge energizing voltage (Vrms).
ST = Steel
AL = Aluminum

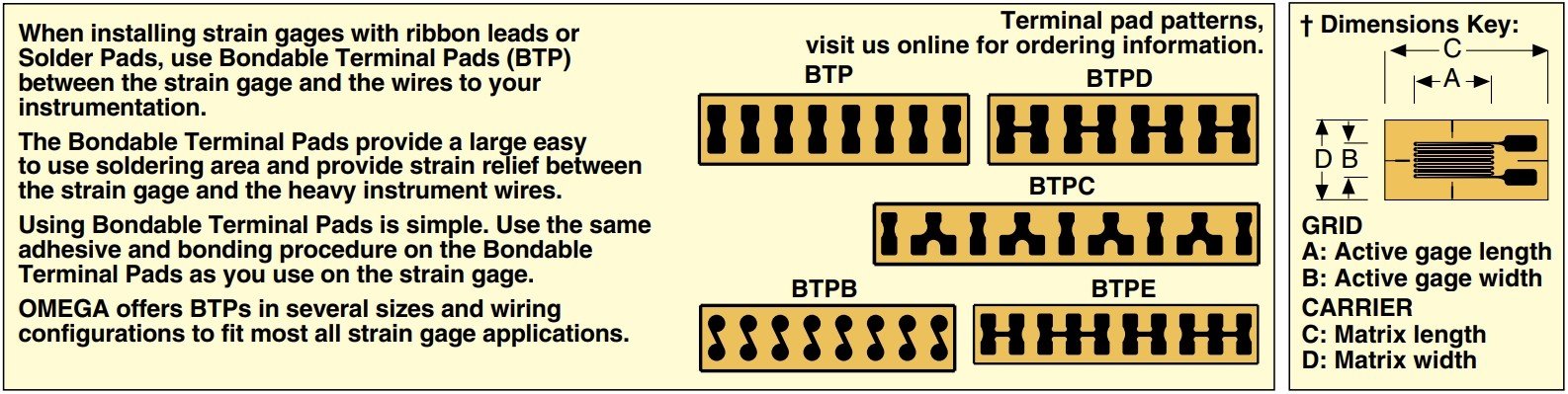

可粘合端子焊盘
