美国OMEGA用于弯曲应用的应变片双栅SGT-2/350-DY43

OMEGA探头质量应变片有多种模式可供选择，以满足大多数探头设计要求。其坚固的结构、可靠性和灵活性使其适用于高精度静态和动态传感器。测量网格由特殊配方的蚀刻康铜箔形成，然后将其完全密封在由聚酰亚胺薄膜组成的载体介质中，以确保长期可靠性。

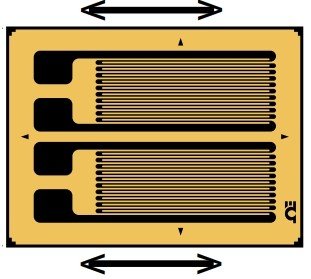

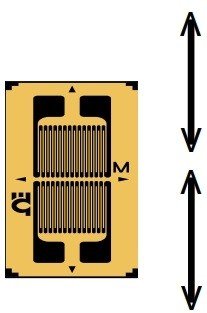

美国OMEGA用于弯曲应用的应变片双栅

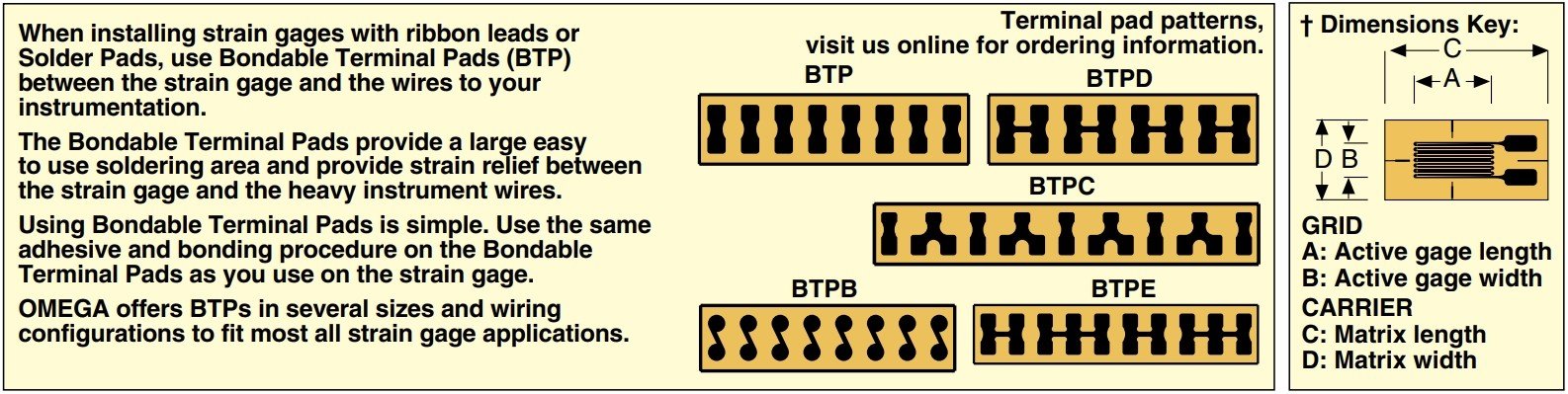

OMEGA应变片订货信息：

引线未显示	型号(5件装)	NOM. RESIS- TANCE(Ω)	尺寸mm(inch)†				Max V* (Vrms)	TERMINATION	TEMP COMP
			grid		carrier
			A	B	C	D
尺寸5.5mm	SGT-2/350-DY11	350	2.0	2.0	5.5	5.9	6.5	Ribbon Leads	ST
	SGT-2/350-DY13	350	(0.079)	(0.079)	(0.217)	(0.232)	9.5	Ribbon Leads	AL
	SGT-2/350-DY41	350	Miniature, parallel dual grid pattern, bending strain 350 Ω				6.5	Solder Pads	ST
	SGT-2/350-DY43	350	Miniature, parallel dual grid pattern, bending strain 350 Ω				9.5	Solder Pads	AL
尺寸6.1mm	SGT-2C/350-DY11	350错误!超链接引用无效。	1.9	2.5	6.1	6.4	7	Ribbon Leads	ST
	SGT-2C/350-DY13	350	(0.075)	(0.098)	(0.24)	(0.252)	10	Ribbon Leads	AL
	SGT-2C/350-DY41	350	Small, parallel dual grid pattern, bending strain 350 Ω				7	Solder Pads	ST
	SGT-2C/350-DY43	350	Small, parallel dual grid pattern, bending strain 350 Ω				10	Solder Pads	AL
尺寸7mm	SGT-3N/350-DY11	350	3.2	2.5	7.0	6.9	9	Ribbon Leads	ST
	SGT-3N/350-DY13	350	(0.126)	(0.098)	(0.276)	(0.272)	13	Ribbon Leads	AL
	SGT-3N/350-DY41	350	Medium, parallel dual grid pattern, bending strain 350 Ω				9	Solder Pads	ST
	SGT-3N/350-DY43	350	Medium, parallel dual grid pattern, bending strain 350 Ω				13	Solder Pads	AL
尺寸6mm	SGT-3/350-DY11	350	3.0	1.6	6.0	4.1	7.5	Ribbon Leads	ST
	SGT-3/350-DY13	350	(0.118)	(0.063)	(0.236)	(0.161)	10	Ribbon Leads	AL
	SGT-3/350-DY41	350	Medium, parallel dual grid pattern, bending strain, grid narrow 350 Ω				7.5	Solder Pads	ST
	SGT-3/350-DY43	350					10	Solder Pads	AL
尺寸10mm	SGT-6/350-DY11	350	6.3	2.5	10.0	7.0	13	Ribbon Leads	ST
	SGT-6/350-DY13	350	(0.248)	(0.098)	(0.394)	(0.276)	18	Ribbon Leads	AL
	SGT-6/350-DY41	350	Medium, parallel dual pattern, grid narrow 350 Ω				13	Solder Pads	ST
	SGT-6/350-DY43	350	Medium, parallel dual pattern, grid narrow 350 Ω				18	Solder Pads	AL
尺寸11.8mm	SGT-7/350-DY11	350	6.5	3.6	11.8	9.7	15	Ribbon Leads	ST
	SGT-7/350-DY13	350	(0.256)	(0.142)	(0.465)	(0.382)	20	Ribbon Leads	AL
	SGT-7/350-DY41	350	Large, parallel dual pattern 350 Ω				15	Solder Pads	ST
	SGT-7/350-DY43	350	Large, parallel dual pattern 350 Ω				20	Solder Pads	AL
尺寸11.8mm	SGT-7/1000-DY11	1000	6.5	3.6	11.8	9.7	27	Ribbon Leads	ST
	SGT-7/1000-DY13	1000	(0.256)	(0.142)	(0.465)	(0.382)	40	Ribbon Leads	AL
	SGT-7/1000-DY41	1000	Large, parallel dual pattern, bending strain, higher resistance, reduced heat generation 1000 Ω				27	Solder Pads	ST
	SGT-7/1000-DY43	1000					40	Solder Pads	AL
尺寸7mm	SGT-2D/350-DY11	350	1.5	0.7	7.0	3.0	5.5	Ribbon Leads	ST
	SGT-2D/350-DY13	350	(0.059)	(0.067)	(0.276)	(0.118)	7.5	Ribbon Leads	AL
	SGT-2D/350-DY41	350	Dual-element pattern for narrow bending beams Centerline spacing 2 mm (0.079") 350 Ω				5.5	Solder Pads	ST
	SGT-2D/350-DY43	350					7.5	Solder Pads	AL
