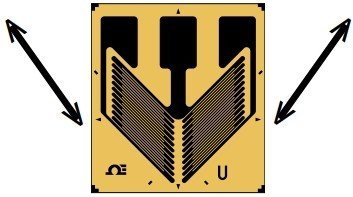

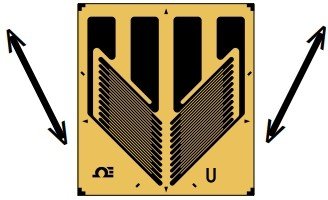

OMEGADYNE提供用于剪切和扭转的K系列应变计应用。这些应变计可用于传感器设计用于剪切梁称重传感器。它们也可用于反作用力矩一根轴。提供单应变片，SGK-SS3A-K350U-****和匹配但网格角度相反的是SGK-SS3B-K350U-****。这SGK-SD3A-K350U-****和SGK-SD3B-K350U-****有2个剪切力应变片，具有相反的网格角，在一个载体上，具有单独的引线/插片（电气独立）。SGK-SDH3B-K350U-****具有2个剪切应变计，具有相反的网格角度，带有一个公共导线/凸耳。
OMEGA应变片订货信息：
| 引线 未显示 | 型号(5件装) | NOM. RESIS- TANCE(Ω) | 尺寸mm(inch)† | Max V* (Vrms) | TERMINATION | TEMP COMP | |||
| grid | carrier | ||||||||
| A | B | C | D | ||||||

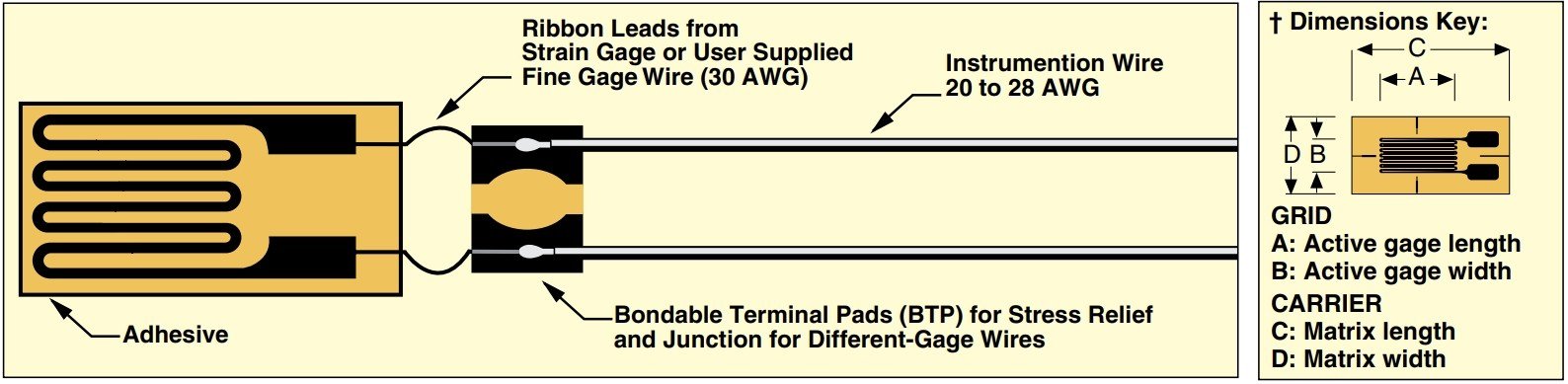

9.2mm | SGK-SS3A-K350U-PC11-E | 350 | 3.2 (0.126) | 3.38 (0.133) | 9.2 (0.36) | 4.7 (0.19) | 11 | Solder Pads | ST |
| SGK-SS3A-K350U-PC23-E | 350 | Single shear gage 350Ω | 15 | Solder Pads | AL | ||||
9.2mm | SGK-SS3B-K350U-PC11-E | 350 | 3.2 (0.126) | 3.38 (0.133) | 9.2 (0.36) | 4.7 (0.19) | 11 | Solder Pads | ST |
| SGK-SS3B-K350U-PC23-E | 350 | Single shear gage with opposite grid angle 350Ω | 15 | Solder Pads | AL | ||||
9.8mm | SGK-SD3A-K350U-PC11-E | 350 | 3.2 (0.126) | 3.38 (0.133) | 9.8 (0.39) | 8.5 (0.33) | 11 | Solder Pads | ST |
| SGK-SD3A-K350U-PC23-E | 350 | Shear torque, 2 gages on one carrier 350Ω | 15 | Solder Pads | AL | ||||
10.2mm | SGK-SD3B-K350U-PC11-E | 350 | 3.2 (0.126) | 3.38 (0.133) | 10.2 (0.4) | 9.4 (0.37) | 11 | Solder Pads | ST |
| SGK-SD3B-K350U-PC23-E | 350 | Shear torque, 2 gageson one carrier 350Ω | 15 | Solder Pads | AL | ||||
10.2mm | SGK-SDH3B-K350U-PC11-E | 1000 | 3.2 (0.126) | 3.38 (0.133) | 10.2 (0.4) | 9.4 (0.37) | 11 | Solder Pads | ST |
| SGK-SDH3B-K350U-PC23-E | 1000 | Shear half bridge with common lead/pad 350Ω | 15 | Solder Pads | AL | ||||
*Maximum permitted bridge energizing voltage (Vrms).
ST=Steel
AL=Aluminum

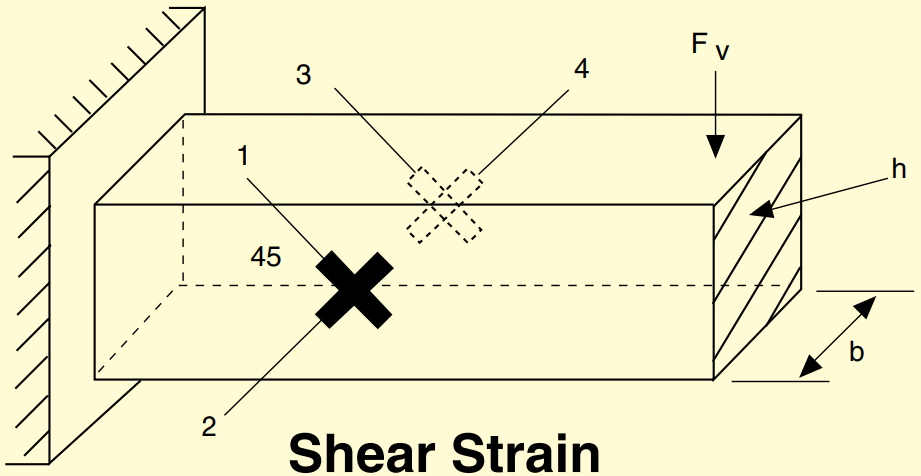

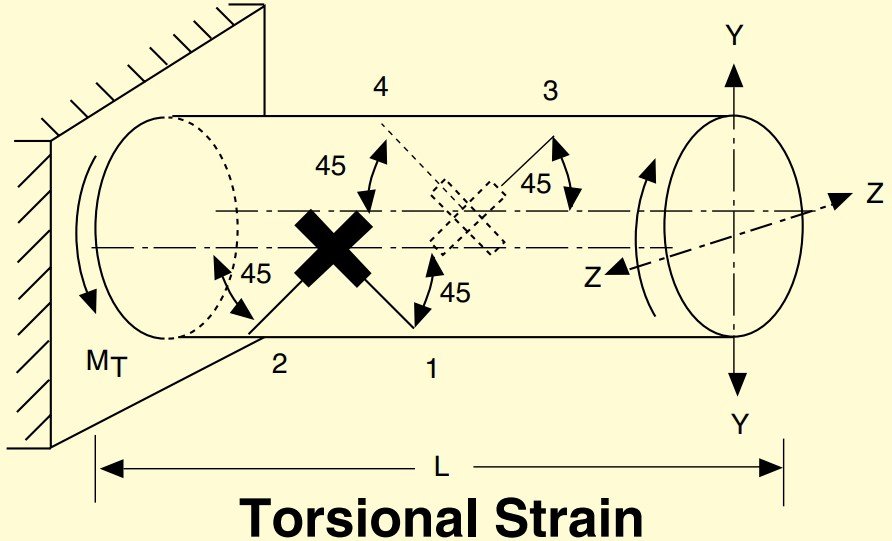

典型应变片安装
