线性图案应变计用于测量单个方向的应变。它们用于实验应力分析和传感器应用。应变计模式显示在表格的左侧。“箭头”表示量具的主应力方向。OMEGA提供微型线性图案，用于应力集中或高梯度区域以及更大尺寸的应变测量。
焊盘/带状引线既在栅极的一端提供，又在栅极的两端各提供一根。提供宽或窄的线性网格模式。
列出了图案量具网格长度（A）和宽度（B）以及矩阵或载体长度（C）和宽度（D）的尺寸。这些图案包括对齐三角形。
注意：要确定应变计是否具有与钢或铝相匹配的温度特性，请参阅标有“COMP”的列，这是补偿的缩写，“ST”表示钢，“AL”表示铝。请参阅标有“BTP”的列，了解附件可粘合接线板型号。

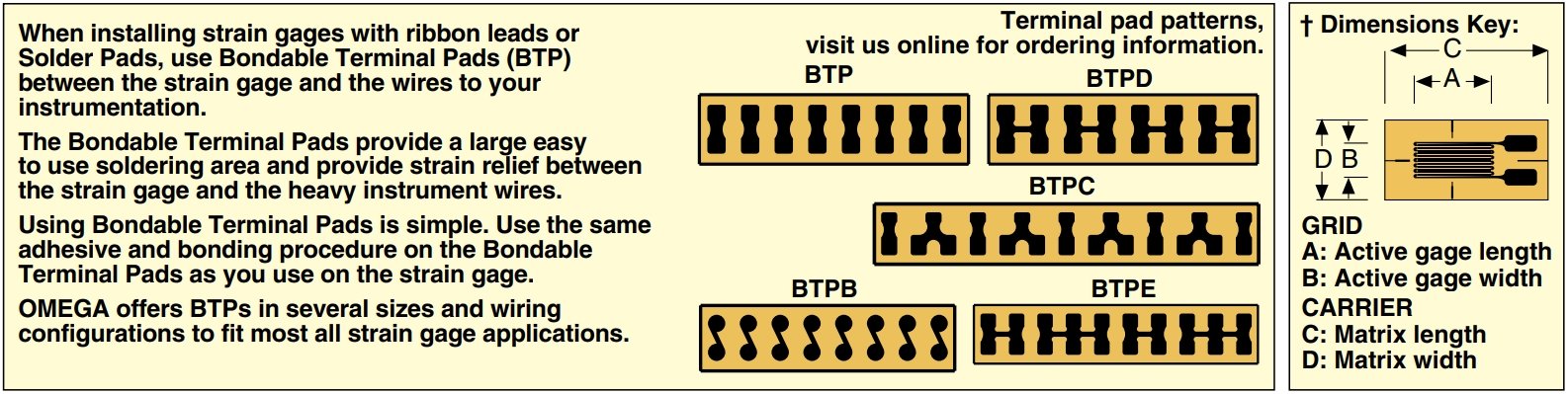

可粘合端子焊盘
OMEGA应变片订货信息：
| 引线 未显示 | 型号(5件装) | NOM. RESIS- TANCE(Ω) | 尺寸mm(inch)† | Max V* (Vrms) | TERMINATION | TEMP COMP | COMP PAD | |||
| grid | carrier | |||||||||
| A | B | C | D | |||||||
尺寸4mm | SGT-1/350-TY11 | 350 | 1.0 | 1.8 | 4.0 | 3.0 | 4.5 | Ribbon Leads | ST | BPT-1 |
| SGT-1/350-TY13 | 350 | (0.039) | (0.071) | (0.157) | (0.118) | 6 | Ribbon Leads | AL | ||
| SGT-1/350-TY41 | 350 | Miniature linear pattern,measurement of stress concentration 350 Ω | 4.5 | Solder Pads | ST | |||||
| SGT-1/350-TY43 | 350 | 6 | Solder Pads | AL | ||||||
尺寸5.6mm | SGT-1A/1000-TY11 | 1000 | 1.5 | 2.9 | 5.6 | 4.1 | 11 | Ribbon Leads | ST | BPT-1 |
| SGT-1A/1000-TY13 | 1000 | (0.059) | (0.114) | (0.22) | (0.161) | 15 | Ribbon Leads | AL | ||
| SGT-1A/1000-TY41 | 1000 | Miniature linear pattern, grid width, wide, higher resistance, reduced heat generation 1000 Ω | 11 | Solder Pads | ST | |||||
| SGT-1A/1000-TY43 | 1000 | 15 | Solder Pads | AL | ||||||
尺寸6.4mm | SGT-2C/350-TY11 | 350 | 1.5 | 4.6 | 6.4 | 6.4 | 9 | Ribbon Leads | ST | BPT-2 |
| SGT-2C/350-TY13 | 350 | (0.059) | (0.181) | (0.252) | (0.252) | 12 | Ribbon Leads | AL | ||
| SGT-2C/350-TY41 | 350 | Miniature linear pattern, grid width, extra wide 350 Ω | 9 | Solder Pads | ST | |||||
| SGT-2C/350-TY43 | 350 | 12 | Solder Pads | AL | ||||||
尺寸8.8mm | SGT-3E/350-TY11 | 350 | 3.0 | 3.1 | 8.8 | 5.5 | 10 | Ribbon Leads | ST | BPT-2 |
| SGT-3E/350-TY13 | 350 | (0.118) | (0.122) | (0.346) | (0.217) | 14 | Ribbon Leads | AL | ||
| SGT-3E/350-TY41 | 350 | Small linear pattern, lead/pad At each side of grid 350 Ω | 10 | Solder Pads | ST | |||||
| SGT-3E/350-TY43 | 350 | 14 | Solder Pads | AL | ||||||
ST=Steel
AL=Aluminum
*至大允许电桥通电电压（Vrms）。
注：有关应变计附件，请留言所需产品
订货信息：
| 引线 未显示 | 型号(5件装) | NOM. RESIS- TANCE(Ω) | 尺寸mm(inch)† | Max V* (Vrms) | TERMINATION | TEMP COMP | COMP PAD | |||
| grid | carrier | |||||||||
| A | B | C | D | |||||||
尺寸7.5mm | SGT-3F/350-TY11 | 350 | 3.2 | 3.2 | 7.5 | 4.6 | 4.5 | Ribbon Leads | ST | BPT-3 |
| SGT-3F/350-TY13 | 350 | (0.126) | (0.126) | (0.295) | (0.181) | 6 | Ribbon Leads | AL | ||
| SGT-3F/350-TY41 | 350 | Medium linear pattern 350 Ω | 10 | Solder Pads | ST | |||||
| SGT-3F/350-TY43 | 350 | 14 | Solder Pads | AL | ||||||
尺寸8.6mm | SGT-3J/350-TY11 | 350 | 3.0 | 2.1 | 8.6 | 3.5 | 8 | Ribbon Leads | ST | BPT-3 |
| SGT-3J/350-TY13 | 350 | (0.118) | (0.083) | (0.339) | (0.138) | 12 | Ribbon Leads | AL | ||
| SGT-3J/350-TY41 | 350 | Medium linear pattern, lead/pad At each end of grid 350 Ω | 8 | Solder Pads | ST | |||||
| SGT-3J/350-TY43 | 350 | 12 | Solder Pads | AL | ||||||
尺寸6.6mm | SGT-3S/350-TY11 | 350 | 3.0 | 1.7 | 6.6 | 3.3 | 7.5 | Ribbon Leads | ST | BPT-3 |
| SGT-3S/350-TY13 | 350 | (0.118) | (0.067) | (0.26) | (0.13) | 10.5 | Ribbon Leads | AL | ||
| SGT-3S/350-TY41 | 350 | Medium linear pattern, grid width, narrow 350 Ω | 7.5 | Solder Pads | ST | |||||
| SGT-3S/350-TY43 | 350 | 10.5 | Solder Pads | AL | ||||||
尺寸7mm | SGT-3N/350-TY11 | 350 | 3.2 | 2.5 | 7.0 | 4.0 | 8 | Ribbon Leads | ST | BPT-3 |
| SGT-3N/350-TY13 | 350 | (0.118) | (0.067) | (0.28) | (0.157) | 13 | Ribbon Leads | AL | ||
| SGT-3N/350-TY41 | 350 | Medium linear pattern, both leads/ pads at one end of grid 350 Ω | 8 | Solder Pads | ST | |||||
| SGT-3N/350-TY43 | 350 | 13 | Solder Pads | AL | ||||||
ST=Steel
AL=Aluminum
*至大允许电桥通电电压（Vrms）。
注：有关应变计附件，请留言所需产品
