OMEGA应变片有多种型号可供选择大多数应变测量应用。其坚固的结构和灵活性使它们适用于高精度的静态和动态测量。测量网格通过蚀刻形成康铜箔，然后将其完全密封在载体中由聚酰亚胺薄膜组成的介质。

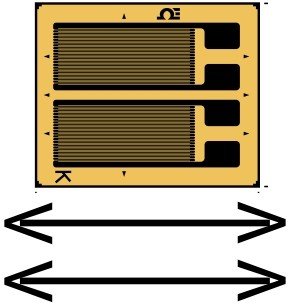

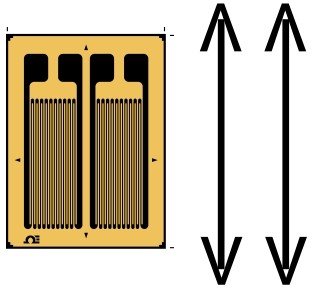

用于监测弯曲应变双线性模式的精密应变计
应变片订货信息：
| 图片 | 型号(5件装) | NOM. RESIS- TANCE(Ω) | 尺寸mm(inch)† | max PERMITTED BRIDGE ENERGIZING VOLTAGE(Vrms) | TERMINATION | TEMP TERM | COMP PAD | |||
| grid | carrier | |||||||||
| A | B | C | D | |||||||
实际尺寸5.5mm | SGD-2/350-DY11 | 350 | 2.00 (0.079) | 2.00 (0.079) | 5.50 (0.217) | 5.90 (0.232) | 6.5 | Ribbon Leads | ST | BPT-2 |
| SGD-2/350-DY13 | 350 | 6.5 | Ribbon Leads | AL | ||||||
| SGD-2/350-DY41 | 350 | Miniature parallel dual grid pattern, bending strain350 Ω | 9.5 | Solder Pads | ST | |||||
| SGD-2/350-DY43 | 350 | 9.5 | Solder Pads | Al | ||||||
实际尺寸7.5mm | SGD-2/1000-DY11 | 1000 | 2.10 (0.083) | 2.70 (0.106) | 7.50 (0.295) | 8.00 (0.315) | 13 | Ribbon Leads | ST | BPT-2 |
| SGD-2/1000-DY13 | 1000 | 18 | Ribbon Leads | A | ||||||
| SGD-2/1000-DY41 | 1000 | Miniature parallel dual grid pattern, bending strain 1000Ω | 13 | Solder Pads | ST | |||||
| SGD-2/1000-DY43 | 1000 | 18 | Solder Pads | AL | ||||||
实际尺寸6mm | SGD-3/350-DY11 | 350 | 3.00 (0.118) | 1.60 (0.063) | 6.00 (0.236) | 4.10 (0.161) | 7.5 | Ribbon Leads | ST | BPT-2 |
| SGD-3/350-DY13 | 350 | 10 | Ribbon Leads | AL | ||||||
| SGD-3/350-DY41 | 350 | Medium parallel dual grid pattern, grid width narrow, bending strain 350Ω | 7.5 | Solder Pads | ST | |||||
| SGD-3/350-DY43 | 350 | 10 | Solder Pads | AL | ||||||
实际尺寸7.4mm | SGD-3/1000-DY11 | 1000 | 3.00 (0.118) | 3.40 (0.134) | 7.40 (0.291) | 8.90 (0.350) | 17 | Ribbon Leads | ST | BPT-3 |
| SGD-3/1000-DY13 | 1000 | 25 | Ribbon Leads | AL | ||||||
| SGD-3/1000-DY41 | 1000 | Medium parallel dual grid pattern, bending strain, higher resistance, reduced heat generation 1000Ω | 17 | Solder Pads | ST | |||||
| SGD-3/1000-DY43 | 1000 | 25 | Solder Pads | AL | ||||||
实际尺寸11.8mm | SGD-7/1000-DY11 | 1000 | 7.00 (0.276) | 3.60 (0.142) | 11.80 (0.465) | 9.70 (0.382) | 27 | Ribbon Leads | ST | BPT-4 |
| SGD-7/1000-DY13 | 1000 | 40 | Ribbon Leads | AL | ||||||
| SGD-7/1000-DY41 | 1000 | Large parallel dual grid pattern, bending strain, higher resistance, reduced heat generation 1000Ω | 27 | Solder Pads | ST | |||||
| SGD-7/1000-DY43 | 1000 | 40 | Solder Pads | AL | ||||||
实际尺寸11.4mm | SGD-7/350-DY11 | 350 | 6.50 (0.256) | 3.10 (0.122) | 11.40 (0.449) | 8.40 (0.331) | 15 | Ribbon Leads | ST | BPT-4 |
| SGD-7/350-DY13 | 350 | 40 | Ribbon Leads | AL | ||||||
| SGD-7/350-DY41 | 350 | Large parallel dual grid pattern, bending strain, grid width narrow 350Ω | 15 | Solder Pads | ST | |||||
| SGD-7/350-DY43 | 350 | 40 | Solder Pads | AL | ||||||
ST = Steel
AL = Aluminum
*至大允许电桥通电电压(Vrms)
