OMEGADYNE提供Karma K系列双线性应变计模式。这些应变计可用于弯曲梁换能器设计，您可以接触到梁。每个载体都有2个独立的平行线性应变片。精密的Karma材料具有出色的温度和疲劳特性。K系列量具具有电镀焊盘，使焊接变得快速而简单。不需要特殊的焊料或助焊剂。
OMEGA应变片订货信息：
| 引线 未显示 | 型号(5件装) | NOM. RESIS- TANCE(Ω) | 尺寸mm(inch)† | Max V* (Vrms) | TERMINATION | TEMP COMP | |||
| grid | carrier | ||||||||
| A | B | C | D | ||||||
6mm | SGK-D2A-K350Q-PC11-E | 350 | 2.0 (0.079) | 2.5 (0.098) | 6.0 (0.24) | 6.2 (0.24) | 7.5 | Solder Pads | ST |
| SGK-D2A-K350Q-PC23-E | 350 | Small dual parallel gridfor bending strain 350Ω | 10.5 | Solder Pads | AL | ||||
7mm | SGK-D3A-K350U-PC11-E | 350 | 3.2 (0.126) | 1.6 (0.63) | 7.0 (0.28) | 5.2 (0.2) | 7.5 | Solder Pads | ST |
| SGK-D3A-K350U-PC23-E | 350 | Medium, dual parallel grid pattern for bending strain 350 Ω | 10.5 | Solder Pads | AL | ||||
7.2mm | SGK-D3B-K350Q-PC11-E | 350 | 3.2 (0.126) | 2.5 (0.098) | 7.2 (0.29) | 7.2 (0.28) | 9 | Solder Pads | ST |
| SGK-D3B-K350Q-PC23-E | 350 | Medium, dual parallel grid pattern for bending strain 350 Ω | 13 | Solder Pads | AL | ||||
10.6mm | SGK-D6A-K350S-PC11-E | 350 | 6.3 (0.248) | 2.5 (0.098) | 10.6 (0.42) | 7.0 (0.28) | 14 | Solder Pads | ST |
| SGK-D6A-K350S-PC23-E | 350 | Large, dual parallel grid patternfor bending strain 350Ω | 19 | Solder Pads | AL | ||||
10.6mm | SGK-D6A-K1000S-PC11-E | 1000 | 6.3 (0.248) | 2.5 (0.098) | 10.6 (0.42) | 7.0 (0.28) | 22 | Solder Pads | ST |
| SGK-D6A-K1000S-PC23-E | 1000 | Large, dual parallel grid patternfor bending strain, higher resistance, reduced heat generation 1000Ω | 32 | Solder Pads | AL | ||||
ST = Steel
AL = Aluminum
注：可定制，有配件另售

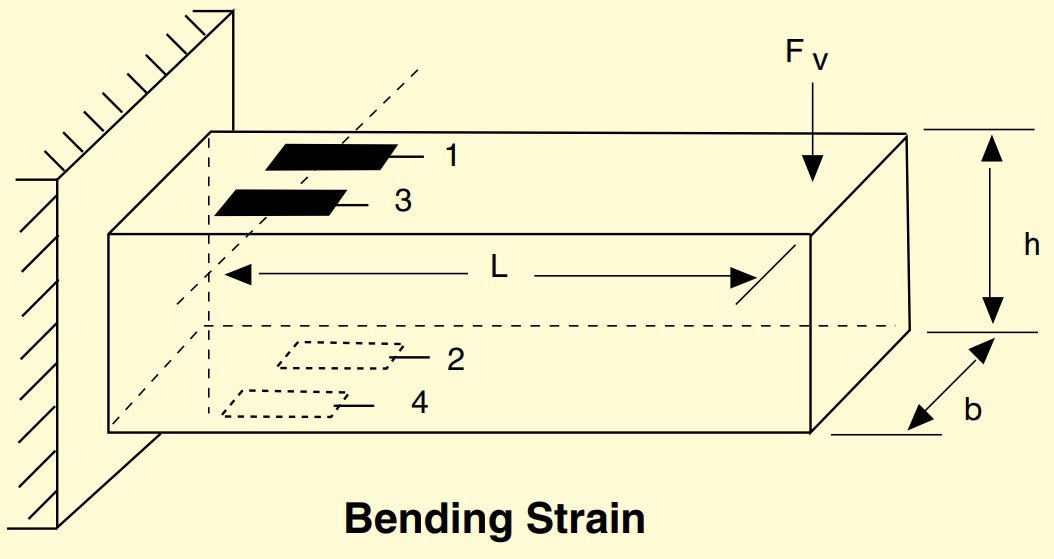

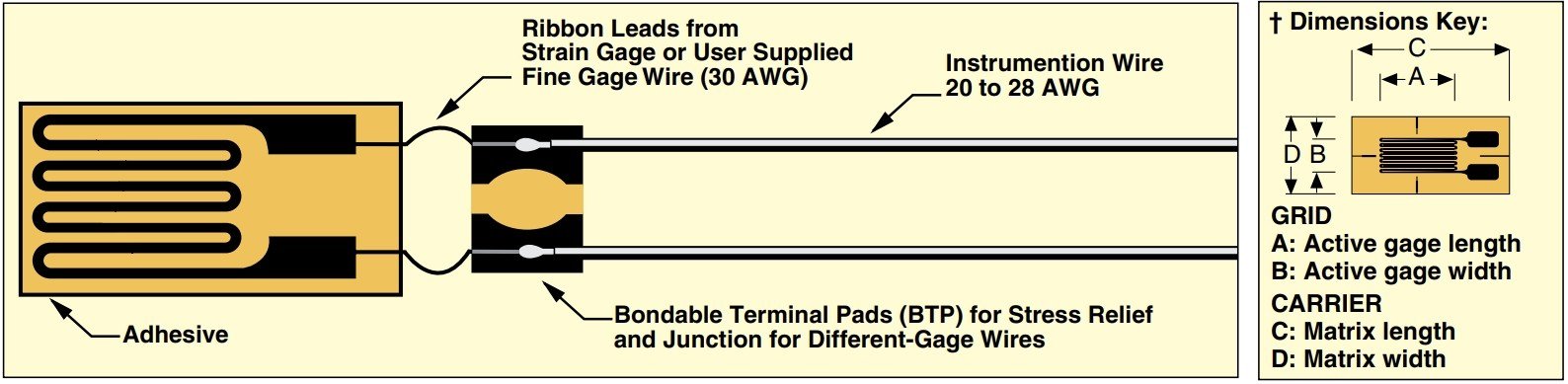

典型应变片安装
