OMEGA应变片有多种型号可供选择大多数应变测量应用。其坚固的结构和灵活性使它们适用于高精度的静态和动态测量。测量网格通过蚀刻形成康铜箔，然后将其完全密封在载体中由聚酰亚胺薄膜组成的介质。
应变片订货信息：
| 显示导线 | 型号(5件/包) | NOM.RESIS-TANCE(Ω) | 尺寸mm(inch)† | maxV*(Vrms) | 末端 | TEMPCOMP | TERMPAD | |||
| GRID | CARRIER | |||||||||

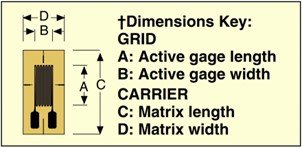

| A | B | C | D | |||||||

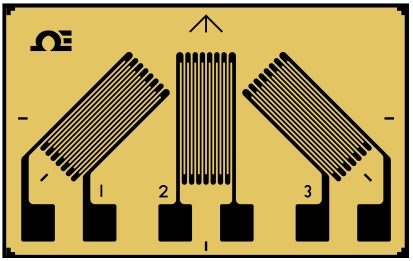

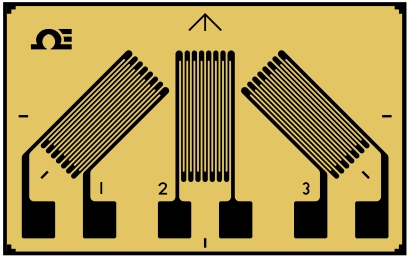

实际尺寸10.5mm | SGD-1/120-RY21 | 120 | 1.6(0.063) | 1.7(0.067) | 6.8(0.268) | 10.5(0.413) | 3 | Ribbon Leads | ST | BPT-1 |
| SGD-1/120-RY23 | 120 | 4 | Ribbon Leads | AL | ||||||
| SGD-1/120-RY81 | 120 | Miniature delta, single plane rosette,compact geometry 120 Ω | 3 | Solder Pads | ST | |||||
| SGD-1/120-RY83 | 120 | 4 | Solder Pads | AL | ||||||
实际尺寸10.5mm | SGD-1/350-RY21 | 350 | 1.6(0.063) | 2.1(0.083) | 6.8(0.268) | 10.5(0.413) | 6 | Ribbon Leads | ST | BPT-1 |
| SGD-1/350-RY23 | 350 | 8.5 | Ribbon Leads | AL | ||||||
| SGD-1/350-RY81 | 350 | Miniature delta, single plane rosette,compact geometry 350 Ω | 6 | Solder Pads | ST | |||||
| SGD-1/350-RY83 | 350 | 8.5 | Solder Pads | AL | ||||||
实际尺寸10.5mm | SGD-3/120-RY21 | 120 | 2.0 (0.079) | 2.0(0.079) | 6.8(0.268) | 10.5(0.413) | 4.5 | Ribbon Leads | ST | BPT-1 |
| SGD-3/120-RY23 | 120 | 6 | Ribbon Leads | AL | ||||||
| SGD-3/120-RY81 | 120 | Medium delta, single plane rosette,compact geometry 120 Ω | 4.5 | Solder Pads | ST | |||||
| SGD-3/120-RY83 | 120 | 6 | Solder Pads | AL | ||||||
实际尺寸13mm | SGD-3/350-RY21 | 350 | 3.0(0.118) | 2.1(0.083) | 8.3(0.327) | 13(0.51) | 8.5 | Ribbon Leads | ST | BPT-2 |
| SGD-3/350-RY23 | 350 | 12 | Ribbon Leads | AL | ||||||
| SGD-3/350-RY81 | 350 | Medium rectangular, single plane rosette,compact geometry 350Ω | 8.5 | Solder Pads | ST | |||||
| SGD-3/350-RY83 | 350 | 12 | Solder Pads | AL | ||||||
实际尺寸13mm | SGD-3/350-RY21 | 350 | 3.0(0.118) | 2.1(0.083) | 8.3(0.327) | 13(0.51) | 8.5 | Ribbon Leads | ST | BPT-2 |
| SGD-3/350-RY23 | 350 | 12 | Ribbon Leads | AL | ||||||
| SGD-3/350-RY81 | 350 | Medium delta, single plane rosette,compact geometry 350 Ω | 8.5 | Solder Pads | ST | |||||
| SGD-3/350-RY83 | 350 | 12 | Solder Pads | AL | ||||||
实际尺寸21.4mm | SGD-6/120-RY21 | 120 | 6.0(0.236) | 3.2(0.126) | 13.4(0.528) | 21.4(0.84) | 8.5 | Ribbon Leads | ST | BPT-3 |
| SGD-6/120-RY23 | 120 | 12 | Ribbon Leads | AL | ||||||
| SGD-6/120-RY81 | 120 | Large delta, single plane rosette,compact geometry 120 Ω | 8.5 | Solder Pads | ST | |||||
| SGD-6/120-RY83 | 120 | 12 | Solder Pads | AL | ||||||
实际尺寸21.4mm | SGD-6/350-RY21 | 350 | 6.0(0.236) | 3.1(0.122) | 13.4(0.528) | 21.4(0.84) | 14 | Ribbon Leads | ST | BPT-3 |
| SGD-6/350-RY23 | 350 | 20 | Ribbon Leads | AL | ||||||
| SGD-6/350-RY81 | 350 | Large delta, single plane rosette,compact geometry 350 Ω | 14 | Solder Pads | ST | |||||
| SGD-6/350-RY83 | 350 | 20 | Solder Pads | AL | ||||||
ST = Steel
AL = Aluminum
注：可定制，有配件另售
