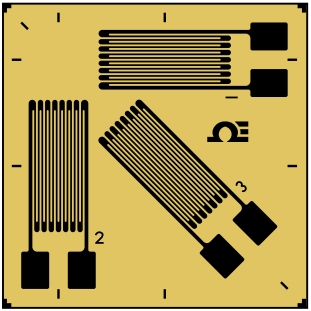

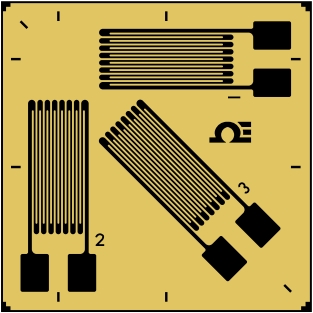

OMEGA应变片有多种型号可供选择大多数应变测量应用。其坚固的结构和灵活性使它们适用于高精度的静态和动态测量。测量网格通过蚀刻形成康铜箔，然后将其完全密封在载体中由聚酰亚胺薄膜组成的介质。
应变片订货信息：
| 未显示导线 | 型号(10件/包) | NOM. RESIS- TANCE(Ω) | 尺寸mm(inch)† | max V* (Vrms) | 末端 | TEMP COMP | TERM PAD | |||
| GRID | CARRIER | |||||||||
| A | B | C | D | |||||||
实际尺寸9.3mm | SGD-1/120-RYT21 | 120 | 1.6 (0.063) | 1.7 (0.067) | 6.8 (0.268) | 10.5 (0.413) | 3 | Ribbon Leads | ST | BPT-1 |
| SGD-1/120-RYT23 | 120 | 4 | Ribbon Leads | AL | ||||||
| SGD-1/120-RYT81 | 120 | Small corner rectangular 3-element rosette120 Ω | 3 | Solder Pads | ST | |||||
| SGD-1/120-RYT83 | 120 | 4 | Solder Pads | AL | ||||||
实际尺寸9.3mm | SGD-1/350-RYT21 | 350 | 1.6 (0.063) | 2.1 (0.083) | 6.8 (0.268) | 10.5 (0.413) | 6 | Ribbon Leads | ST | BPT-1 |
| SGD-1/350-RYT23 | 350 | 8.5 | Ribbon Leads | AL | ||||||
| SGD-1/350-RYT81 | 350 | Small corner rectangular 3-element rosette350 Ω | 6 | Solder Pads | ST | |||||
| SGD-1/350-RYT83 | 350 | 8.5 | Solder Pads | AL | ||||||
实际尺寸11mm | SGD-3/120-RYT21 | 120 | 3.0 (0.118) | 1.7 (0.067) | 8.3 (0.327) | 13 (0.51) | 4.5 | Ribbon Leads | ST | BPT-2 |
| SGD-3/120-RYT23 | 120 | 6 | Ribbon Leads | AL | ||||||
| SGD-3/120-RYT81 | 120 | Medium corner rectangular 3-element rosette 120 Ω | 4.5 | Solder Pads | ST | |||||
| SGD-3/120-RYT83 | 120 | 6 | Solder Pads | AL | ||||||
实际尺寸11mm | SGD-3/350-RYT21 | 350 | 3.0 (0.118) | 2.1 (0.083) | 8.3 (0.327) | 13 (0.51) | 8.5 | Ribbon Leads | ST | BPT-2 |
| SGD-3/350-RYT23 | 350 | 12 | Ribbon Leads | AL | ||||||
| SGD-3/350-RYT81 | 350 | Medium corner rectangular 3-element rosette 350 Ω | 8.5 | Solder Pads | ST | |||||
| SGD-3/350-RYT83 | 350 | 12 | Solder Pads | AL | ||||||
实际尺寸16.3mm | SGD-6/120-RYT21 | 120 | 6.0 (0.236) | 3.2 (0.126) | 13.4 (0.528) | 21.4 (0.84) | 8.5 | Ribbon Leads | ST | BPT-3 |
| SGD-6/120-RYT23 | 120 | 12 | Ribbon Leads | AL | ||||||
| SGD-6/120-RYT81 | 120 | Large corner rectangular 3-element rosette 120 Ω | 8.5 | Solder Pads | ST | |||||
| SGD-6/120-RYT83 | 120 | 12 | Solder Pads | AL | ||||||
实际尺寸16.3mm | SGD-6/350-RYT21 | 350 | 6.0 (0.236) | 3.1 (0.122) | 13.4 (0.528) | 21.4 (0.84) | 14 | Ribbon Leads | ST | BPT-3 |
| SGD-6/350-RYT23 | 350 | 20 | Ribbon Leads | AL | ||||||
| SGD-6/350-RYT81 | 350 | Large corner rectangular 3-element rosette 350 Ω | 14 | Solder Pads | ST | |||||
| SGD-6/350-RYT83 | 350 | 20 | Solder Pads | AL | ||||||
ST=Steel
AL=Aluminum
注：可定制，有配件另售
