美国OMEGA 3元件60º等角应变片

产品时间：2025-08-22 11:35

简要描述：

原装进口美国OMEGA 3元件60º等角应变片，有多种型号可供选择大多数应变测量应用。其坚固的结构和灵活性使它们适用于高精度的静态和动态测量。测量栅通过蚀刻形成康铜箔，然后将其完全密...

OMEGA应变片有多种型号可供选择大多数应变测量应用。其坚固的结构和灵活性使它们适用于高精度的静态和动态测量。测量栅通过蚀刻形成康铜箔，然后将其完全密封在载体中由聚酰亚胺薄膜组成的介质。

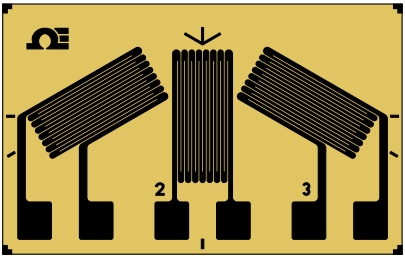

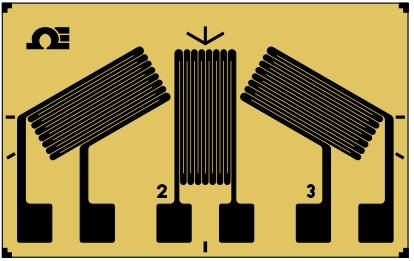

美国OMEGA等角应变片

应变片订货信息：

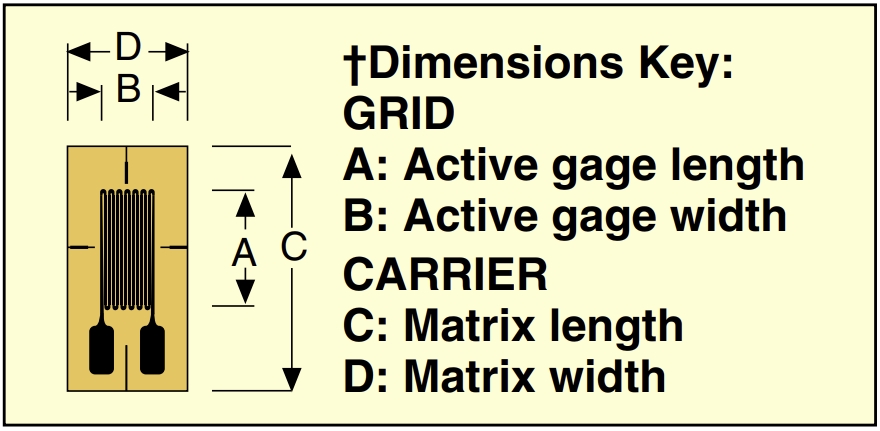

未显示导线	型号(5件/包)	NOM. RESIS- TANCE(Ω)	尺寸mm(inch)†				max V* (Vrms)	末端	TEMP COMP	TERM PAD
			GRID		CARRIER
			A	B	C	D
实际尺寸10.5mm	SGD-1/120-RY621	120	1.6 (0.063)	1.7 (0.067)	6.8 (0.268)	10.5 (0.413)	3	Ribbon Leads	ST	BPT-1
	SGD-1/120-RY623	120	1.6 (0.063)	1.7 (0.067)	6.8 (0.268)	10.5 (0.413)	4	Ribbon Leads	AL
	SGD-1/120-RY681	120	Miniature delta, single plane rosette, compact geometry 120 Ω				3	SolderPads	ST
	SGD-1/120-RY683	120					4	SolderPads	AL
实际尺寸10.5mm	SGD-1/350-RY621	350	1.6 (0.063)	2.1 (0.083)	6.8 (0.268)	10.5 (0.413)	6	Ribbon Leads	ST	BPT-1
	SGD-1/350-RY623	350	1.6 (0.063)	2.1 (0.083)	6.8 (0.268)	10.5 (0.413)	8.5	Ribbon Leads	AL
	SGD-1/350-RY681	350	Miniature delta, single plane rosette, compact geometry 350 Ω				6	SolderPads	ST
	SGD-1/350-RY683	350					8.5	SolderPads	AL
实际尺寸13mm	SGD-3/120-RY621	120	3.0 (0.118)	1.7 (0.067)	8.3 (0.327)	13 (0.51)	4.5	Ribbon Leads	ST	BPT-2
	SGD-3/120-RY623	120	3.0 (0.118)	1.7 (0.067)	8.3 (0.327)	13 (0.51)	6	Ribbon Leads	AL
	SGD-3/120-RY681	120	Medium delta, single plane rosette, compact geometry 120 Ω				4.5	SolderPads	ST
	SGD-3/120-RY683	120	Medium delta, single plane rosette, compact geometry 120 Ω				6	SolderPads	AL
实际尺寸13mm	SGD-3/350-RY621	350	3.0 (0.118)	2.1 (0.083)	8.3 (0.327)	13 (0.51)	8.5	Ribbon Leads	ST	BPT-2
	SGD-3/350-RY623	350	3.0 (0.118)	2.1 (0.083)	8.3 (0.327)	13 (0.51)	12	Ribbon Leads	AL
	SGD-3/350-RY681	350	Medium delta, single plane rosette, compact geometry 350 Ω				8.5	SolderPads	ST
	SGD-3/350-RY683	350	Medium delta, single plane rosette, compact geometry 350 Ω				12	SolderPads	AL
实际尺寸21.4mm	SGD-6/120-RY621	120	6.0 (0.236)	3.2 (0.126)	13.4 (0.528)	21.4 (0.84)	8.5	Ribbon Leads	ST	BPT-3
	SGD-6/120-RY623	120	6.0 (0.236)	3.2 (0.126)	13.4 (0.528)	21.4 (0.84)	12	Ribbon Leads	AL
	SGD-6/120-RY681	120	Large delta, single plane rosette, compact geometry 120 Ω				8.5	SolderPads	ST
	SGD-6/120-RY683	120	Large delta, single plane rosette, compact geometry 120 Ω				12	SolderPads	AL
实际尺寸21.4mm	SGD-6/350-RY621	350	6.0 (0.236)	3.1 (0.122)	13.4 (0.528)	21.4 (0.84)	14	Ribbon Leads	ST	BPT-3
	SGD-6/350-RY623	350	6.0 (0.236)	3.1 (0.122)	13.4 (0.528)	21.4 (0.84)	20	Ribbon Leads	AL
	SGD-6/350-RY681	350	Large delta, single plane rosette, compact geometry 350 Ω				14	SolderPads	ST
	SGD-6/350-RY683	350	Large delta, single plane rosette, compact geometry 350 Ω				20	Solder Pads	AL

ST=Steel

AL=Aluminum
