美国OMEGA 2元件90º双轴应变计

产品时间：2025-08-22 14:10

简要描述：

原装进口美国OMEGA 2元件90º双轴应变计，每包5件装价格实惠，通用应变计，非常灵活，机械强度高，弯曲半径小，带状引线或焊盘端接，清晰的对齐标记，使用冷固化胶或热固化胶粘剂...

OMEGA应变计有多种型号可供选择，可覆盖大多数应变测量应用。其坚固的结构和灵活性使其适用于高精度的静态和动态测量。

应变计订货信息：

未显示导线	型号(5件装)	NOM. RESIS- TANCE (Ω)	尺寸mm(inch)†				Max V* (Vrms)	Termination	TEMP COMP	TERM PAD
			grid		carrier
			A	B	C	D

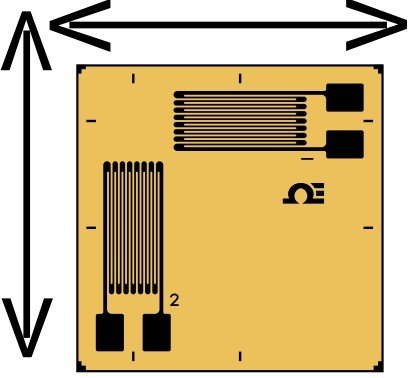

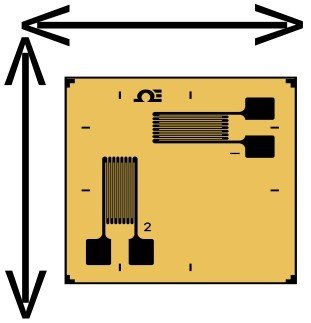

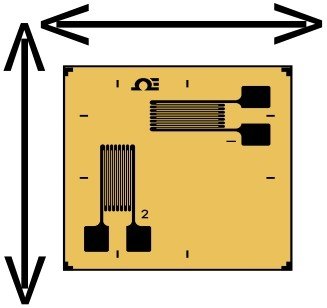

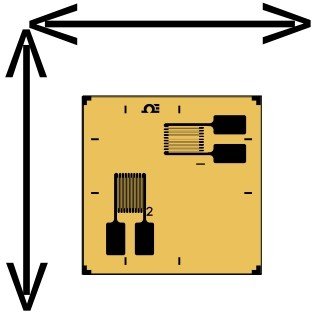

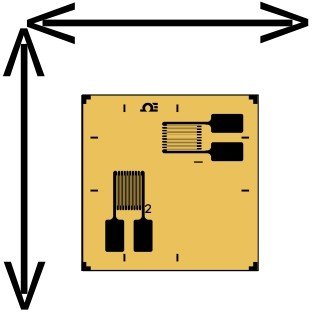

实际尺寸:5.6mm	SGD-1/120-RYB21	120	1.6 (0.063)	1.7 (0.067)	9.3 (0.37)	9.3 (0.37)	3	Ribbon Leads	ST	BTP-1
	SGD-1/120-RYB23	120	1.6 (0.063)	1.7 (0.067)	9.3 (0.37)	9.3 (0.37)	4	Ribbon Leads	AL
	SGD-1/120-RYB81	120	Small corner Tee Rosette 120Ω				3	Solder Pads	ST
	SGD-1/120-RYB83	120	Small corner Tee Rosette 120Ω				4	Solder Pads	AL
实际尺寸:5.6mm	SGD-1/350-RYB21	350	1.6 (0.063)	1.7 (0.067)	9.3 (0.37)	9.3 (0.37)	6	Ribbon Leads	ST	BTP-1
	SGD-1/350-RYB23	350	1.6 (0.063)	1.7 (0.067)	9.3 (0.37)	9.3 (0.37)	8.5	Ribbon Leads	AL
	SGD-1/350-RYB81	350	Small corner Tee Rosette 350Ω				6	Solder Pads	ST
	SGD-1/350-RYB83	350	Small corner Tee Rosette 350Ω				8.5	Solder Pads	AL
实际尺寸:7.1mm	SGD-3/120-RYB21	120	3.00 (0.118)	1.7 (0.067)	11.0 (0.43)	11.0 (0.43)	4.5	Ribbon Leads	ST	BTP-2
	SGD-3/120-RYB23	120	3.00 (0.118)	1.7 (0.067)	11.0 (0.43)	11.0 (0.43)	6	Ribbon Leads	AL
	SGD-3/120-RYB81	120	Medium corner Tee Rosette 120Ω				4.5	Solder Pads	ST
	SGD-3/120-RYB83	120	Medium corner Tee Rosette 120Ω				6	Solder Pads	AL
实际尺寸:7.1mm	SGD-3/350-RYB21	350	3.0 (0.118)	2.1 (0.83)	11.0 (0.43)	11.0 (0.43)	8.5	Ribbon Leads	ST	BTP-3
	SGD-3/350-RYB23	350	3.0 (0.118)	2.1 (0.83)	11.0 (0.43)	11.0 (0.43)	12	Ribbon Leads	AL
	SGD-3/350-RYB81	35	Medium corner Tee Rosette 350Ω				8.5	Solder Pads	ST
	SGD-3/350-RYB83	350	Medium corner Tee Rosette 350Ω				12	Solder Pads	AL
实际尺寸:11.4mm	SGD-6/120-RYB21	120	6.0 (0.236)	3.2 (0.126)	16.3 (0.64)	16.3 (0.64)	8.5	Ribbon Leads	ST	BTP-4
	SGD-6/120-RYB23	120	6.0 (0.236)	3.2 (0.126)	16.3 (0.64)	16.3 (0.64)	12	Ribbon Leads	AL
	SGD-6/120-RYB81	120	Large corner Tee Rosette 120Ω				8.5	Solder Pads	ST
	SGD-6/120-RYB83	120	Large corner Tee Rosette 120Ω				12	Solder Pads	AL
实际尺寸:11.4mm	SGD-6/350-RYB21	350	6.0 (0.236)	3.1 (0.122)	16.3 (0.64)	16.3 (0.64)	14	Ribbon Leads	ST	BTP-4
	SGD-6/350-RYB23	350	6.0 (0.236)	3.1 (0.122)	16.3 (0.64)	16.3 (0.64)	20	Ribbon Leads	AL
	SGD-6/350-RYB81	350	Large corner Tee Rosette 350Ω				14	Solder Pads	ST
	GD-6/350-RYB83	350	Large corner Tee Rosette 350Ω				20	Solder Pads	AL

ST=Steel

AL=Aluminum
