美国OMEGA双轴应变片

产品时间：2025-08-22 14:07

简要描述：

原装进口美国OMEGA双轴应变片，每包5件装，轴向应变的X-Y方向图，非常灵活，机械强度高，弯曲半径小，温度范围广，清晰的对齐标记，用冷固化或热固化胶粘剂粘贴...

0/90º堆叠三通量规模式，该系列应变片用于测量轴向应变

OMEGA应变片订货信息：

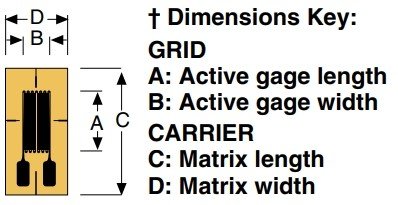

未显示导线	型号(5件装)	NOM. RESIS- TANCE (Ω)	尺寸mm(inch)†				Max V* (Vrms)	Termination	TEMP COMP	TERM PAD
			grid		carrier
			A	B	C	D
实际尺寸:5.6mm	SGD-2/120-XY11	120	2.00 (0.079)	1.10 (0.043)	5.60 (0.220)	5.60 (0.220)	3	Ribbon Leads	ST	BTP-2
	SGD-2/120-XY13	120	2.00 (0.079)	1.10 (0.043)	5.60 (0.220)	5.60 (0.220)	4	Ribbon Leads	AL
	SGD-2/120-XY41	120	Small Tee stacked rosette pattern 120 Ω				3	Solder Pads	ST
	SGD-2/120-XY43	120	Small Tee stacked rosette pattern 120 Ω				4	Solder Pads	AL
实际尺寸:5.6mm	SGD-2/350-XY11	350	2.00 (0.079)	1.10 (0.043)	5.60 (0.220)	5.60 (0.220)	5	Ribbon Leads	ST	BTP-2
	SGD-2/350-XY13	350	2.00 (0.079)	1.10 (0.043)	5.60 (0.220)	5.60 (0.220)	7	Ribbon Leads	AL
	SGD-2/350-XY41	350	Small Tee stacked rosette pattern 350 Ω				5	Solder Pads	ST
	SGD-2/350-XY43	350	Small Tee stacked rosette pattern 350 Ω				7	Solder Pads	AL
实际尺寸:7.1mm	SGD-3/120-XY11	120	3.00 (0.118)	1.70 (0.067)	7.10 (0.280)	7.10 (0.280)	4.5	Ribbon Leads	ST	BTP-3
	SGD-3/120-XY13	120	3.00 (0.118)	1.70 (0.067)	7.10 (0.280)	7.10 (0.280)	6	Ribbon Leads	AL
	SGD-3/120-XY41	120	Medium Tee stacked rosette pattern 120 Ω				4.5	Solder Pads	ST
	SGD-3/120-XY43	120	Medium Tee stacked rosette pattern 120 Ω				6	Solder Pads	AL
实际尺寸:7.1mm	SGD-3/350-XY11	350	3.00 (0.118)	1.70 (0.067)	7.10 (0.280)	7.10 (0.280)	7.5	Ribbon Leads	ST	BTP-3
	SGD-3/350-XY13	350	3.00 (0.118)	1.70 (0.067)	7.10 (0.280)	7.10 (0.280)	10	Ribbon Leads	AL
	SGD-3/350-XY41	35	Medium Tee stacked rosette pattern 350 Ω				7.5	Solder Pads	ST
	SGD-3/350-XY43	350	Medium Tee stacked rosette pattern 350 Ω				10	Solder Pads	AL
实际尺寸:11.4mm	SGD-7/120-XY11	120	6.50 (0.256)	3.10 (0.122)	11.40 (0.449)	11.40 (0.449)	9	Ribbon Leads	ST	BTP-4
	SGD-7/120-XY13	120	6.50 (0.256)	3.10 (0.122)	11.40 (0.449)	11.40 (0.449)	12	Ribbon Leads	AL
	SGD-7/120-XY41	120	Large Tee stacked rosette pattern 120 Ω				9	Solder Pads	ST
	SGD-7/120-XY43	120	Large Tee stacked rosette pattern 120 Ω				12	Solder Pads	AL
实际尺寸:11.4mm	SGD-7/350-XY11	350	6.50	3.10	11.40	11.40	15	Ribbon Leads	ST	BTP-4
	SGD-7/350-XY13	350	(0.256)	(0.122)	(0.449)	(0.449)	20	Ribbon Leads	AL
	SGD-7/350-XY41	350	Large Tee stacked rosette pattern 350 Ω				15	Solder Pads	ST
	SGD-7/350-XY43	350	Large Tee stacked rosette pattern 350 Ω				20	Solder Pads	AL

ST = Steel

AL = Aluminum

注意：5件装
