OMEGA应变片有多种型号可供选择大多数应变测量应用。其坚固的结构和灵活性使它们适用于高精度的静态和动态测量。测量网格通过蚀刻形成康铜箔，然后将其完全密封在载体中由聚酰亚胺薄膜组成的介质。
三轴应变片订货信息：

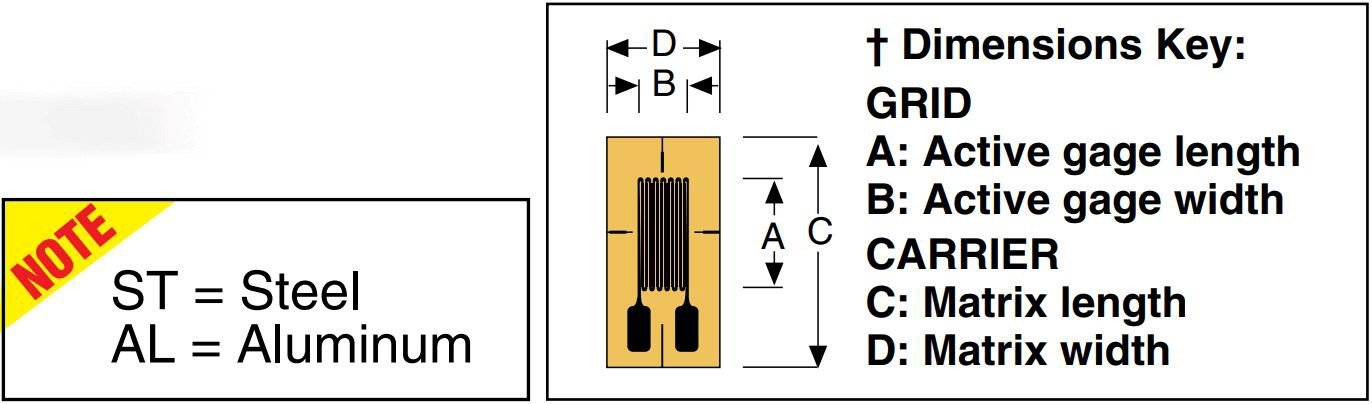

| 未显示导线 | 型号(5件装) | NOM. RESIS- TANCE (Ω) | 尺寸mm(inch)† | Max V* (Vrms) | Termination | TEMP COMP | TERM PAD | |||
| grid | carrier | |||||||||
| A | B | C | D | |||||||
实际尺寸:5.6mm | SGD-2/120-RY51 | 120 | 2.00 (0.079) | 1.10 (0.043) | 5.60 (0.220) | 5.60 (0.220) | 3 | Ribbon Leads | ST | BTP-1 |
| SGD-2/120-RY53 | 120 | 4 | Ribbon Leads | AL | ||||||
| SGD-2/120-RY61 | 120 | Small 3-element rectangular stacked rosette 120Ω | 3 | Solder Pads | ST | |||||
| SGD-2/120-RY63 | 120 | 4 | Solder Pads | AL | ||||||
实际尺寸:5.6mm | SGD-2/350-RY51 | 350 | 2.00 (0.079) | 1.10 (0.043) | 5.60 (0.220) | 5.60 (0.220) | 5 | Ribbon Leads | ST | BTP-1 |
| SGD-2/350-RY53 | 350 | 7 | Ribbon Leads | AL | ||||||
| SGD-2/350-RY61 | 350 | Small 3-element rectangular stacked rosette 350Ω | 5 | Solder Pads | ST | |||||
| SGD-2/350-RY63 | 350 | 7 | Solder Pads | AL | ||||||
实际尺寸:7.1mm | SGD-3/120-RY51 | 120 | 3.00 (0.118) | 1.70 (0.067) | 7.10 (0.280) | 7.10 (0.280) | 4.5 | Ribbon Leads | ST | BTP-2 |
| SGD-3/120-RY53 | 120 | 6 | Ribbon Leads | AL | ||||||
| SGD-3/120-RY61 | 120 | Medium 3-element rectangular stacked rosette 120Ω | 4.5 | Solder Pads | ST | |||||
| SGD-3/120-RY63 | 120 | 6 | Solder Pads | AL | ||||||
实际尺寸:7.1mm | SGD-3/350-RY51 | 350 | 3.00 (0.118) | 1.70 (0.067) | 7.10 (0.280) | 7.10 (0.280) | 7.5 | Ribbon Leads | ST | BTP-2 |
| SGD-3/350-RY53 | 350 | 10 | Ribbon Leads | AL | ||||||
| SGD-3/350-RY61 | 35 | Medium 3-element rectangular stacked rosette 350Ω | 7.5 | Solder Pads | ST | |||||
| SGD-3/350-RY63 | 350 | 10 | Solder Pads | AL | ||||||
实际尺寸:11.4mm | SGD-7/120-RY51 | 120 | 6.50 (0.256) | 3.10 (0.122) | 11.40 (0.449) | 11.40 (0.449) | 9 | Ribbon Leads | ST | BTP-3 |
| SGD-7/120-RY53 | 120 | 12 | Ribbon Leads | AL | ||||||
| SGD-7/120-RY61 | 120 | Large 3-element rectangular stacked rosette 120Ω | 9 | Solder Pads | ST | |||||
| SGD-7/120-RY63 | 120 | 12 | Solder Pads | AL | ||||||
实际尺寸:11.4mm | SGD-7/350-RY51 | 350 | 6.50 | 3.10 | 11.40 | 11.40 | 15 | Ribbon Leads | ST | BTP-3 |
| SGD-7/350-RY53 | 350 | (0.256) | (0.122) | (0.449) | (0.449) | 20 | Ribbon Leads | AL | ||
| SGD-7/350-RY61 | 350 | Large 3-element rectangular stacked rosette 350Ω | 15 | Solder Pads | ST | |||||
| SGD-7/350-RY63 | 350 | 20 | Solder Pads | AL | ||||||
