KFG系列预接线应变片被KFH系列取代。请参阅KFH系列了解完整详情，或留言联系我们以便提供更多替代产品信息。
OMEGA预接线应变片可供选择在各种不同的模型中覆盖大多数应变测量应用。坚固耐用结构和灵活性使这些适用于静态和动态的通用应变计测量高度准确性。测量网格是由蚀刻康铜箔形成，然后将其完全密封在载体介质由以下部分组成聚酰亚胺薄膜。2线或3线端接类型可提供3英尺或9英尺引线。标准应变片的温度系数与铝钢相匹配。
OMEGA应变片订货信息：

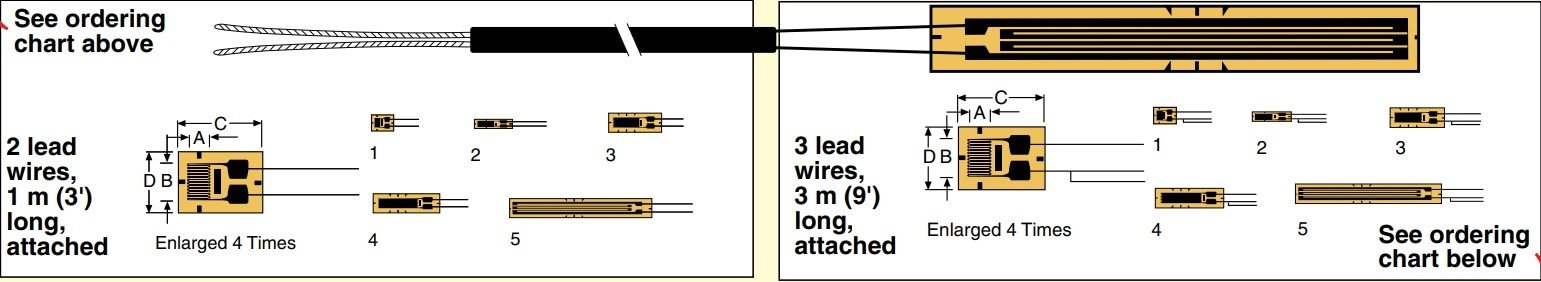

| 型号 (10件装) | 标称 电阻 (Ω） | 尺寸mm(inch)† | Max V* (Vrms) | TERMINATION | TEMPCOMP | TERMPAD | |||
| GRID | CARRIER | ||||||||
| A | B | C | D | ||||||
| KFG-02-120-C1-11L1M2R | 120 | 0.2(0.008) | 1.3(0.051) | 3.3(0.13) | 2.4(0.094) | 1 | 2wire | STE | 1 |
| KFG-1N-120-C1-11L1M2R | 120 | 1.0(0.039) | 0.7(0.028) | 4.2(0.17) | 1.4(0.055) | 1.5 | 2wire | STE | 2 |
| KFG-2N-120-C1-11L1M2R | 120 | 2.0(0.079) | 0.9(0.035) | 5.3(0.21) | 1.4(0.055) | 2.5 | 2wire | STE | 2 |
| KFG-3-120-C1-11L1M2R | 120 | 3.0(0.12) | 1.3(0.051) | 7.4(0.29) | 2.8(0.11) | 4 | 2wire | STE | 3 |
| KFG-3-350-C1-11L1M2R | 350 | 3.0(0.12) | 1.3(0.051) | 7.4(0.29) | 2.8(0.11) | 15 | 2wire | STE | 3 |
| KFG-5-120-C1-11L1M2R | 120 | 5.0(0.2) | 1.4(0.055) | 9.4(0.37) | 2.8(0.11) | 8 | 2wire | STE | 3 |
| KFG-5-350-C1-11L1M2R | 350 | 5.0(0.2) | 1.4(0.055) | 9.4(0.37) | 2.8(0.11) | 20 | 2wire | STE | 4 |
| KFG-10-120-C1-11L1M2R | 120 | 10.0(0.39) | 3.0(012) | 16.0(0.63) | 5.2(0.2) | 15 | 2wire | STE | 4 |
| KFG-30-120-C1-11L1M2R | 120 | 30.0(1.18) | 3.3(0.13) | 37.0(1.46) | 5.2(0.2) | 25 | 2wire | STE | 5 |
订货信息：
| 型号 (10件装) | 标称 电阻 (Ω | 尺寸mm(inch)† | Max V* (Vrms) | TERMINATION | TEMPCOMP | TERMPAD | |||
| GRID | CARRIER | ||||||||
| A | B | C | D | ||||||
| KFG-02-120-C1-11L3M3R | 120 | 0.2(0.008) | 1.3(0.051) | 3.3(0.13) | 2.4(0.094) | 1 | 3wire | STE | 1 |
| KFG-1N-120-C1-11L3M3R | 120 | 1.0(0.039) | 0.7(0.028) | 4.2(0.17) | 1.4(0.055) | 1.5 | 3wire | STE | 2 |
| KFG-2N-120-C1-11L3M3R | 120 | 2.0(0.079) | 0.9(0.035) | 5.3(0.21) | 1.4(0.055) | 2.5 | 3wire | STE | 2 |
| KFG-3-120-C1-11L3M3R | 120 | 3.0(0.12) | 1.3(0.051) | 7.4(0.29) | 2.8(0.11) | 4 | 3wire | STE | 3 |
| KFG-3-350-C1-11L3M3R | 350 | 3.0(0.12) | 1.3(0.051) | 7.4(0.29) | 2.8(0.11) | 15 | 3wire | STE | 3 |
| KFG-5-120-C1-11L3M3R | 120 | 5.0(0.2) | 1.4(0.055) | 9.4(0.37) | 2.8(0.11) | 8 | 3wire | STE | 3 |
| KFG-5-350-C1-11L3M3R | 350 | 5.0(0.2) | 1.4(0.055) | 9.4(0.37) | 2.8(0.11) | 20 | 3wire | STE | 4 |
| KFG-10-120-C1-11L3M3R | 120 | 10.0(0.39) | 3.0(012) | 16.0(0.63) | 5.2(0.2) | 15 | 3wire | STE | 4 |
| KFG-30-120-C1-11L3M3R | 120 | 30.0(1.18) | 3.3(0.13) | 37.0(1.46) | 5.2(0.2) | 25 | 3wire | STE | 5 |
注：预接线的应变片配有校准仪，显示封装中应变片的应变系数。以10个应变计的包装出售。
