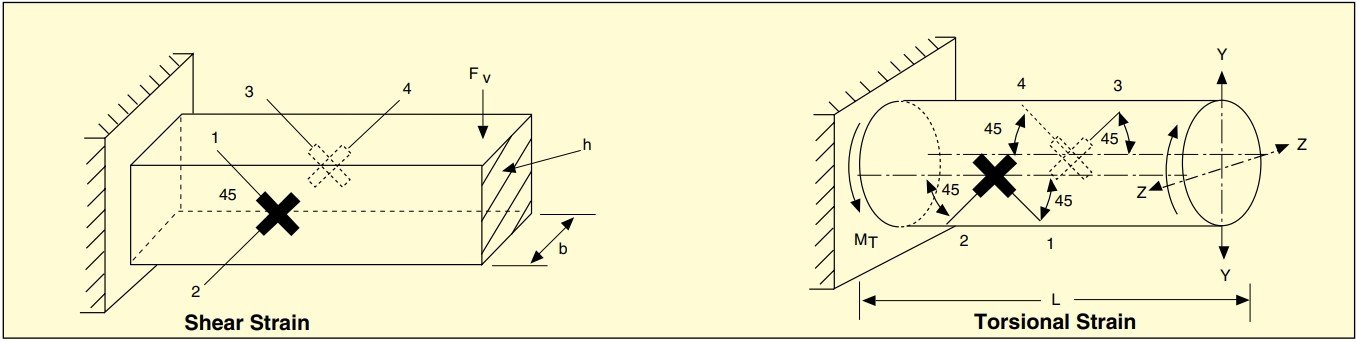

传感器质量应变片用于剪切梁和扭矩应用的剪切应变片
订货信息：

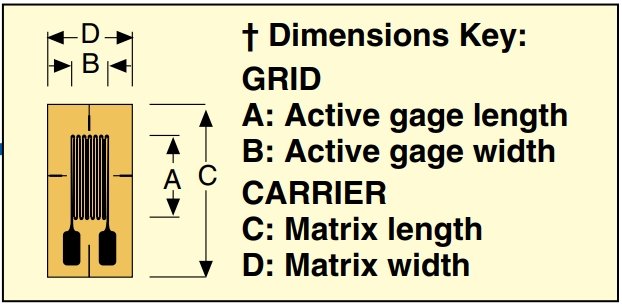

| 引线 未显示 | 型号(5件装) | NOM. RESIS- TANCE(Ω) | 尺寸mm(inch)† | max V* (Vrms) | TERMINATION | TEMP COMP | |||
| grid | carrier | ||||||||
| A | B | C | D | ||||||
尺寸7mm | SGT-1/350-SY11 | 350 | 1.4 | 1.5 | 7.0 | 3.4 | 6 | Ribbon Leads | ST |
| SGT-1/350-SY13 | 350 | (0.055) | (0.059) | (0.276) | (0.134) | 8 | Ribbon Leads | AL | |
| SGT-1/350-SY41 | 350 | Single element miniature shear 350 Ω | 6 | Solder Pads | ST | ||||
| SGT-1/350-SY43 | 350 | 8 | Solder Pads | AL | |||||
尺寸8.6mm | SGT-2/350-SY11 | 350 | 2.3 | 1.8 | 8.6 | 3.4 | 8 | Ribbon Leads | ST |
| SGT-2/350-SY13 | 350 | (0.091) | (0.071) | (0.339) | (0.134) | 12 | Ribbon Leads | AL | |
| SGT-2/350-SY41 | 350 | Single element small shear 350 Ω | 8 | Solder Pads | ST | ||||
| SGT-2/350-SY43 | 350 | 12 | Solder Pads | AL | |||||
**至大允许电桥通电电压（Vrms）。
注意：有应变片附件，请留言所需产品
提供匹配的剪切/扭转对
单一应变片可提供匹配的剪切/扭转对。购买一套SGT-3D/350-SY**和匹配的套餐但具有反向栅格角的SGT-3ES/350-SY**.在传感器设计中，沿着轴或梁的中心线背对背成对使用
订货信息：
| 引线 未显示 | 型号(5件装) | NOM. RESIS- TANCE(Ω) | 尺寸mm(inch)† | max V* (Vrms) | TERMINATION | TEMP COMP | |||
| grid | carrier | ||||||||
| A | B | C | D | ||||||
尺寸9.7mm | SGT-3ES/350-SY11 | 350 | 3.0 | 2.5 | 9.7 | 5.1 | 9 | Ribbon Leads | ST |
| SGT-3ES/350-SY13 | 350 | (0.118) | (0.098) | (0.382) | (0.201) | 12 | Ribbon Leads | AL | |
| SGT-3ES/350-SY41 | 350 | Single element reverse grid pattern of SGT-3D/350 350 Ω | 9 | Solder Pads | ST | ||||
| SGT-3ES/350-SY43 | 350 | 12 | Solder Pads | AL | |||||
尺寸9.7mm | SGT-3D/350-SY11 | 350 | 3 | 2.5 | 9.7 | 5.1 | 8 | Ribbon Leads | ST |
| SGT-3D/350-SY13 | 350 | (0.118) | (0.098) | (0.382) | (0.201) | 12 | Ribbon Leads | AL | |
| SGT-3D/350-SY41 | 350 | Single element right hand version grid of pattern SGT-3ES/350 350Ω | 8 | Solder Pads | ST | ||||
| SGT-3D/350-SY43 | 350 | 12 | Solder Pads | AL | |||||
ST=Steel
AL=Aluminum
*Maximum permitted bridge energizing voltage (Vrms).
** SY11, SY13, SY41 or SY43.
注意：有应变片附件，请留言所需产品
传感器质量应变片双剪应变片2个独立的应变片在一个载体上使用反向网格
订货信息：
| 引线 未显示 | 型号(5件装) | NOM. RESIS- TANCE(Ω) | 尺寸mm(inch)† | max V* (Vrms) | TERMINATION | TEMP COMP | |||
| grid | carrier | ||||||||
| A | B | C | D | ||||||
尺寸7mm | SGT-1D/350-SY11 | 350 | 1.4 | 1.5 | 7.0 | 5.1 | 5.5 | Ribbon Leads | ST |
| SGT-1D/350-SY13 | 350 | (0.055) | (0.059) | (0.276) | (0.201) | 7.5 | Ribbon Leads | AL | |
| SGT-1D/350-SY41 | 350 | Dual grid, miniature rectangular shear 350 Ω | 5.5 | Solder Pads | ST | ||||
| SGT-1D/350-SY43 | 350 | 7.5 | Solder Pads | AL | |||||
尺寸7mm | SGT-2DC/350-SY11 | 350 | 1.9 | 1.6 | 7.0 | 6.3 | 5.5 | Ribbon Leads | ST |
| SGT-2DC/350-SY13 | 350 | (0.075) | (0.063) | (0.276) | (0.248) | 8 | Ribbon Leads | AL | |
| SGT-2DC/350-SY41 | 350 | Dual grid, miniature shear all leads/Solder Pads at one end of grid 350 Ω | 5.5 | Solder Pads | ST | ||||
| SGT-2DC/350-SY43 | 350 | 8 | Solder Pads | AL | |||||
尺寸7mm | SGT-2D/350M-SY11 | 350 | 1.8 | 1.6 | 7.0 | 5.7 | 5.5 | Ribbon Leads | ST |
| SGT-2D/350M-SY13 | 350 | (0.071) | (0.063) | (0.276) | (0.224) | 7.5 | Ribbon Leads | AL | |
| SGT-2D/350M-SY41 | 350 | Dual grid shear, leads/Solder Pads one at each end of grid 350 Ω | 5.5 | Solder Pads | ST | ||||
| SGT-2D/350M-SY43 | 350 | 7.5 | Solder Pads | AL | |||||
尺寸7.2mm | SGT-2D/1000-SY11 | 1000 | 1.6 | 2.0 | 7.2 | 6.4 | 14 | Ribbon Leads | ST |
| SGT-2D/1000-SY13 | 1000 | (0.063) | (0.079) | (0.283) | (0.252) | 19 | Ribbon Leads | AL | |
| SGT-2D/1000-SY41 | 1000 | Dual grid, rectangular shear pattern,higher resistance,reduced heat generation 1000Ω | 14 | Solder Pads | ST | ||||
| SGT-2D/1000-SY43 | 1000 | 19 | Solder Pads | AL | |||||
尺寸10mm | SGT-3FS/350-SY11 | 350 | 3.0 | 2.6 | 10.0 | 8.4 | 8 | Ribbon Leads | ST |
| SGT-3FS/350-SY13 | 350 | (0.118) | (0.102) | (0.394) | (0.331) | 12 | Ribbon Leads | AL | |
| SGT-3FS/350-SY41 | 350 | Dual grid shear, all leads/Solder Pads one at each end of grid 350 Ω | 8 | Solder Pads | ST | ||||
| SGT-3FS/350-SY43 | 350 | 12 | Solder Pads | AL | |||||
尺寸9.6mm | SGT-3D/1000-SY11 | 1000 | 3.3 | 2.4 | 9.6 | 7.0 | 17 | Ribbon Leads | ST |
| SGT-3D/1000-SY13 | 1000 | (0.13) | (0.094) | (0.378) | (0.276) | 23 | Ribbon Leads | AL | |
| SGT-3D/1000-SY41 | 1000 | Dual grid shear, leads/Solder Pads, one at each end of grid,higher resistance reduced heat generation 1000Ω | 17 | Solder Pads | ST | ||||
| SGT-3D/1000-SY43 | 1000 | 23 | Solder Pads | AL | |||||
尺寸9.9mm | SGT-3GS/350-SY11 | 350 | 3.0 | 2.6 | 9.9 | 8.1 | 9 | Ribbon Leads | ST |
| SGT-3GS/350-SY13 | 350 | (0.118) | (0.102) | (0.390) | (0.319) | 13 | Ribbon Leads | AL | |
| SGT-3GS/350-SY41 | 350 | Dual grid, shear pattern leads/Solder Pads, one at each end of grid 350Ω | 9 | Solder Pads | ST | ||||
| SGT-3GS/350-SY43 | 350 | 13 | Solder Pads | AL | |||||
ST=Steel
AL=Aluminum
†提供定制尺寸
注意：有应变片附件，请留言所需产品
**至大允许电桥通电电压（Vrms）。
传感器质量应变片半桥剪切GAGES-2在一个载体上与一个共同的桥梁连接反向网李
订货信息：
| 引线 未显示 | 型号(5件装) | NOM. RESIS- TANCE(Ω) | 尺寸mm(inch)† | max V* (Vrms) | TERMINATION | TEMP COMP | |||
| grid | carrier | ||||||||
| A | B | C | D | ||||||
尺寸8.6mm | SGT-2DH/350-SY11 | 350 | 2.3 | 1.8 | 8.6 | 5.5 | 9 | Ribbon Leads | ST |
| SGT-2DH/350-SY13 | 350 | (0.091) | (0.071) | (0.339) | (0.217) | 11 | Ribbon Leads | AL | |
| SGT-2DH/350-SY41 | 350 | Dual grid shear, half bridge with common lead/Solder Pads 350 Ω | 9 | Solder Pads | ST | ||||
| SGT-2DH/350-SY43 | 350 | 11 | Solder Pads | AL | |||||
尺寸10.9mm | SGT-3JS/350-SY11 | 350 | 3.0 | 2.4 | 10.9 | 6.8 | 10 | Ribbon Leads | ST |
| SGT-3JS/350-SY13 | 350 | (0.118) | (0.094) | (0.429) | (0.268) | 14 | Ribbon Leads | AL | |
| SGT-3JS/350-SY41 | 350 | Dual grid shear, half bridge with common lead/Solder Pads 350 Ω | 10 | Solder Pads | ST | ||||
| SGT-3JS/350-SY43 | 350 | 14 | Solder Pads | AL | |||||
尺寸10mm | SGT-3H/350K-SY11 | 350 | 3.2 | 2.6 | 10 | 7.4 | 9.5 | Ribbon Leads | ST |
| SGT-3H/350K-SY13 | 350 | (0.126) | (0.102) | (0.394) | (0.291) | 13.5 | Ribbon Leads | AL | |
| SGT-3H/350K-SY41 | 350 | Dual grid shear, half bridge all leads on one side of grid 350 Ω | 9.5 | Solder Pads | ST | ||||
| SGT-3H/350K-SY43 | 350 | 13.5 | Solder Pads | AL | |||||
尺寸10mm | SGT-3HB/350K-SY11 | 350 | 3.2 | 2.7 | 10 | 8.4 | 9.5 | Ribbon Leads | ST |
| SGT-3HB/350K-SY13 | 350 | (0.126) | (0.106) | (0.394) | (0.331) | 9.5 | Ribbon Leads | AL | |
| SGT-3HB/350K-SY41 | 350 | Dual grid shear, half bridge all leads on one side of grid 350 Ω | 9.5 | Solder Pads | ST | ||||
| SGT-3HB/350K-SY43 | 350 | 9.5 | Solder Pads | AL | |||||
尺寸14.6mm | SGT-2H/350-SY11 | 350 | 2.3 | 1.8 | 14.6 | 3.4 | 8 | Ribbon Leads | ST |
| SGT-2H/350-SY13 | 350 | (0.091) | (0.071) | (0.575) | (0.134) | 12 | Ribbon Leads | AL | |
| SGT-2H/350-SY41 | 350 | Dual grid shear, half bridge for narrow beam 350 Ω | 8 | Solder Pads | ST | ||||
| SGT-2H/350-SY43 | 350 | 12 | Solder Pads | AL | |||||
ST=Steel
AL=Aluminum
†提供定制尺寸
**至大允许电桥通电电压（Vrms）。
注意：有应变片附件，请留言所需产品
