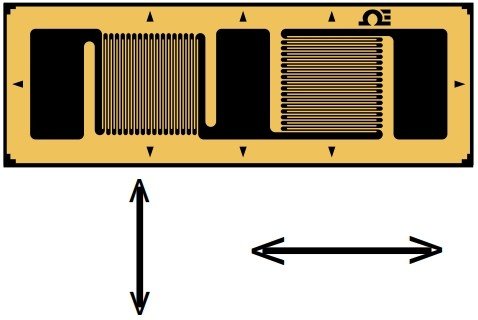

OMEGA提供0/90°TEE平面应变花模式，在一个载体上有2个单独的应变片。测量网格是垂直的，并且是电独立的。这些可以可用于轴向应变应用的传感器设计，也可单独接线以测量X和Y方向的应变。
订货信息：
| 引线 未显示 | 型号(5件装) | NOM. RESIS- TANCE(Ω) | 尺寸mm(inch)† | Max V* (Vrms) | TERMINATION | TEMP COMP | |||
| grid | carrier | ||||||||
| A | B | C | D | ||||||
尺寸:4.9mm | SGT-2/350-XY11 | 350 | 1.6 | 1.8 | 4.9 | 5.8 | 5.5 | Ribbon Leads | ST |
| SGT-2/350-XY13 | 350 | (0.063) | (0.071) | (0.193) | (0.228) | 7.5 | Ribbon Leads | AL | |
| SGT-2/350-XY41 | 350 | Small TEE rosette, leads/pads, electrically independent 350 Ω | 5.5 | Solder Pads | ST | ||||
| SGT-2/350-XY41 | 350 | 7.5 | Solder Pads | AL | |||||
尺寸:6.9mm | SGT-3/350-XY11 | 350 | 3.2 | 3.6 | 6.9 | 9.9 | 11 | Ribbon Leads | ST |
| SGT-3/350-XY13 | 350 | (0.126) | (0.142) | (0.272) | (0.039) | 16 | Ribbon Leads | AL | |
| SGT-3/350-XY41 | 350 | Medium TEE rosette 350 Ω | 11 | Solder Pads | ST | ||||
| SGT-3/350-XY43 | 350 | 16 | Solder Pads | AL | |||||
尺寸:7mm | SGT-3/1000-XY11 | 1000 | 3.2 | 3.6 | 7.0 | 9.6 | 18 | Ribbon Leads | ST |
| SGT-3/1000-XY13 | 1000 | (0.126) | (0.138) | (0.276) | (0.378) | 25 | Ribbon Leads | AL | |
| SGT-3/1000-XY41 | 1000 | Medium TEE rosette,higher resistance, reduced heat generation 1000 Ω | 18 | Solder Pads | ST | ||||
| SGT-3/1000-XY43 | 1000 | 25 | Solder Pads | AL | |||||
尺寸:8.6mm | SGT-4/350-XY11 | 350 | 4.0 | 4.6 | 8.6 | 12.3 | 14 | Ribbon Leads | ST |
| SGT-4/350-XY13 | 350 | (0.157) | (0.181) | (0.339) | (0.484) | 20 | Ribbon Leads | AL | |
| SGT-4/350-XY41 | 350 | Large TEE rosette, leads/pads electrically independent 350 Ω | 14 | Solder Pads | ST | ||||
| SGT-4/350-XY43 | 350 | 20 | Solder Pads | AL | |||||

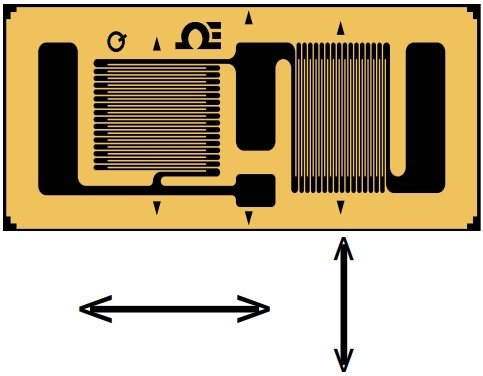

Omega提供0/90°TEE平面应变花图案，采用带有公共引线/焊盘的半桥。这些通常用于轴向应变应用的探头设计。每个载体有2个应变计，带有垂直网格。SGT-3H/350-XY**实际上有4根引线/焊盘。
请注意，其中一个应变计在栅极的一侧有2根引线/焊盘。如果工厂安装了引线，则所有4根引线都已安装，并且将剪掉一根引线，因为它不需要。这种设计旨在为布线提供多种选择。
订货信息：
| 引线 未显示 | 型号(5件装) | NOM. RESIS- TANCE(Ω) | 尺寸mm(inch)† | Max V* (Vrms) | TERMINATION | TEMP COMP | |||
| grid | carrier | ||||||||
| A | B | C | D | ||||||
尺寸:12mm | SGT-3H/350-XY11 | 350 | 2.5 | 2.5 | 12.0 | 4.8 | 9 | Ribbon Leads | ST |
| SGT-3H/350-XY13 | 350 | (0.098) | (0.098) | (0.472) | (0.189) | 12 | Ribbon Leads | AL | |
| SGT-3H/350-XY41 | 350 | Small 90° TEE rosette,with repositioned lead/tab 350Ω | 9 | Solder Pads | ST | ||||
| SGT-3H/350-XY43 | 350 | 12 | Solder Pads | AL | |||||
ST=Steel
AL=Aluminum
†For dimensions key, visit us online.
*至大允许电桥通电电压（Vrms）。
**XY11、XY13、XY41或XY43。
注意：有关应变计附件另售
OMEGA提供0/90° TEE平面应变花图案，采用带有公共引线/焊盘的半桥。
这些通常用于轴向应变应用的探头设计。每个载件有2个应变计，带有垂直网格和3个引线/焊盘。
OMEGA应变花订货信息：
| 引线 未显示 | 型号(5件装) | NOM. RESIS- TANCE(Ω) | 尺寸mm(inch)† | Max V* (Vrms) | TERMINATION | TEMP COMP | |||
| grid | carrier | ||||||||
| A | B | C | D | ||||||
尺寸:8.3mm | SGT-1/175-XY11 | 175 | 1.1 | 1.7 | 8.3 | 3.0 | 3 | Ribbon Leads | ST |
| SGT-1/175-XY13 | 175 | (0.043) | (0.067) | (0.327) | (0.118) | 5 | Ribbon Leads | AL | |
| SGT-1/175-XY41 | 175 | Miniature 90° TEE rosette, often used on small column transducers 175 Ω | 3 | Solder Pads | ST | ||||
| SGT-1/175-XY43 | 175 | 5 | Solder Pads | AL | |||||
尺寸:8.8mm | SGT-1/350-XY11 | 350 | 1.5 | 2.0 | 8.8 | 3.4 | 5.5 | Ribbon Leads | ST |
| SGT-1/350-XY13 | 350 | (0.059) | (0.079) | (0.346) | (0.134) | 5 | Ribbon Leads | AL | |
| SGT-1/350-XY41 | 350 | Miniature 90° TEE rosette, often used on small column transducers 350 Ω | 5.5 | Solder Pads | ST | ||||
| SGT-1/350-XY43 | 350 | 7.5 | Solder Pads | AL | |||||
尺寸:5.8mm | SGT-2H/350-XY11 | 350 | 2.0 | 2.8 | 5.8 | 7.4 | 7.5 | Ribbon Leads | ST |
| SGT-2H/350-XY13 | 350 | (0.079) | (0.11) | (0.228) | (0.291) | 11 | Ribbon Leads | AL | |
| SGT-2H/350-XY41 | 350 | Small, general purpose 90° TEE rosette 350 Ω | 7.5 | Solder Pads | ST | ||||
| SGT-2H/350-XY43 | 350 | 11 | Solder Pads | AL | |||||
尺寸:13mm | SGT-3BH/350-XY11 | 350 | 2.5 | 3.1 | 13 | 4.5 | 9 | Ribbon Leads | ST |
| SGT-3BH/350-XY13 | 350 | (0.098) | (0.122) | (0.512) | (0.177) | 13 | Ribbon Leads | AL | |
| SGT-3BH/350-XY41 | 350 | 90° TEE rosette,often used on column transducers 350 Ω | 9 | Solder Pads | ST | ||||
| SGT-3BH/350-XY43 | 350 | 13 | Solder Pads | AL | |||||
尺寸:7.2mm | SGT-3H/1000-XY11 | 1000 | 3.2 | 3.5 | 7.2 | 10.0 | 18 | Ribbon Leads | ST |
| SGT-3H/1000-XY13 | 1000 | (0.126) | (0.138) | (0.283) | (0.394) | 25 | Ribbon Leads | AL | |
| SGT-3H/1000-XY41 | 1000 | Medium 90° TEE rosette,higher resistance, reduced heat generation 1000 Ω | 18 | Solder Pads | ST | ||||
| SGT-3H/1000-XY43 | 1000 | 25 | Solder Pads | AL | |||||
尺寸:5.7mm | SGT-3L/350-XY11 | 350 | 2.6 | 1.8 | 5.7 | 5.2 | 7 | Ribbon Leads | ST |
| SGT-3L/350-XY13 | 350 | (0.102) | (0.071) | (0.224) | (0.205) | 10 | Ribbon Leads | AL | |
| SGT-3L/350-XY41 | 350 | Small 90° TEE rosette,half-bridge with a common lead/tab 350 Ω | 7 | Solder Pads | ST | ||||
| SGT-3L/350-XY43 | 350 | 10 | Solder Pads | AL | |||||
ST=Steel
AL=Aluminum
†有关尺寸键，请在线访问我们
*至大允许电桥通电电压（Vrms）
注意：有关应变计附件另售
