美国OMEGA 1件式云母绝缘带加热器MB-1系列_Cole-Parmer|Masterflex蠕动泵_圣戈班硅胶管_OMEGA热电偶_whirl-pak采样袋

高效的传热由缠绕在精选云母带上的高质量镍铬电阻线和封装在模压成型的铝涂层钢护套中。确保长期耐用性通过非吸湿性云母绝缘。统一适合±1/16“。A型超柔性绞合镍引线通过紧密结合的不锈钢编织套管进行保护。标准长度为24英寸和18英寸的辫子。重型不锈钢防扭矩柱端子标准是#10-32螺纹，除了1英寸宽的单元，具有#6-32螺纹。性能可靠，温度响应快，一体式该结构在狭小空间内提供至大的喷嘴覆盖范围。美国OMEGA 1件式云母绝缘带加热器

加热器订货信息：

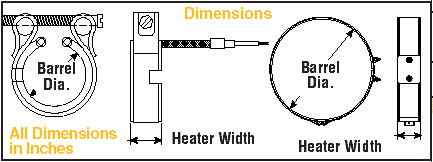

型号	Watts	Volts	W/In2	Dimensions(In.)			Wt.(Lb.)
型号	Watts	Volts	W/In2	Barrel Dia.	Heater Width	Term.	Wt.(Lb.)
MB0R2A1A1	175	240	30	15/16	2	A	0.2
MB1A1A1A1	100	120	32	1	1	A	0.2
MB1A1A1A2	100	240	32	1	1	A	0.2
MB1A1A1A3	150	120	48	1	1	A	0.2
MB1A1A1A4	150	240	48	1	1	A	0.2
MB1A1J1A1	150	120	32	1	1-1/2	A	0.2
MB1A1J1A2	150	240	32	1	1-1/2	A	0.2
MB1A1J1A3	200	120	42	1	1-1/2	A	0.2
MB1A1J1A4	200	240	42	1	1-1/2	A	0.2
MB1EOL1A1	100	120	41	1-1/4	5/8	A	0.3
MB1E1E1A1	150	120	31	1-1/4	1-1/4	A	0.3
MB1E1E1A2	150	240	31	1-1/4	1-1/4	A	0.3
MB1E1J1A1	200	240	34	1-1/4	1-1/2	A	0.3
MB1E2A1A1	150	240	19	1-1/4	2	A	0.3
MB1G1A1A1	150	240	35	1-3/8	1	A	0.3
MB1G1J1A1	275	240	42	1-3/8	1-1/2	A	0.3
MB1G2A1A1	300	240	35	1-3/8	2	A	0.3
MB1J1A1A1	150	120	32	1-1/2	1	A	0.3
MB1J1A1A2	150	240	32	1-1/2	1	A	0.3
MB1J1A1A3	200	120	42	1-1/2	1	A	0.3
MB1J1A1A4	200	240	42	1-1/2	1	A	0.3
MB1J1E1A1	225	240	38	1-1/2	1-1/4	A	0.4
MB1J1J1A1	200	120	28	1-1/2	1-1/2	A	0.4
MB1J1J1A2	200	240	28	1-1/2	1-1/2	A	0.4
MB1J1J1A3	250	120	35	1-1/2	1-1/2	A	0.4
MB1J1J1A4	250	240	35	1-1/2	1-1/2	A	0.4
MB1J1J1A5	275	120	39	1-1/2	1-1/2	A	0.4
MB1J1J1A6	275	240	39	1-1/2	1-1/2	A	0.4
MB1J1J1P1	275	120	39	1-1/2	1-1/2	P	0.4
MB1J1J1P2	275	240	39	1-1/2	1-1/2	P	0.4
MB1J2A1P1	300	240	32	1-1/2	2	A	0.4
MB1L1E1A1	200	240	31	1-5/8	1-1/4	A	0.4
MB1N1A1A1	200	240	36	1-3/4	1	A	0.4
MB1N1J1A1	200	120	24	1-3/4	1-1/2	A	0.4
MB1N1J1A2	200	240	24	1-3/4	1-1/2	A	0.4
MB1N1J1A3	250	120	30	1-3/4	1-1/2	A	0.4
MB1N1J1A4	250	240	30	1-3/4	1-1/2	A	0.4
MB1N1J1P1	250	240	30	1-3/4	1-1/2	P	0.4
MB1N1J1A5	275	240	33	1-3/4	1-1/2	A	0.4
MB1N1J1A6	300	120	36	1-3/4	1-1/2	A	0.4
MB1N1J1A7	300	240	36	1-3/4	1-1/2	A	0.4
MB1N1J1P2	300	240	36	1-3/4	1-1/2	P	0.4
MB1Q1A1A1	200	240	34	1-7/8	1	A	0.4
MB2A1A1A1	200	120	32	2	1	A	0.5
MB2A1A1A2	200	240	32	2	1	A	0.5
MB2A1J1P1	250	240	27	2	1-1/2	P	0.5
MB2A1J1P2	300	240	32	2	1-1/2	P	0.5
MB2A2A1P1	450	240	36	2	2	P	0.5
MB2C1A1A1	200	120	30	2-1/8	1	A	0.5
MB2C1A1A2	275	240	41	2-1/8	1	A	0.5
MB2C1J1P1	350	240	35	2-1/8	1-1/2	P	0.5
MB2E1A1P1	250	120	35	2-1/4	1	P	0.5
MB2E1A1P2	250	240	35	2-1/4	1	P	0.5
MB2E1J1P1	200	240	19	2-1/4	1-1/2	P	0.5
MB2E1J1P2	375	240	35	2-1/4	1-1/2	P	0.5
MB2E2A1P1	525	240	37	2-1/4	2	P	0.5
MB2G1A1P1	200	240	27	2-3/8	1	P	0.5
MB2J1A1P1	275	240	35	2-1/2	1	P	0.6
MB2J1J1P1	300	240	25	2-1/2	1-1/2	P	0.6
MB2J1J1P2	350	120	30	2-1/2	1-1/2	P	0.6
MB2J1J1P3	350	240	30	2-1/2	1-1/2	P	0.6
MB2J2A1P1	450	240	29	2-1/2	2	P	0.6
MB2N1J1P1	400	240	31	2-3/4	1-1/2	P	0.6
MB3A1A1P1	300	240	32	3	1	P	0.7
MB3A1A1P2	400	240	42	3	1	P	0.7
MB3A1J1P1	400	240	28	3	1-1/2	P	0.7
MB3A1J1P2	500	240	35	3	1-1/2	P	0.7
MB3C1A1P1	300	240	31	3-1/8	1	P	0.7
MB3C1J1P1	400	240	27	3-1/8	1-1/2	P	0.7
MB3E1J1P1	400	240	27	3-1/4	1-1/2	P	0.7
MB3J1J1P1	500	240	30	3-1/2	1-1/2	P	0.7
MB3J2A1P1	600	240	27	3-1/2	2	P	0.8
MB3N1J1P1	700	240	40	3-3/4	1-1/2	P	0.8
MB4B1J1P1	500	240	27	4	1-1/2	P	0.8
MB4J1J1P1	650	240	31	4-1/2	1-1/2	P	0.8
MB5E1J1P1	600	240	24	5-1/4	1-1/2	P	0.9
MB5J1J1P1	900	240	35	5-1/2	1-1/2	P	0.9
MB6C1J1P1	1,000	240	35	6-1/8	1-1/2	P	1

美国OMEGA 1件式云母绝缘带加热器MB-1系列
