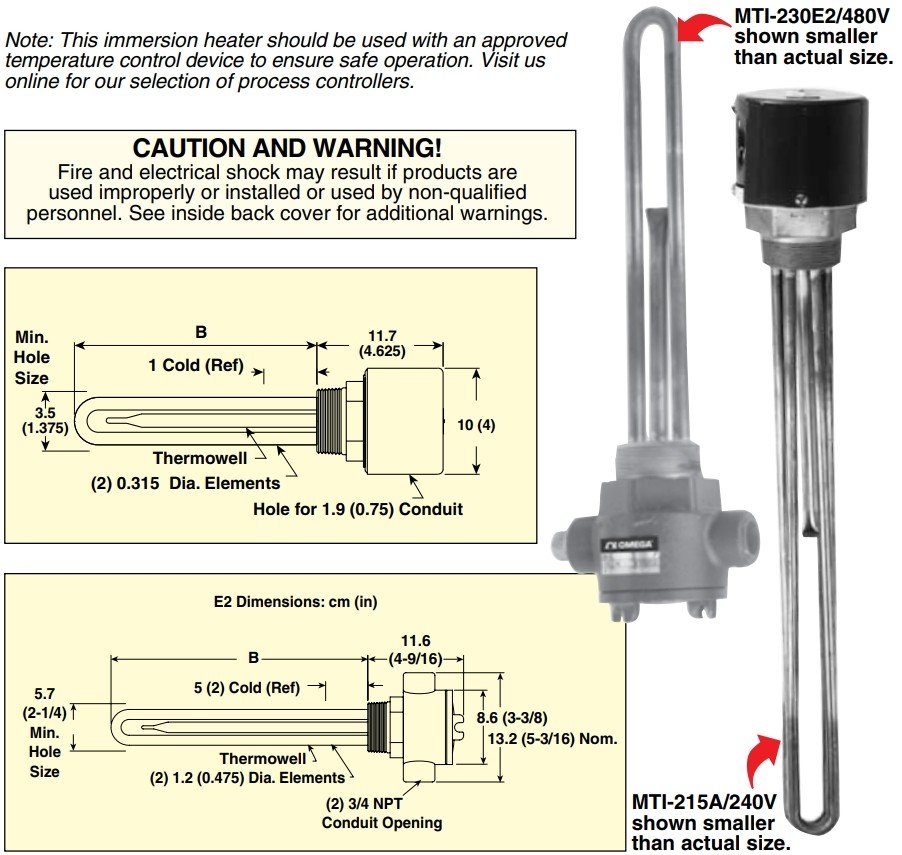

规格：
功率：1.5 to 15 kW
电源：120, 240, 480 V；1-phase
护套：1.2cm(0.475") diameter Incoloy
螺塞：2NPT不锈钢
外壳：通用，NEMA 1（IP00）等级和UL认证；或E2防潮/防爆外壳2
订货信息：
| kW | Phase | W/in2 | 加热元件 数量 | Dim. B cm(inch) | E1通用外壳1 | E2防潮/防爆密封件2 | ||
| 型号 | wt. kg(lb) | 型号 | wt. kg(lb) | |||||
| 120V型号 | ||||||||
| 1.5 | 1 | 48 | 1 | 11-7/16(19) | MTI-215A/120 | 1(3) | MTI-215E2/120 | 3(6) |
| 2 | 1 | 48 | 1 | 17-1/2(44) | MTI-220A/120 | 2(4) | MTI-220E2/120 | 3(7) |
| 2 | 1 | 51 | 2 | 7-7/16(19) | MTI-220A-3A/120 | 2(4) | MTI-220-3E2/120 | 3(7) |
| 2.5 | 1 | 52 | 2 | 8-1/2(22) | MTI-225A/120 | 2(4) | MTI-225E2/120 | 3(7) |
| 3 | 1 | 48 | 2 | 11-7/16(29) | MTI-230A/120 | 2(5) | MTI-230E2/120 | 4(8) |
| 4 | 1 | 48 | 2 | 17-1/2(44) | MTI-240A/120 | 2(5) | MTI-240E2/120 | 4(8) |
| 5 | 1 | 47 | 2 | 19-1/4(48) | MTI-250A/120 | 2(5) | MTI-250E2/120 | 4(8) |
| 240V型号 | ||||||||
| 1.5 | 1 | 48 | 1 | 11-7/16(19) | MTI-215A/240 | 1(3) | MTI-215E2/240 | 3(6) |
| 2 | 1 | 48 | 1 | 17-1/2(44) | MTI-220A/240 | 2(4) | MTI-220E2/240 | 3(7) |
| 2 | 1 | 51 | 2 | 7-7/16(19) | MTI-220A-3A/240 | 2(4) | MTI-220-3E2/240 | 3(7) |
| 2.5 | 1 | 52 | 2 | 8-1/2(22) | MTI-225A/240 | 2(4) | MTI-225E2/240 | 3(7) |
| 3 | 1 | 48 | 2 | 11-7/16(29) | MTI-230A/240 | 2(5) | MTI-230E2/240 | 4(8) |
| 4 | 1 | 48 | 2 | 17-1/2(44) | MTI-240A/240 | 2(5) | MTI-240E2/240 | 4(8) |
| 5 | 1 | 47 | 2 | 19-1/4(48) | MTI-250A/240 | 2(5) | MTI-250E2/240 | 4(8) |
| 6 | 1 | 47 | 2 | 24-19/32(62) | MTI-260A/240 | 2(5) | MTI-260E2/240 | 4(8) |
| 7 | 1 | 49 | 2 | 27-1/2 (70) | MTI-270A/240 | 3(6) | MTI-270E2/240 | 4(9) |
| 10 | 1 | 46 | 2 | 40-1/32(102) | MTI-2100A/240 | 4(8) | MTI-2100E2/240 | 5(11) |
| 12 | 1 | 46 | 2 | 47-9/16(121) | †MTI-2120A/240 | 4(8) | †MTI-2120E2/240 | 5(11) |
| 15 | 1 | 50 | 2 | 53-19/32(136) | †MTI-2150A/240 | 4(8) | †MTI-2150E2/240 | 5(11) |
| 480V型号 | ||||||||
| 1.5 | 1 | 48 | 1 | 11-7/16(19) | MTI-215A/480 | 1(3) | MTI-215E2/480 | 3(6) |
| 2 | 1 | 48 | 1 | 17-1/2(44) | MTI-220A/480 | 2(4) | MTI-220E2/480 | 3(7) |
| 2 | 1 | 51 | 2 | 7-7/16(19) | MTI-220A-3A/480 | 2(4) | MTI-220-3E2/480 | 3(7) |
| 2.5 | 1 | 52 | 2 | 8-1/2(22) | MTI-225A/480 | 2(4) | MTI-225E2/480 | 3(7) |
| 3 | 1 | 48 | 2 | 11-7/16(29) | MTI-230A/480 | 2(5) | MTI-230E2/480 | 4(8) |
| 4 | 1 | 48 | 2 | 17-1/2(44) | MTI-240A/480 | 2(5) | MTI-240E2/480 | 4(8) |
| 5 | 1 | 47 | 2 | 19-1/4(48) | MTI-250A/480 | 2(5) | MTI-250E2/480 | 4(8) |
| 6 | 1 | 47 | 2 | 24-19/32(62) | MTI-260A/480 | 2(5) | MTI-260E2/480 | 4(8) |
| 7 | 1 | 49 | 2 | 27-1/2 (70) | MTI-270A/480 | 3(6) | MTI-270E2/480 | 4(9) |
| 10 | 1 | 46 | 2 | 40-1/32(102) | MTI-2100A/480 | 4(8) | MTI-2100E2/480 | 5(11) |
| 12 | 1 | 46 | 2 | 47-9/16(121) | †MTI-2120A/480 | 4(8) | †MTI-2120E2/480 | 5(11) |
| 15 | 1 | 50 | 2 | 53-19/32(136) | †MTI-2150A/480 | 4(8) | †MTI-2150E2/480 | 5(11) |
1带通用外壳的加热器已通过UL认证和CSA认证，但带†（超过48安培）的型号除外。
2带防潮/防爆外壳的加热器已通过CSA NRTL/C认证，不适用于危险地区。带†（超过48安培）的型号除外。
