整体式温控器
通用或防潮/防爆外壳*
.475“（1cm）直径铜护套
3至18 kW
可靠的3元件加热器设计
120、208、240和480 Vac电源；1相和3相型号
请注意：此一体式恒温器仅用作温度控制。这不是故障平安设备。这些加热器应使用经批准的压力和/或温度控制，以确保顺利运行。有关我们选择的控制设备，请参见P部分。还提供E2型防潮/防爆外壳。不适用于危险场所。

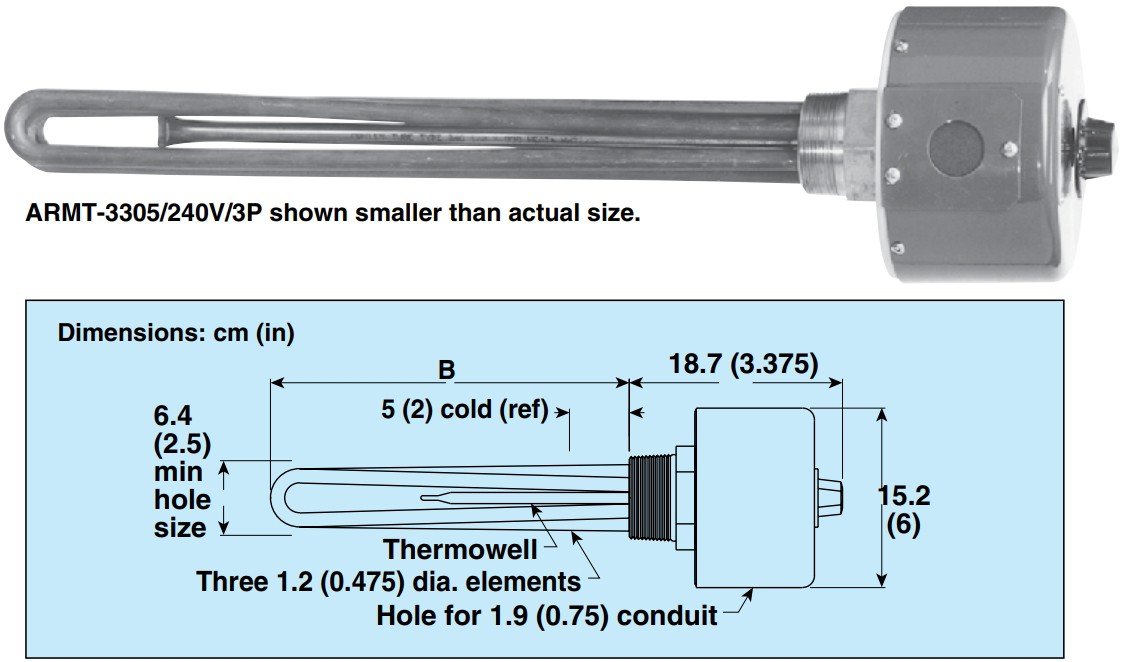

ARMT-3系列带通用外壳
T-2 Temp Range(60 to 250℉)订货信息：
| kW | Volts | W/in2 | No. Htg. | Dim. Bcm(in) | 1phase型号 | 3phase型号 | 重量kg(Ib) |
| 3 | 240 | 51 | 3 | 19(7-3/8) | ARTM-3305/240V | ARTM-3305/240V/3P | 3(6) |
| 3.75 | 240 | 52 | 3 | 21(8-7/8) | ARTM-3375/240V | ARTM-3375/240V/3P | 3(6) |
| 4.5 | 120 | 48 | 3 | 29(11-3/8) | ARTM-3455/120V | ARTM-3455/120V | 3(6) |
| 4.5 | 208 | 48 | 3 | 29(11-3/8) | ARTM-3455/208V | ARTM-3455/208V/3P | 3(7) |
| 4.5 | 240 | 48 | 3 | 29(11-3/8) | ARTM-3455/240V | ARTM-3455/240V/3P | 3(7) |
| 4.5 | 480 | 48 | 3 | 29(11-3/8) | ARTM-3455/480V | ARTM-3455/480V/3P | 3(7) |
| 6 | 120 | 48 | 3 | 44(17-3/8) | ARTM-3605/120V | - | 4(8) |
| 6 | 208 | 48 | 3 | 44(17-3/8) | ARTM-3605/208V | ARTM-3605/208V/3P | 4(8) |
| 6 | 240 | 48 | 3 | 44(17-3/8) | ARTM-3605/240V | ARTM-3605/240V/3P | 4(8) |
| 6 | 480 | 48 | 3 | 44(17-3/8) | ARTM-3605/480V | ARTM-3605/480V/3P | 4(8) |
| 7.5 | 208 | 53 | 3 | 49(19-1/8) | ARTM-3755/208V | ARTM-3755/208V/3P | 4(8) |
| 7.5 | 240 | 53 | 3 | 49(19-1/8) | ARTM-3755/240V | ARTM-3755/240V/3P | 4(8) |
| 7.5 | 480 | 53 | 3 | 49(19-1/8) | ARTM-3755/480V | ARTM-3755/480V/3P | 4(8) |
| 9 | 208 | 47 | 3 | 62(24-1/2) | ARTM-3905/208V | ARTM-3905/208V/3P | 4(9) |
| 9 | 240 | 47 | 3 | 62(24-1/2) | ARTM-3905/240V | ARTM-3905/240V/3P | 4(9) |
| 9 | 480 | 47 | 3 | 62(24-1/2) | ARTM-3905/480V | ARTM-3905/480V/3P | 4(9) |
| 12 | 240 | 46 | 3 | 82(32-5/16) | 1ARTM-31205/240V | 1ARTM-31205/240V/3P | 6(13) |
| 12 | 480 | 46 | 3 | 82(32-5/16) | ARTM-31205/480V | ARTM-31205/480V/3P | 6(13) |
| 15 | 208 | 46 | 3 | 101(39-3/4) | 1ARTM-31505/208V | 1ARTM-31505/208V/3P | 6(14) |
| 15 | 240 | 46 | 3 | 101(39-3/4) | 1ARTM-31505/240V | 1ARTM-31505/240V/3P | 6(14) |
| 15 | 480 | 46 | 3 | 101(39-3/4) | ARTM-31505/480V | ARTM-31505/480V/3P | 6(14) |
T-1 Temp Range (0 to 100℉)订货信息：
| kW | Volts | W/in2 | No.Htg. | Dim. Bcm(in) | 1phase型号 | 3phase型号 | 重量kg(Ib) |
| 3 | 240 | 51 | 3 | 19(7-3/8) | ARTM-3305T1/240V | ARTM-3305T1/240V/3P | 3(6) |
| 3.75 | 240 | 52 | 3 | 21(8-7/8) | ARTM-3375T1/240V | ARTM-3375T1/240V/3P | 3(6) |
| 4.5 | 120 | 48 | 3 | 29(11-3/8) | ARTM-3455T1/120V | ARTM-3455T1/120V | 3(6) |
| 4.5 | 208 | 48 | 3 | 29(11-3/8) | ARTM-3455T1/208V | ARTM-3455T1/208V/3P | 3(7) |
| 4.5 | 240 | 48 | 3 | 29(11-3/8) | ARTM-3455T1/240V | ARTM-3455T1/240V/3P | 3(7) |
| 4.5 | 480 | 48 | 3 | 29(11-3/8) | ARTM-3455T1/480V | ARTM-3455T1/480V/3P | 3(7) |
| 6 | 120 | 48 | 3 | 44(17-3/8) | ARTM-3605T1/120V | - | 4(8) |
| 6 | 208 | 48 | 3 | 44(17-3/8) | ARTM-3605T1/208V | ARTM-3605T1/208V/3P | 4(8) |
| 6 | 240 | 48 | 3 | 44(17-3/8) | ARTM-3605T1/240V | ARTM-3605T1/240V/3P | 4(8) |
| 6 | 480 | 48 | 3 | 44(17-3/8) | ARTM-3605T1/480V | ARTM-3605T1/480V/3P | 4(8) |
| 7.5 | 208 | 53 | 3 | 49(19-1/8) | ARTM-3755T1/208V | ARTM-3755T1/208V/3P | 4(8) |
| 7.5 | 240 | 53 | 3 | 49(19-1/8) | ARTM-3755T1/240V | ARTM-3755T1/240V/3P | 4(8) |
| 7.5 | 480 | 53 | 3 | 49(19-1/8) | ARTM-3755T1/480V | ARTM-3755T1/480V/3P | 4(8) |
| 9 | 208 | 47 | 3 | 62(24-1/2) | ARTM-3905T1/208V | ARTM-3905T1/208V/3P | 4(9) |
| 9 | 240 | 47 | 3 | 62(24-1/2) | ARTM-3905T1/240V | ARTM-3905T1/240V/3P | 4(9) |
| 9 | 480 | 47 | 3 | 62(24-1/2) | ARTM-3905T1/480V | ARTM-3905T1/480V/3P | 4(9) |
| 12 | 240 | 46 | 3 | 82(32-5/16) | 1ARTM-31205T1/240V | 1ARTM-31205T1/240V/3P | 6(13) |
| 12 | 480 | 46 | 3 | 82(32-5/16) | ARTM-31205T1/480V | ARTM-31205T1/480V/3P | 6(13) |
| 15 | 208 | 46 | 3 | 101(39-3/4) | 1ARTM-31505T1/208V | 1ARTM-31505T1/208V/3P | 6(14) |
| 15 | 240 | 46 | 3 | 101(39-3/4) | 1ARTM-31505T1/240V | 1ARTM-31505T1/240V/3P | 6(14) |
| 15 | 480 | 46 | 3 | 101(39-3/4) | ARTM-31505T1/480V | ARTM-31505T1/480V/3P | 6(14) |
有其他可用电压，请留言联系广州市赛拓仪器科技有限公司
1未通过UL认证或CSA认证的1相(超过48安培)
订购实例：
ARMT-3305/240V/3P，3kW加热器，由三相240Vac供电。
ARMT-3755/240V，7.5kW加热器
