OMEGALUX MT-2系列采用铜护套，适合pH6至8pH范围内的清洁液体。
请注意：此浸入式加热器应与经批准的温度控制一起使用确保安全操作的装置。有关我们选择的过程控制器，请参见P部分。
注意和警告！
如果产品使用不当或安装或使用不合格人员。有关其他警告，请参阅封底内侧。
订货信息：

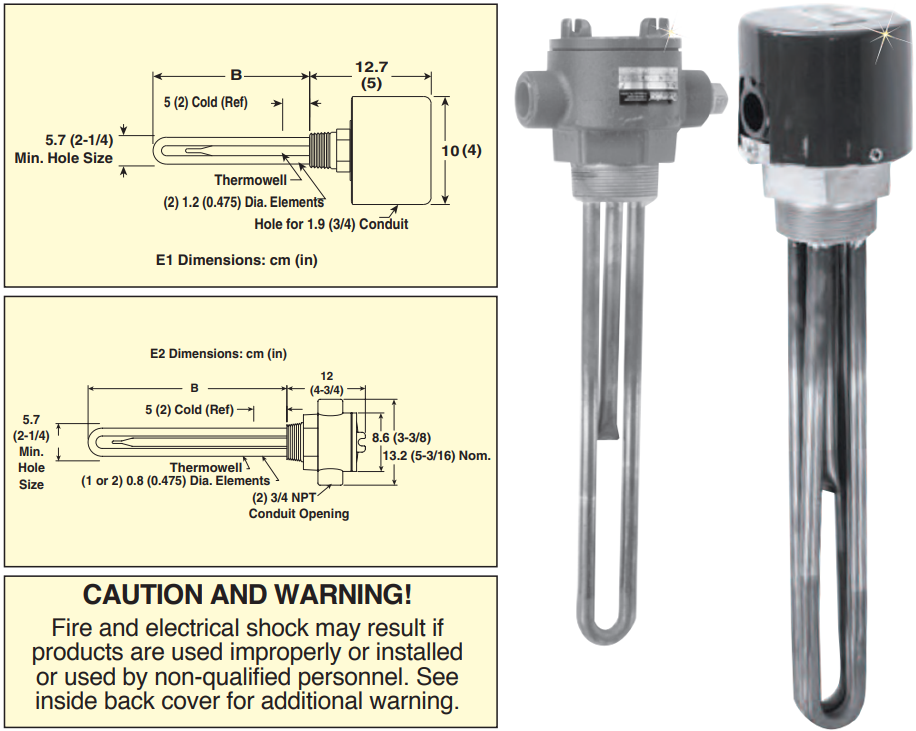

| 千瓦 | W/in2 | No. Htg. Elem. | 尺寸B cm(in) | E1一般用途1 | E2带防爆外壳2 | |||
| 型号 | Wt. kg(lb) | 型号 | Wt. kg(lb) | |||||
| 120V型号 | ||||||||
| 1.5 | 48 | 1 | 30(12) | MT-215A/120 | 1(3) | MT-215E2/120 | 3(6) | |
| 2 | 48 | 1 | 46(18) | MT-220A/120 | 1(3) | MT-220E2/120 | 3(6) | |
| 2 | 51 | 2 | 20(8) | MT-220-3A/120 | 1(3) | MT-220-3E2/120 | 3(6) | |
| 2.5 | 48 | 2 | 24(9-1/2) | MT-225A/120 | 1(3) | MT-225E2/120 | 3(6) | |
| 3 | 48 | 2 | 30(12) | MT-230A/120 | 2(4) | MT-230E2/120 | 3(7) | |
| 4 | 48 | 2 | 46(18) | MT-240A/120 | 2(4) | MT-240E2/120 | 3(7) | |
| 5 | 53 | 2 | 49(19-13/16) | MT-250A/120 | 2(5) | MT-250E2/120 | 4(8) | |
| 6 | 47 | 2 | 64(25-1/8) | MT-260A/120 | 2(5) | MT-260E2/120 | 4(8) | |
| 10 | 46 | 2 | 122(48) | MT-2100A/120 | 3(7) | MT-2100E2/120 | 5(10) | |
| 12 | 46 | 2 | 122(48) | MT-2120A/120† | 3.6(8) | MT-2120E2/120† | 5(11) | |
| 208V型号 | ||||||||
| 1.5 | 48 | 1 | 30(12) | MT-215A/208 | 1(3) | MT-215E2/208 | 3(6) | |
| 2 | 48 | 1 | 46(18) | MT-220A/208 | 1(3) | MT-220E2/208 | 3(6) | |
| 2 | 51 | 2 | 20(8) | MT-220-3A/208 | 1(3) | MT-220-3E2/208 | 3(6) | |
| 2.5 | 48 | 2 | 24(9-1/2) | MT-225A/208 | 1(3) | MT-225E2/208 | 3(6) | |
| 3 | 48 | 2 | 30(12) | MT-230A/208 | 2(4) | MT-230E2/208 | 3(7) | |
| 4 | 48 | 2 | 46(18) | MT-240A/208 | 2(4) | MT-240E2/208 | 3(7) | |
| 5 | 53 | 2 | 49(19-13/16) | MT-250A/208 | 2(5) | MT-250E2/208 | 4(8) | |
| 6 | 47 | 2 | 64(25-1/8) | MT-260A/208 | 2(5) | MT-260E2/208 | 4(8) | |
| 10 | 46 | 2 | 122(48) | MT-2100A/208 | 3(7) | MT-2100E2/208 | 5(10) | |
| 12 | 46 | 2 | 122(48) | MT-2120A/208† | 3.6(8) | MT-2120E2/208† | 5(11) | |
| 240V型号 | ||||||||
| 1.5 | 48 | 1 | 30(12) | MT-215A/240 | 1(3) | MT-215E2/240 | 3(6) | |
| 2 | 48 | 1 | 46(18) | MT-220A/240 | 1(3) | MT-220E2/240 | 3(6) | |
| 2 | 51 | 2 | 20(8) | MT-220-3A/240 | 1(3) | MT-220-3E2/240 | 3(6) | |
| 2.5 | 48 | 2 | 24(9-1/2) | MT-225A/240 | 1(3) | MT-225E2/240 | 3(6) | |
| 3 | 48 | 2 | 30(12) | MT-230A/240 | 2(4) | MT-230E2/240 | 3(7) | |
| 4 | 48 | 2 | 46(18) | MT-240A/240 | 2(4) | MT-240E2/240 | 3(7) | |
| 5 | 53 | 2 | 49(19-13/16) | MT-250A/240 | 2(5) | MT-250E2/240 | 4(8) | |
| 6 | 47 | 2 | 64(25-1/8) | MT-260A/240 | 2(5) | MT-260E2/240 | 4(8) | |
| 7 | 49 | 2 | 71(28) | MT-270A/240 | 3(6) | MT-270E2/240 | 5(9) | |
| 10 | 46 | 2 | 122(48) | MT-2100A/240 | 3(7) | MT-2100E2/240 | 5(10) | |
| 12 | 46 | 2 | 122(48) | MT-2120A/240† | 3.6(8) | MT-2120E2/240† | 5(11) | |
| 15 | 50 | 2 | 137(54) | MT-2150A/240† | 4(9) | MT-2150E2/240 | 5.4(12) | |
| 480V型号 | ||||||||
| 1.5 | 48 | 1 | 30(12) | MT-215A/480 | 1(3) | MT-215E2/480 | 3(6) | |
| 2 | 48 | 1 | 46(18) | MT-220A/480 | 1(3) | MT-220E2/480 | 3(6) | |
| 2 | 51 | 2 | 20(8) | MT-220-3A/480 | 1(3) | MT-220-3E2/480 | 3(6) | |
| 2.5 | 48 | 2 | 24(9-1/2) | MT-225A/480 | 1(3) | MT-225E2/480 | 3(6) | |
| 3 | 48 | 2 | 30(12) | MT-230A/480 | 2(4) | MT-230E2/480 | 3(7) | |
| 4 | 48 | 2 | 46(18) | MT-240A/480 | 2(4) | MT-240E2/480 | 3(7) | |
| 5 | 53 | 2 | 49(19-13/16) | MT-250A/480 | 2(5) | MT-250E2/480 | 4(8) | |
| 6 | 47 | 2 | 64(25-1/8) | MT-260A/480 | 2(5) | MT-260E2/480 | 4(8) | |
| 7 | 49 | 2 | 103(40-1/2) | MT-270A/480 | 3(6) | MT-270E2/480 | 5(9) | |
| 10 | 46 | 2 | 122(48) | MT-2100A/480 | 3(7) | MT-2100E2/480 | 5(10) | |
| 12 | 46 | 2 | 122(48) | MT-2120A/480† | 3.6(8) | MT-2120E2/480† | 5(11) | |
| 15 | 50 | 2 | 137(54) | MT-2150A/480† | 4(9) | MT-2150E2/480 | 5.4(12) | |
/*表示电压;插入120用于120VAC，208用于208VAC，240用于240VAC，或280用于280VAC
/**表示电压;208用于208VAC，240用于240VAC，或480用于480VAC
那些已经包含240或480的型号仅在该电压下可用。
1带有通用和防潮外壳的加热器已通过UL认证和CSA认证，但带†的型号除外（MT-2120A/208和240Vac，超过48安培。
2带防爆外壳的加热器已通过CSA NRTL/C认证，并非预期用途用于危险区域，但带†的型号除外（MT-2120E2/208和240Vac，超过48安培）
