SV-3300系列二通电磁阀是直动式阀，采用黄铜、不锈钢结构和FKM密封材料。温度范围为-10至137℃（14至280℉），非常适合中性介质，例如压缩空气、惰性气体、水和合成油。电气连接选项是1/2“导管插头或应力消除连接器。
规格
安装位置：任意;至好采用直立式电磁阀系统
至高工艺温度：137℃(280℉) due to FKM O-ring
电压容差：±10%
开放时间（毫秒）：
交流电：10至20
直流电：20至80，取决于孔口和压力
关闭时间（ms）：交流和直流：约20至30
循环速率：约1000 cmp
占空比：连续（100%）

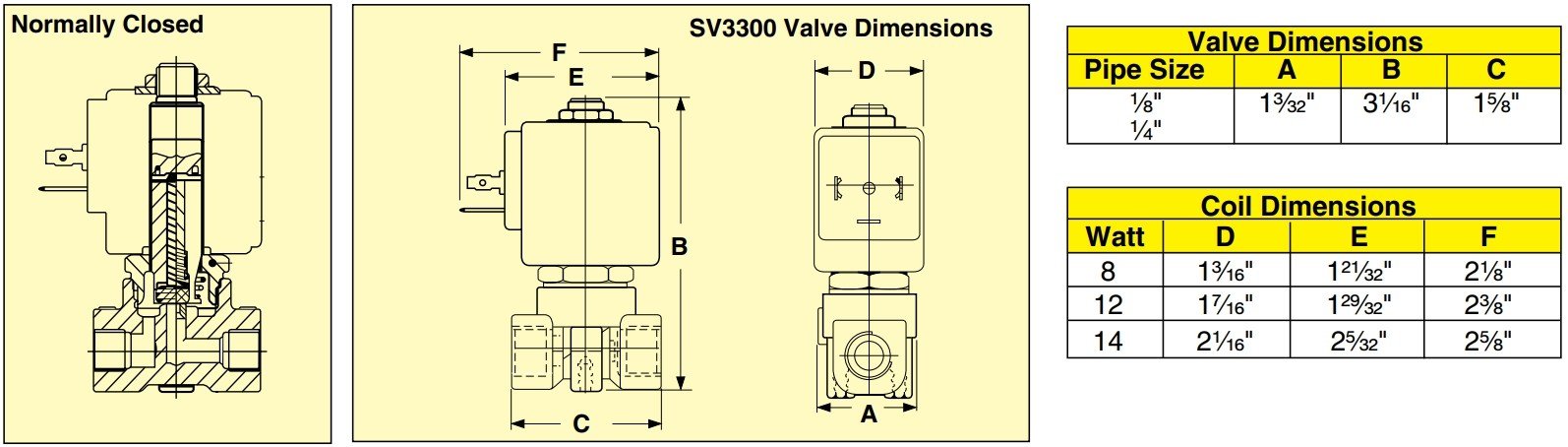

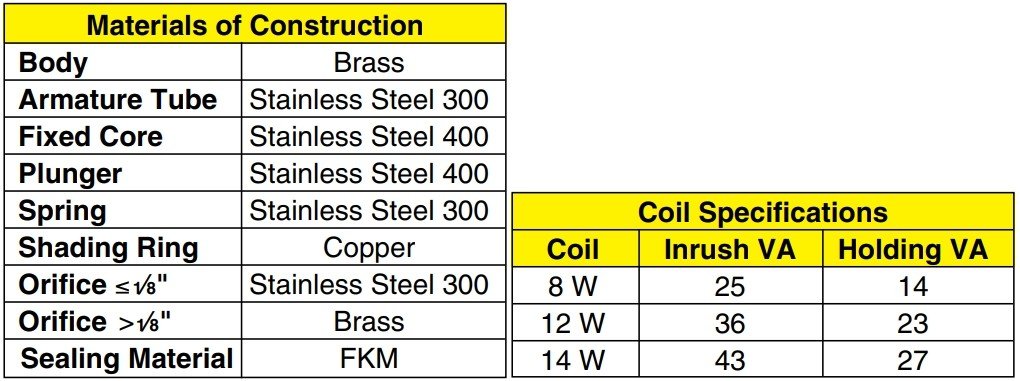

线圈成型材料：
Black Polyester(Class F):SV8COIL-115AC；SV8COIL-24DC/60HZ；SVCOIL-24AC/50 to 60HZ；SV8COIL-220AC
Black Polyamide(Class F):SV8COIL-12DC,SV8COIL-24DC, all 12 Watt coils
Black Polyphenylensulphide(Class H):SV8COIL-115/60HZ
Black Epoxy Resin(Class H): All 14 Watt coils
OMEGA电磁阀订货信息：
| 常闭 型号 | 常开 型号 | 管 尺寸† | 孔口 尺寸 | CV 流量 系数 | 线圈 | Min psi | 工作压力 | ||
| 标准 | 可选 | M.O.P.D. | |||||||
| AC psi | DC psi | ||||||||
| SV3301 | SV3301-NO | 1/8" | 1/16" | 0.10 | 8W | — | 0 | 435 | 260 |
| SV3302 | SV3302-NO | 1/8" | 5/64" | 0.14 | 8W | — | 0 | 315 | 230 |
| 1/8" | 5/64" | 0.14 | — | 12or14W | 0 | 505 | 435 | ||
| SV3303 | SV3303-NO | 1/8" | 3/32" | 0.22 | 8W | — | 0 | 200 | 130 |
| 1/8" | 3/32" | 0.22 | — | 12or14W | 0 | 435 | 360 | ||
| SV3304 | SV3304-NO | 1/8" | 1/8" | 0.28 | 8W | — | 0 | 145 | 85 |
| 1/8" | 1/8" | 0.28 | — | 12or14W | 0 | 360 | 260/290‡ | ||
| SV3305 | SV3305-NO | 1/8" | 3/16" | 0.45 | 8W | — | 0 | 70 | 30 |
| SV3306 | SV3306-NO | 1/8" | 3/16" | 0.45 | — | 12or14W | 0 | 170 | 100/115 |
| 1/4" | 1/16" | 0.10 | 8W | — | 0 | 430 | 260 | ||
| SV3307 | SV3307-NO | 1/4" | 5/64" | 0.14 | 8W | — | 0 | 315 | 230 |
| 1/4" | 5/64" | 0.14 | — | 12or14W | 0 | 505 | 435 | ||
| SV3308 | SV3308-NO | 1/4" | 3/32" | 0.22 | 8W | — | 0 | 200 | 130 |
| 1/4" | 3/32" | 0.22 | — | 12or14W | 0 | 435 | 360 | ||
| SV3309 | SV3309-NO | 1/4" | 1/8" | 0.28 | 8W | — | 0 | 145 | 85 |
| 1/4" | 1/8" | 0.28 | — | 12or14W | 0 | 360 | 260/290‡ | ||
| SV3310 | SV3310-NO | 1/4" | 3/16" | 0.45 | 8W | — | 0 | 70 | 30 |
| 1/4" | 3/16" | 0.45 | — | 12or14W | 0 | 170 | 100/115‡ | ||
| SV3311 | SV3311-NO | 1/4" | 7/32" | 0.63 | 8W | — | 0 | 45 | 15 |
| 1/4" | 7/32" | 0.63 | — | 12or14W | 0 | 100/145‡ | 35/70‡ | ||
* Maximum operational pressure differential.
†BSP threads. In most cases BSP and NPT are interchangeable in thisSize.
‡ Rating for 12 W/14 W units asShown.
配件
| 型号 | 描述 |
| 连接 | |
| SV-CGC | Replacement cable grip connector |
| SV-CC | ¹/₂" conduit connector |
| 线圈 | |
| SV8COIL-115AC | Replacement 8 W coil for 110 to 120 Vac/50 to 60 Hz 154℃(310℉)(Class F) |
| SV8COIL-12DC | 8 W coil for 12 Vdc 154℃(310℉)(Class F) |
| SV8COIL-24DC | 8 W coil for 24 Vdc 154℃(310℉)(Class F) |
| SV8COIL-24AC/60HZ | 8 W coil for 24 Vac/50 to 60Hz 182℃(360℉)(Class F) |
| SV8COIL-220AC | 8 W coil for 220 to 240 Vac/50 to 60 Hz 154℃(310℉)(Class F) |
| SV8COIL-115/60HZ | 8 W coil for 115 Vac/60 Hz 182℃(360℉)(Class H) |
| SV12COIL-120/60HZ | 12 W coil for 120 Vac/60 Hz 154℃(310℉)(Class F) |
| SV12COIL-12DC | 12 W coil for 12 Vdc 154℃(310℉)(Class F) |
| SV12COIL-24DC | 12 W coil for 24 Vdc 154℃(310℉)(Class F) |
| SV14COIL-24DC | 14 W coil for 24 Vdc 182℃(360℉)(Class H) |
| SV14COIL-24/50-60HZ | 14 W coil for 24 Vdc/50 to 60Hz 182℃(360℉)(Class H) |
| SV14COIL-12DC | 14 W coil for 12 Vdc 182℃(360℉)(Class H) |
配有操作手册、8W线圈和电缆手柄连接器。
订购示例：
SV3309，用于1/8"节流孔的1/4"常闭阀
SV3303-NO，用于3/22英寸节流孔的1/2英寸常开阀
