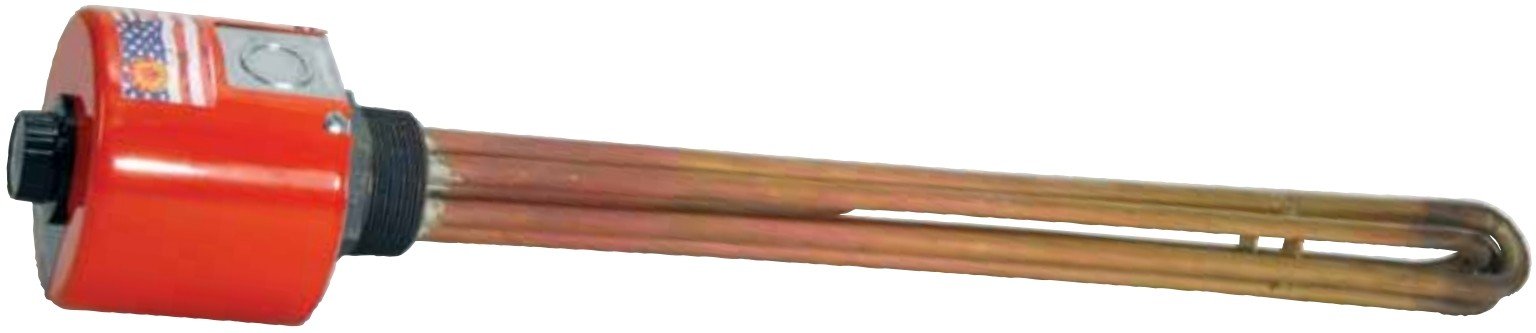

螺旋塞浸入式加热器由管状元件组成焊接或钎焊成螺纹螺塞，然后可以插入罐壁的螺纹开口或穿过配接全联轴器或半联轴器。需要客户帮助吗？我们为与客户合作的记录感到自豪为工作开发合适的加热器，致来电洽谈。
60 watts/in2 (9.3 watts/cm2)—典型应用：清洁水
| 型号 | 标称管道 尺寸 | 浸泡长度 | KW | 近似净重 | ||||
| 120V-1相 | 120/240V | 240V-1Ph | 毫米 | 英寸 | kg | lbs | ||
| TSP01840 | — | TSP01841 | 1 NPT 1元件 | 114 | 4-1/2 | 0.5 | 1 | 2 |
| TSP01842 | — | TSP01843 | 165 | 6-1/2 | 0.75 | 1 | 2 | |
| TSP01844 | — | TSP01845 | 168 | 65/8 | 1 | 1 | 2 | |
| TSP01846 | — | TSP01847 | 203 | 8 | 1.25 | 1 | 2 | |
| TSP01848 | — | TSP01849 | 235 | 9-1/4 | 1.5 | 1 | 3 | |
| TSP01850 | — | TSP01851 | 318 | 12-1/2 | 2 | 1 | 3 | |
| TSP01852 | — | TSP01853 | 375 | 14-3/4 | 2.5 | 1 | 3 | |
| TSP01854 | — | TSP01855 | 426 | 16-3/4 | 3 | 1 | 3 | |
| — | — | TSP01856 | 533 | 21 | 4 | 1 | 3 | |
| TSP01857 | — | TSP01858 | 1-1/4 NPT 1元件 | 111 | 4-3/8 | 0.5 | 1 | 3 |
| TSP01859 | — | TSP01860 | 162 | 6-3/8 | 0.75 | 1 | 3 | |
| — | TSP01861 | — | 11/4 NPT 2元件 | 111 | 4-3/8 | 1 | 1 | 3 |
| — | TSP01862 | — | 162 | 6-3/8 | 1.5 | 1 | 3 | |
| — | TSP01863 | — | 216 | 8-1/2 | 2 | 1 | 3 | |
| — | TSP01864 | — | 273 | 10-3/4 | 2.5 | 2 | 4 | |
| — | TSP01865 | — | 381 | 15 | 3 | 2 | 4 | |
| — | — | TSP01866 | 483 | 19 | 4 | 2 | 4 | |
| — | — | TSP01867 | 597 | 23-1/2 | 5 | 2 | 4 | |
| — | — | TSP01868 | 699 | 27-1/2 | 6 | 2 | 5 | |
订货信息：
| 型号 | 标称管道 尺寸 | 浸泡长度 | KW | 近似净重 | ||||||
| 120V-1Ph | 120/240V | 240V-3Ph | 240/480V | 480V-3Ph | mm | inch | kg | lbs | ||
| — | TSP01869 | — | TSP01870 | — | 2 NPT 2元件 | 206 | 8-1/8 | 2 | 2 | 4 |
| — | TSP01871 | — | TSP01872 | — | 283 | 11-1/8 | 3 | 2 | 4 | |
| — | TSP01873 | — | TSP01874 | — | 384 | 15-1/8 | 4 | 2 | 5 | |
| — | TSP01875 | — | TSP01876 | — | 460 | 18-1/8 | 5 | 2 | 5 | |
| — | — | — | TSP01877 | — | 537 | 21-1/8 | 6 | 3 | 6 | |
| — | — | — | TSP01878 | — | 676 | 26-5/8 | 8 | 3 | 6 | |
| — | — | — | TSP01879 | — | 816 | 32-1/8 | 10 | 3 | 6 | |
| TSP01880 | — | TSP01881 | — | TSP01882* | 2 NPT 3元件 | 206 | 8-1/8 | 3 | 2 | 4 |
| TSP01883 | — | TSP01884 | — | TSP01885* | 283 | 11-1/8 | 4.5 | 2 | 5 | |
| — | — | TSP01886 | — | TSP01887 | 384 | 15-1/8 | 6 | 2 | 5 | |
| — | — | TSP01888 | — | TSP01889 | 460 | 18-1/8 | 7.5 | 3 | 6 | |
| — | — | TSP01890 | — | TSP01891 | 537 | 21-1/8 | 9 | 3 | 6 | |
| — | — | TSP01892 | — | TSP01893 | 676 | 26-5/8 | 12 | 3 | 7 | |
| — | — | TSP01894 | — | TSP01895 | 816 | 32-1/8 | 15 | 4 | 8 | |
| TSP01896 | — | TSP01897 | — | TSP01898* | 2-1/2NPT 3元件 | 194 | 7-5/8 | 3 | 2 | 4 |
| TSP01901 | — | TSP01899 | — | TSP01900* | 225 | 8-7/8 | 3.75 | 2 | 5 | |
| — | — | TSP01902 | — | TSP01903* | 270 | 10-5/8 | 4.5 | 2 | 5 | |
| — | TSP01904 | — | TSP01905 | 371 | 14-5/8 | 6 | 3 | 6 | ||
| — | — | TSP01906 | — | TSP01907 | 448 | 17-5/8 | 7.5 | 3 | 6 | |
| — | — | TSP01908 | — | TSP01909 | 524 | 20-5/8 | 9 | 3 | 7 | |
| — | — | TSP01910 | — | TSP01911 | 664 | 26-1/8 | 12 | 4 | 8 | |
| — | — | TSP01912 | — | TSP01913 | 803 | 31-5/8 | 15 | 4 | 9 | |
| — | — | TSP01914 | — | TSP01915 | 943 | 37-1/8 | 18 | 5 | 10 | |
| 请注意：双电压加热器是1相的，除非另有说明，否则接线为更高的音量tage。 | ||||||||||
| *仅3相。其他三相加热器可转换为一相。 | ||||||||||
60 watts/in2(9.3 watts/cm2)—典型应用：去离子软化和水
| 型号 | 标称管道 尺寸 | 浸泡长度 | KW | 近似净重 | ||||
| 120V-1Ph | 240V-3Ph | 480V-3Ph | 毫米 | 英寸 | 公斤 | 磅 | ||
| TSP01822 | TSP01823 | TSP01824* | 2-1/2“NPT 2元件 | 194 | 75/8 | 3 | 3 | 7 |
| TSP01825 | TSP01826 | TSP01827* | 270 | 105/8 | 4.5 | 3 | 7 | |
| — | TSP01828 | TSP01829 | 372 | 145/8 | 6 | 4 | 8 | |
| — | TSP01830 | TSP01831 | 448 | 175/8 | 7.5 | 4 | 8 | |
| — | TSP01832 | TSP01833 | 524 | 205/8 | 9 | 4 | 9 | |
| — | TSP01834 | TSP01835 | 664 | 261/8 | 12 | 5 | 10 | |
| — | TSP01836 | TSP01837 | 803 | 315/8 | 15 | 5 | 11 | |
| — | TSP01838 | TSP01839 | 943 | 371/8 | 18 | 5 | 12 | |
| 请注意：双电压加热器是1相的，除非另有说明，否则接线为更高的音量tage。 | ||||||||
| *仅3相。其他三相加热器可转换为一相。 | ||||||||
