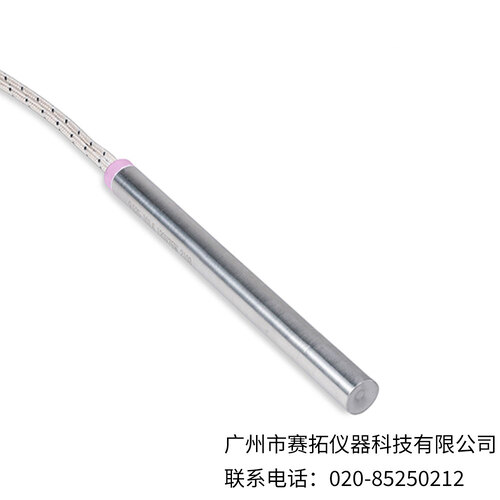

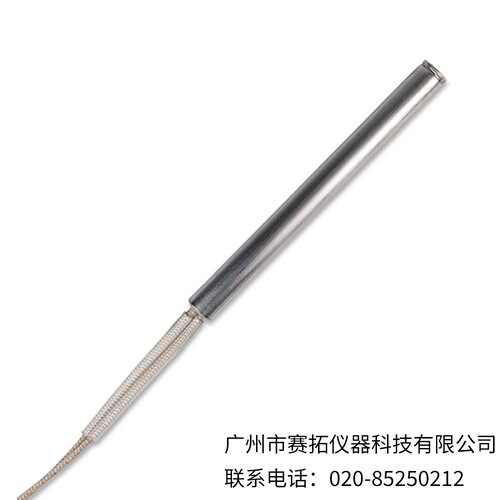

OMEGALUX CIR系列高功率密度棒式加热器以高行业标准制造，仅使用上等材料。这些加热器经过专门设计以增长寿命，并在实验室和工业应用方面提供超出其他任何品牌棒式加热器的性能。其高负荷结构提供了高介电强度以及抗冲击和振动性能。
1/4"标称直径CIR系列（实际直径和容差：0.248" ± 0.055"）0.000"
订货信息：
| 120 Vac型号 |
240 Vac型号 |
护套长度(cm) |
功率 |
W/in2 |
重量lb(kg) |
| CIR-2013/120 |
- |
1-1/4(3) |
100 |
114 |
0.05(0.2) |
| CIR-20131/120 |
- |
1-1/4(3) |
125 |
143 |
0.05(0.2) |
| CIR-2012/120 |
CIR-2012/240 |
1-1/4(3) |
150 |
171 |
0.05(0.2) |
| CIR-2014/120 |
CIR-2014/240 |
1-1/4(3) |
200 |
228 |
0.05(0.2) |
| CIR-2018/120 |
- |
1-1/2(4) |
50 |
43 |
0.06(0.3) |
| CIR-2016/120 |
- |
1-1/2(4) |
85 |
73 |
0.06(0.3) |
| CIR-20151/120 |
CIR-20151/240 |
1-1/2(4) |
100 |
85 |
0.06(0.3) |
| - |
CIR-20152/240 |
1-1/2(4) |
130 |
111 |
0.06(0.3) |
| CIR-2019/120 |
CIR-2019/240 |
1-1/2(4) |
150 |
129 |
0.06(0.3) |
| CIR-2015/120 |
CIR-2015/240 |
1-1/2(4) |
200 |
171 |
0.06(0.3) |
| CIR-20191/120 |
CIR-20191/240 |
1-1/2(4) |
250 |
214 |
0.06(0.3) |
| CIR-2017/120 |
- |
1-3/4(4) |
125 |
85 |
0.06(0.3) |
| CIR-20171/120 |
- |
1-3/4(4) |
175 |
120 |
0.06(0.3) |
| CIR-20172/120 |
CIR-20172/240 |
1-3/4(4) |
250 |
170 |
0.06(0.3) |
| CIR-20173/120 |
- |
1-13/16(5) |
200 |
128 |
0.06(0.3) |
| CIR-20201/120 |
- |
2(5) |
50 |
29 |
0.07(0.3) |
| CIR-20209/120 |
- |
2(5) |
75 |
42 |
0.07(0.3) |
| CIR-20202/120 |
CIR-20202/240 |
2(5) |
100 |
57 |
0.07(0.3) |
| CIR-2021/120 |
CIR-2021/240 |
2(5) |
150 |
85 |
0.07(0.3) |
| CIR-20203/120 |
CIR-20203/240 |
2(5) |
200 |
114 |
0.07(0.3) |
| CIR-2020/120 |
CIR-2020/240 |
2(5) |
250 |
142 |
0.07(0.3) |
| CIR-20204/120 |
CIR-20204/240 |
2(5) |
300 |
171 |
0.07(0.3) |
| CIR-20205/120 |
CIR-20205/240 |
2(5) |
350 |
199 |
0.07(0.3) |
| CIR-20206/120 |
CIR-20206/240 |
2(5) |
400 |
228 |
0.07(0.3) |
| CIR-20207/120 |
CIR-20207/240 |
2(5) |
500 |
262 |
0.07(0.3) |
| CIR-20225/120 |
- |
2-1/4(6) |
75 |
37 |
0.08(0.4) |
| CIR-20221/120 |
CIR-20221/240 |
2-1/4(6) |
100 |
49 |
0.08(0.4) |
| CIR-2023/120 |
CIR-2023/240 |
2-1/4(6) |
125 |
61 |
0.08(0.4) |
| CIR-20222/120 |
CIR-20222/240 |
2-1/4(6) |
150 |
73 |
0.08(0.4) |
| CIR-20226/120 |
- |
2-1/4(6) |
175 |
86 |
0.08(0.4) |
| CIR-20223/120 |
CIR-20223/240 |
2-1/4(6) |
200 |
98 |
0.08(0.4) |
| CIR-2022/120 |
CIR-2022/240 |
2-1/4(6) |
250 |
122 |
0.08(0.4) |
| CIR-20224/120 |
CIR-20224/240 |
2-1/4(6) |
300 |
147 |
0.08(0.4) |
| CIR-20227/120 |
CIR-20227/240 |
2-1/4(6) |
350 |
172 |
0.08(0.4) |
| CIR-2025/120 |
- |
2-3/8(6) |
75 |
34 |
0.09(0.4) |
| CIR-2024/120 |
CIR-2024/240 |
2-3/8(6) |
165 |
75 |
0.09(0.4) |
| - |
CIR-2027/240 |
2-1/2(6) |
100 |
43 |
0.10(0.05) |
| CIR-2028/120 |
CIR-2028/240 |
2-1/2(6) |
200 |
86 |
0.10(0.05) |
| CIR-20251/120 |
CIR-20251/240 |
2-1/2(6) |
250 |
107 |
0.10(0.05) |
| CIR-2029/120 |
CIR-2029/240 |
2-1/2(6) |
300 |
129 |
0.10(0.05) |
| CIR-2026/120 |
CIR-2026/240 |
2-1/2(6) |
400 |
171 |
0.10(0.05) |
| CIR-20252/120 |
CIR-20252/240 |
2-1/2(6) |
500 |
214 |
0.10(0.05) |
| CIR-20253/120 |
- |
2-13/16(7) |
250 |
91 |
0.11(0.05) |
| - |
CIR-20254/240 |
2-13/16(7) |
300 |
109 |
0.11(0.05) |
| CIR-2032/120 |
CIR-2032/240 |
3(8) |
100 |
34 |
0.12(0.05) |
| CIR-2033/120 |
CIR-2033/240 |
3(8) |
150 |
51 |
0.12(0.05) |
| CIR-2031/120 |
CIR-2031/240 |
3(8) |
200 |
68 |
0.12(0.05) |
| CIR-2034/120 |
CIR-2034/240 |
3(8) |
250 |
85 |
0.12(0.05) |
| CIR-20301/120 |
CIR-20301/240 |
3(8) |
300 |
103 |
0.12(0.05) |
| CIR-20302/120 |
CIR-20302/240 |
3(8) |
400 |
137 |
0.12(0.05) |
| CIR-2030/120 |
CIR-2030/240 |
3(8) |
500 |
171 |
0.12(0.05) |
| - |
CIR-2036/240 |
3(8) |
600 |
205 |
0.12(0.05) |
| CIR-2037/120 |
CIR-2037/240 |
3-1/2(9) |
250 |
71 |
0.14(0.06) |
| CIR-2038/120 |
CIR-2038/240 |
3-1/2(9) |
300 |
86 |
0.14(0.06) |
| CIR-2035/120 |
CIR-2035/240 |
3-1/2(9) |
500 |
142 |
0.14(0.06) |
| CIR-2039/120 |
- |
3-13/16(10) |
150 |
37 |
0.15(0.07) |
| - |
CIR-20303/240 |
3-13/16(10) |
500 |
128 |
0.15(0.07) |
| CIR-2045/120 |
CIR-2045/240 |
4(10) |
125 |
30 |
0.16(0.07) |
| CIR-2041/120 |
CIR-2041/240 |
4(10) |
150 |
37 |
0.16(0.07) |
| CIR-2046/120 |
- |
4(10) |
175 |
44 |
0.16(0.07) |
| - |
CIR-2044/240 |
4(10) |
200 |
51 |
0.16(0.07) |
| CIR-2042/120 |
CIR-2042/240 |
4(10) |
250 |
61 |
0.16(0.07) |
| CIR-2040/120 |
CIR-2040/240 |
4(10) |
300 |
73 |
0.16(0.07) |
| CIR-2047/120 |
CIR-2047/240 |
4(10) |
400 |
102 |
0.16(0.07) |
| - |
CIR-2048/240 |
4(10) |
450 |
110 |
0.16(0.07) |
| CIR-2043/120 |
CIR-2043/240 |
4(10) |
500 |
122 |
0.16(0.07) |
| CIR-2049/120 |
- |
4(10) |
550 |
133 |
0.16(0.07) |
| CIR-20401/120 |
CIR-20401/240 |
4-1/2(11) |
300 |
64 |
0.18(0.08) |
| CIR-20402/120 |
CIR-20402/240 |
4-1/2(11) |
500 |
106 |
0.18(0.08) |
| - |
CIR-20403/240 |
4-13/16(12) |
300 |
58 |
0.19(0.09) |
| - |
CIR-20404/240 |
4-13/16(12) |
500 |
97 |
0.19(0.09) |
| CIR-2055/120 |
CIR-2055/240 |
5(13) |
150 |
29 |
0.20(0.09) |
| CIR-2051/120 |
CIR-2051/240 |
5(13) |
200 |
88 |
0.20(0.09) |
| CIR-2052/120 |
CIR-2052/240 |
5(13) |
300 |
57 |
0.20(0.09) |
| CIR-2050/120 |
CIR-2050/240 |
5(13) |
400 |
76 |
0.20(0.09) |
| CIR-2053/120 |
CIR-2053/240 |
5(13) |
500 |
95 |
0.20(0.09) |
| - |
CIR-2054/240 |
5(13) |
750 |
142 |
0.20(0.09) |
| - |
CIR-2056/240 |
5(13) |
1000 |
190 |
0.20(0.09) |
| - |
CIR-2057/240 |
5-1/4(13) |
200 |
44 |
0.21(0.1) |
| - |
CIR-2058/240 |
5-1/2(14) |
600 |
102 |
0.22(0.1) |
| - |
CIR-2059/240 |
5-1/2(14) |
1000 |
171 |
0.24(0.1) |
| CIR-2064/120 |
- |
6(15) |
200 |
31 |
0.24(0.1) |
| CIR-2061/120 |
CIR-2061/240 |
6(15) |
250 |
39 |
0.24(0.1) |
| CIR-2065/120 |
CIR-2065/240 |
6(15) |
400 |
62 |
0.24(0.1) |
| CIR-2060/120 |
CIR-2060/240 |
6(15) |
500 |
78 |
0.24(0.1) |
| CIR-2066/120 |
CIR-2066/240 |
6(15) |
600 |
93 |
0.24(0.1) |
| - |
CIR-2062/240 |
6(15) |
750 |
117 |
0.24(0.1) |
| - |
CIR-2063/240 |
6(15) |
1000 |
155 |
0.24(0.1) |
| - |
CIR-2067/240 |
6-1/2(17) |
600 |
85 |
0.26(0.1) |
| - |
CIR-2068/240 |
6-1/2(17) |
1000 |
143 |
0.26(0.1) |
| CIR-2070/120 |
CIR-2070/240 |
7(18) |
250 |
33 |
0.28(0.1) |
| CIR-2076/120 |
CIR-2076/240 |
7(18) |
600 |
79 |
0.28(0.1) |
| - |
CIR-2079/240 |
7(18) |
1000 |
131 |
0.28(0.1) |
| - |
CIR-2075/240 |
7-1/2(19) |
600 |
73 |
0.30(0.1) |
| - |
CIR-2077/240 |
7-1/2(19) |
1000 |
122 |
0.30(0.1) |
| CIR-2081/120 |
CIR-2081/240 |
8(20) |
300 |
34 |
0.32(0.1) |
| CIR-2082/120 |
- |
8(20) |
400 |
45 |
0.32(0.1) |
| CIR-2085/120 |
CIR-2085/240 |
8(20) |
500 |
57 |
0.32(0.1) |
| CIR-2086/120 |
CIR-2086/240 |
8(20) |
600 |
68 |
0.32(0.1) |
| CIR-2080/120 |
CIR-2080/240 |
8(20) |
700 |
80 |
0.32(0.1) |
| - |
CIR-2089/240 |
8(20) |
1000 |
115 |
0.32(0.1) |
| - |
CIR-2090/240 |
9-1/2(24) |
600 |
57 |
0.38(0.2) |
| - |
CIR-2091/240 |
9-1/2(24) |
1000 |
97 |
0.38(0.2) |
| CIR-2102/120 |
- |
10(25) |
400 |
36 |
0.40(0.2) |
| CIR-2100/120 |
CIR-2100/240 |
10(25) |
600 |
54 |
0.40(0.2) |
| - |
CIR-2101/240 |
10(25) |
1000 |
90 |
0.40(0.2) |
| CIR-2122/120 |
- |
12(30) |
500 |
30 |
0.48(0.2) |
| CIR-2123/120 |
CIR-2123/240 |
12(30) |
600 |
45 |
0.48(0.2) |
| CIR-2120/120 |
CIR-2120/240 |
12(30) |
900 |
67 |
0.48(0.2) |
| - |
CIR-2121/240 |
12(30) |
1000 |
74 |
0.48(0.2) |
| - |
CIR-2150/240 |
15(38) |
1100 |
65 |
0.80(0.4) |
| - |
CIR-2200/240 |
20(51) |
1300 |
57 |
0.80(0.4) |
| - |
CIR-2240/240 |
24(61) |
1500 |
55 |
0.90(0.4) |
† 咨询销售部门。
注：1/4" 直径CIR系列棒式加热器使用22 AWG绞合导线。
订购示例：CIR-1014/120, 1⁄4" 直径，高功率密度棒式加热器。
