服务热线
020-85250202

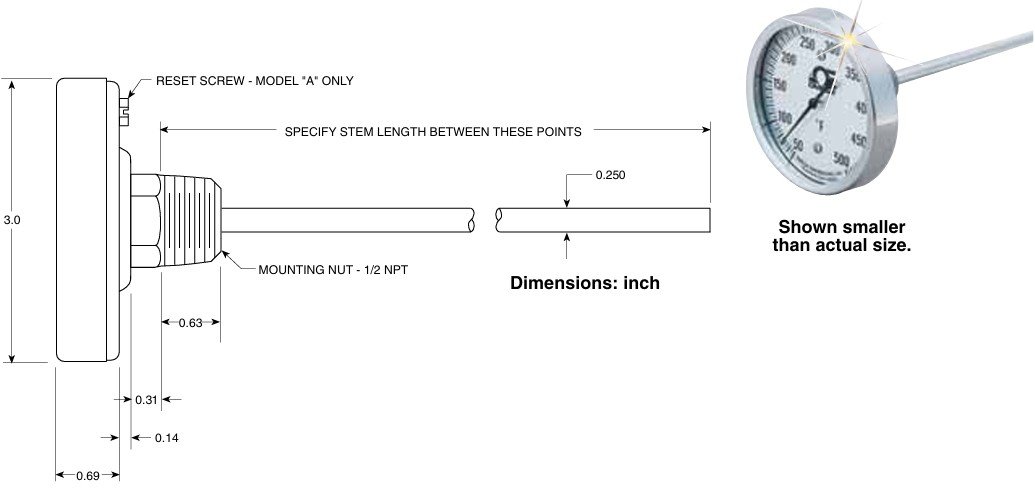

型号A和R，带6英寸阀杆
全不锈钢材质（表盘除外）
密封
A型具有外部指针复位功能
要订购A型和R型，请指定*：型号-范围-阀杆长度-安装
订购示例：
A-0-250F-9-1/2，A型具有0至250℉范围、9“杆和1/2 NPT衬套。
A-0-140F-21/2-1/2，A型具有0至140℉范围、2-1/2“杆和1/2 NPT安装。
R-50-400F-21/2-1/2，R型，范围为50至400℉，2-1/2“阀杆和1/2 NPT安装。
*有关阀杆长度、价格，请访问我们在线
* 阀杆长度至少4英寸。
Ranges and °Divisions
| Fahrenheit | Celsius | Dual Range | |||||
| 范围 | Div | 范围 | Div | ℃(℉) | Div | ||
| -100 to 100℉ | 2° | -50 to 200℃ | 2° | -50 to 100℃(- 50 to 210℉) | 5°/2° | ||
| -80 to 120℉ | 2° | -50 to 100℃ | 2° | -70 to 40℃(-100 to 100℉) | 2°/1° | ||
| -40 to 160℉ | 2° | -50 to 50℃ | 1° | -5 to 50℃(*25 to 125℉) | 1°/1° | ||
| -20 to 120℉ | 2° | -40 to 70℃ | 1° | -40 to 70℃(-40 to 160℉) | 2°/1° | ||
| *0 to 100℉ | 1° | -40 to 160℃ | 2° | -10 to 90℃(0 to 200℉) | 2°/1° | ||
| 0 to 140℉ | 2° | *-30 to 30℃ | 1° | -20 to 120℃(0 to 250℉) | 2°/2° | ||
| *25 to 125℉ | 1° | -20 to 120℃ | 2° | 10 to 150℃(50 to 300℉) | 2°/2° | ||
| 0 to 150℉ | 1° | -10 to 110℃ | 1° | 10 to 260℃(50 to 500℉) | 5°/5° | ||
| 0 to 200℉ | 2° | *0 to 50℃ | 1/2° | 10 to 290℃(50 to 550℉) | 5°/5° | ||
| 0 to 220℉ | 2° | 0 to 100℃ | 1° | 70 to 400℃(150 to 750℉) | 10°/5° | ||
| 0 to 250℉ | 2° | 0 to 150℃ | 1° | 100 to 500℃(200 to 1000℉) | 10°/5° | ||
| 0 to 300℉ | 2° | 0 to 200℃ | 2° | -20 to 70℃(0 to 150℉) | 10°/5° | ||
| 20 to 240℉ | 2° | 0 to 300℃ | 2° | -10 to 115℃(20 to 240℉) | 10°/5° | ||
| -50 to 300℉ | 5° | 0 to 400℃ | 5° | 10 to 200℃(50 to 400℉) | 10°/5° | ||
| 50 to 300℉ | 2° | 100 to 500℃ | 5° | 100 to 500℃(200 to 1000℉) | 10°/5° | ||
| 50 to 400℉ | 5° | -80 to 220℃ | 5° | ||||
| 50 to 500℉ | 5° | *0 to 60℃ | 5° | ||||
| 50 to 550℉ | 5° | 0 to 250℃ | 5° | ||||
| 50 to 750℉ | 10° | 100 to 550℃ | 5° | ||||
| 100 to 800℉ | 10° | ||||||
| 150 to 750℉ | 10° | ||||||
| 200 to 1000℉ | 10° | ||||||
| 250 to 600℉ | 10° | ||||||
| -100 to 200℉ | 10° | ||||||
| -70 to 150℉ | 10° | ||||||

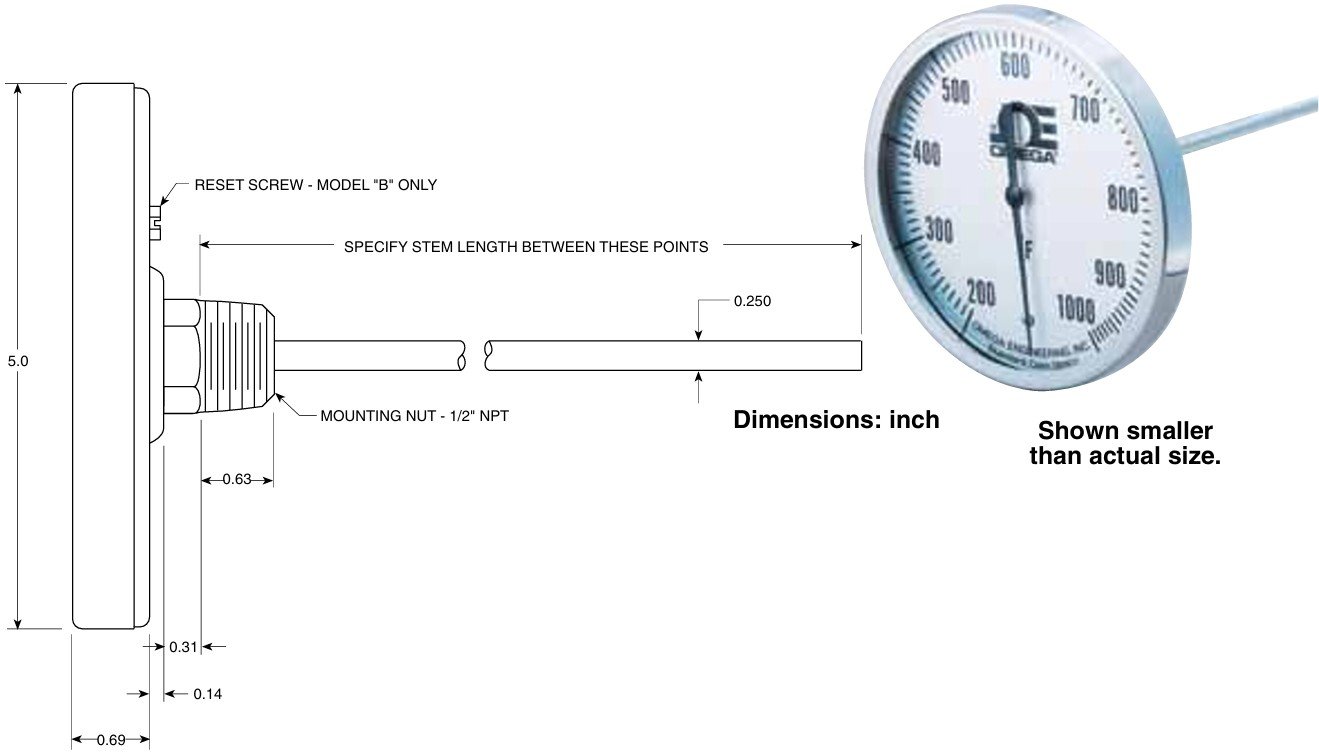

型号B和S
S型带6英寸阀杆的
全不锈钢材质（表盘除外）
密封
型号B具有外部指针复位功能
要订购B和S，请指定*：型号-范围-阀杆长度-安装
订购示例：
B-50-300F-9-1/2，B型，范围为50 to 300℉，9“杆和1/2 NPT衬套.
B-0-200C-21/2-1/4，B型，范围为0 to 200℃，2-1/2“阀杆和1/4 NPT安装.
S-25-125F-4-1/2，S型，范围为25 to 125℉，4英寸阀杆和1/2 NPT安装。
*有关阀杆长度、价格，请访问我们在线
*阀杆长度至少4英寸。
Ranges and °Divisions
| Fahrenheit | Fahrenheit | Celsius | Celsius | |||||||
| 范围 | Div | 范围 | Div | 范围 | Div | 范围 | Div | |||
| -100 to 100℉ | 2° | -50 to 300℉ | 5° | -50 to 200℃ | 1° | 0 to 200℃ | 2° | |||
| -80 to 120℉ | 2° | 50 to 300℉ | 5° | -50 to 100℃ | 1° | 0 to 300℃ | 5° | |||
| -40 to 160℉ | 2° | 50 to 400℉ | 5° | -50 to 50℃ | 1° | 0 to 400℃ | 5° | |||
| *-20 to 120℉ | 2° | 50 to 500℉ | 5° | -40 to 70℃ | 1° | 100 to 500℃ | 5° | |||
| *0 to 100℉ | 2° | 50 to 550℉ | 5° | -40 to 160℃ | 1° | -80 to 220℃ | 5° | |||
| 0 to 140℉ | 2° | 50 to 750℉ | 5° | *-30 to 30℃ | 1° | -20 to 220℃ | 5° | |||
| *25 to 125℉ | 5° | 100 to 800℉ | 10° | -20 to 120℃ | 1° | *0 to 30℃ | 5° | |||
| 0 to 150℉ | 2° | 150 to 750℉ | 10° | -10 to 110℃ | 1° | *0 to 60℃ | 5° | |||
| 0 to 200℉ | 2° | 200 to 1000℉ | 10° | *0 to 50℃ | 1° | 0 to 250℃ | 5° | |||
| 0 to 220℉ | 5° | -100 to 200℉ | 10° | 0 to 100℃ | 1° | 50 to 450℃ | 5° | |||
| 0 to 250℉ | 5° | -70 to 150℉ | 10° | 0 to 150℃ | 2° | 100 to 550℃ | 5° | |||
| 0 to 300℉ | 5° | 200 to 300℉ | 10° | |||||||
| 20 to 240℉ | 5° | 300 to 400℉ | 10° | |||||||
