本系列是高品质、低成本、紧凑型传感器，用于测量无法接近或移动的物体和材料的温度。始终能够以出色的240ms响应时间准确地测量-20℃~500℃（-4℉~932℉）的温度。提供2线或4线两红外（IR）传感器。2线红外传感器将目标温度以4mA~20mA的输出进行传送，为大多数非接触式温度测量应用提供了一个简单的解决方案。4线红外传感器将目标温度以0mV~50mV或热电偶输出（J型、K型或T型）进行传送，并将内部传感器温度以4mA~20mA的输出进行传送。另一个个输出可用于确保传感器在正确的环境温度范围内工作，和防止过热或过冷造成的损坏。它还可以用来近似地指示传感器周围的空气温度。红外传感器配有精密锗透镜，以获得良好的光学效果。
规格
精度：±（读数的1%）或±1℃，以较大者为准
重复性：：±（读数的0.5%）或±0.5℃，以较大者为准
发射率：固定为0.95
响应时间，t90：240ms（90%响应）
光谱范围：8µm~14µm
电源电压：24Vdc（至大28Vdc）
传感器至低电压：6Vdc
至大回路阻抗：900Ω（4~20mA输出）
输出阻抗：56Ω（电压/热电偶输出）

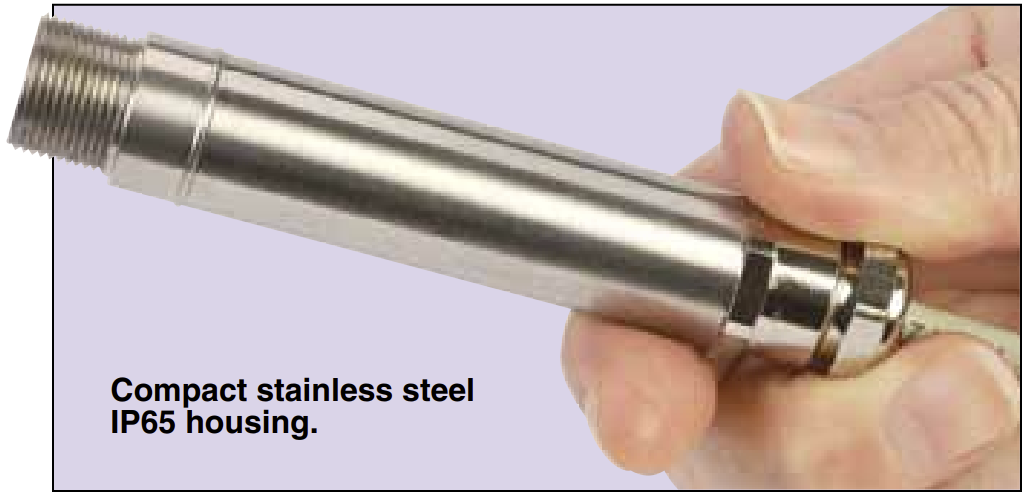

机械结构：不锈钢
尺寸：103Lx18mmD(4.06x0.71")
螺纹安装：M16x1mm节距
电缆长度：1m(3.3')（含）可订购更长的长度
含电缆的重量：95g（3.35oz）
环保评级：IP65
环境温度范围：0℃-70℃(32℉-158℉)
相对湿度：至大95%（无凝结）

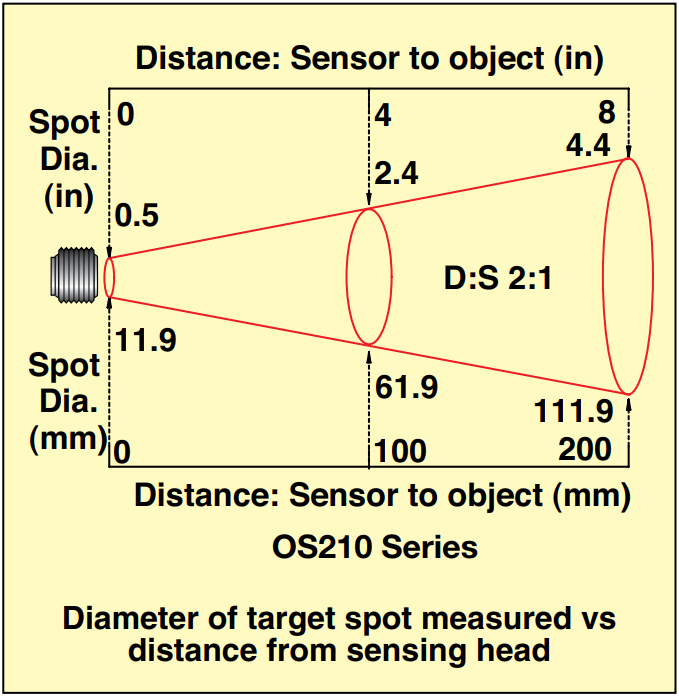

OS210 Series with 2:1 Field of View
| 型号 | 温度范围 | 输出 |
| OS211-LT | -20 to 100℃(-4 to 212℉) | 4 to 20 mA |
| OS211-MT | 0 to 250℃(32 to 482℉) | 4 to 20 mA |
| OS211-LT-MV | -20 to 100℃(-4 to 212℉) | 0 to 50 mV |
| OS211-LT-T | -20 to 100℃(-4 to 212℉) | Type T thermocouple |
| OS211-LT-J | -20 to 100℃(-4 to 212℉) | Type J thermocouple |
| OS211-LT-K | -20 to 100℃(-4 to 212℉) | Type K thermocouple |
| OS211-MT-MV | 0 to 250℃(32 to 482℉) | 0 to 50 mV |
| OS211-MT-T | 0 to 250℃(32 to 482℉) | Type T thermocouple |
| OS211-MT-J | 0 to 250℃(32 to 482℉) | Type J thermocouple |
| OS211-MT-K | 0 to 250℃(32 to 482℉) | Type K thermocouple |

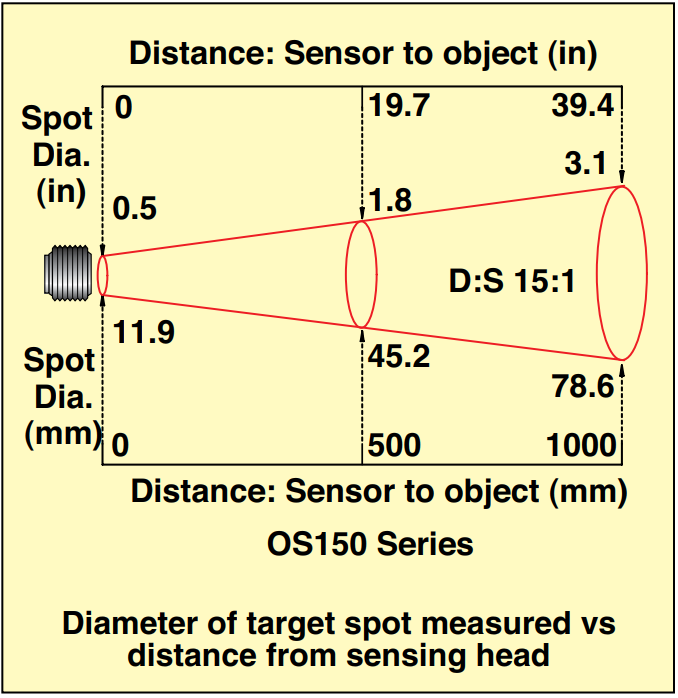

OS150 Series with 15:1 Field of View
| 型号 | 温度范围 | 输出 |
| OS151-LT | -20 to 100℃(-4 to 212℉) | 4 to 20 mA |
| OS151-MT | 0 to 250℃(32 to 482℉) | 4 to 20 mA |
| OS151-HT | 0 to 500℃(32 to 932℉) | 4 to 20 mA |
| OS151-LT-MV | -20 to 100℃(-4 to 212℉) | 0 to 50 mV |
| OS151-LT-T | -20 to 100℃(-4 to 212℉) | Type T thermocouple |
| OS151-LT-J | -20 to 100℃(-4 to 212℉) | Type J thermocouple |
| OS151-LT-K | -20 to 100℃(-4 to 212℉) | Type K thermocouple |
| OS151-MT-MV | 0 to 250℃(32 to 482℉) | 0 to 50 mV |
| OS151-MT-T | 0 to 250℃(32 to 482℉) | Type T thermocouple |
| OS151-MT-J | 0 to 250℃(32 to 482℉) | Type J thermocouple |
| OS151-MT-K | 0 to 250℃(32 to 482℉) | Type K thermocouple |
| OS151-HT-MV | 0 to 500℃(32 to 932℉) | 0 to 50 mV |
| OS151-HT-J | 0 to 500℃(32 to 932℉) | Type J thermocouple |
| OS151-HT-K | 0 to 500℃(32 to 932℉) | Type K thermocouple |

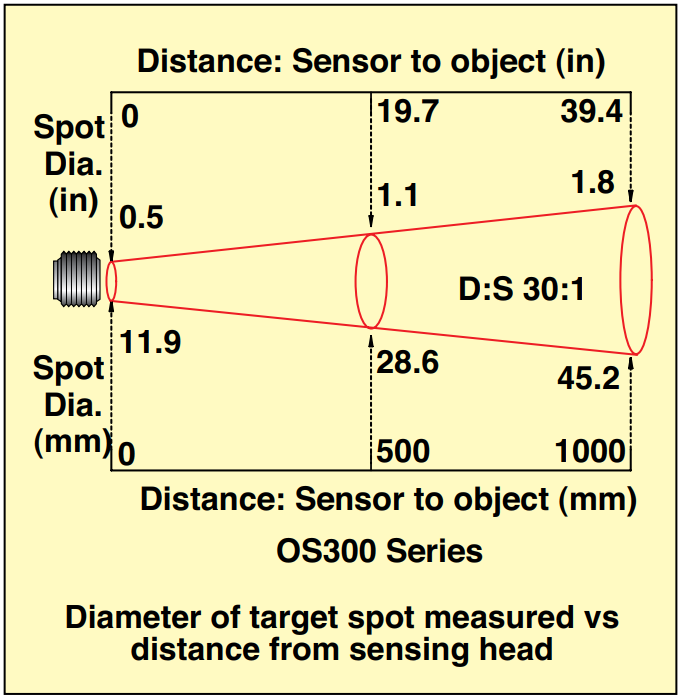

OS300 Series with 30:1 Field of View
| 型号 | 温度范围 | 输出 |
| OS301-LT | -20 to 100℃(-4 to 212℉) | 4 to 20 mA |
| OS301-MT | 0 to 250℃(32 to 482℉) | 4 to 20 mA |
| OS301-HT | 0 to 500℃(32 to 932℉) | 4 to 20 mA |
| OS301-LT-MV | -20 to 100℃(-4 to 212℉) | 0 to 50 mV |
| OS301-LT-T | -20 to 100℃(-4 to 212℉) | Type T thermocouple |
| OS301-LT-J | -20 to 100℃(-4 to 212℉) | Type J thermocouple |
| OS301-LT-K | -20 to 100℃(-4 to 212℉) | Type K thermocouple |
| OS301-MT-MV | 0 to 250℃(32 to 482℉) | 0 to 50 mV |
| OS301-MT-T | 0 to 250℃(32 to 482℉) | Type T thermocouple |
| OS301-MT-J | 0 to 250℃(32 to 482℉) | Type J thermocouple |
| OS301-MT-K | 0 to 250℃(32 to 482℉) | Type K thermocouple |
| OS301-HT-MV | 0 to 500℃(32 to 932℉) | 0 to 50 mV |
| OS301-HT-J | 0 to 500℃(32 to 932℉) | Type J thermocouple |
| OS301-HT-K | 0 to 500℃(32 to 932℉) | Type K thermocouple |
OS800 Series with Close-Focus Field of View
| 型号 | 温度范围 | 输出 |
| OS801-LT | -20 to 100℃(-4 to 212℉) | 4 to 20 mA |
| OS801-MT | 0 to 250℃(32 to 482℉) | 4 to 20 mA |
| OS801-HT | 0 to 500℃(32 to 932℉) | 4 to 20 mA |
| OS801-LT-MV | -20 to 100℃(-4 to 212℉) | 0 to 50 mV |
| OS801-LT-T | -20 to 100℃(-4 to 212℉) | Type T thermocouple |
| OS801-LT-J | -20 to 100℃(-4 to 212℉) | Type J thermocouple |
| OS801-LT-K | -20 to 100℃(-4 to 212℉) | Type K thermocouple |
| OS801-MT-MV | 0 to 250℃(32 to 482℉) | 0 to 50 mV |
| OS801-MT-T | 0 to 250℃(32 to 482℉) | Type T thermocouple |
| OS801-MT-J | 0 to 250℃(32 to 482℉) | Type J thermocouple |
| OS801-MT-K | 0 to 250℃(32 to 482℉) | Type K thermocouple |
| OS801-HT-MV | 0 to 500℃(32 to 932℉) | 0 to 50 mV |
| OS801-HT-J | 0 to 500℃(32 to 932℉) | Type J thermocouple |
| OS801-HT-K | 0 to 500℃(32 to 932℉) | Type K thermocouple |
Power Supplies
| 型号 | 描述 |
| PSR-24S | Regulated power supply, US plug, 90 to 264 Vac input, 24 Vdc output, 400 mA, screw terminals, UL |
| PSR-24L | Regulated power supply, US plug, 90 to 264 Vac input, 24 Vdc output, 400 mA, stripped leads, UL |
| PSR-24L-230 | Regulated power supply, European plug, 230 Vac input, 24 Vdc output, 400 mA, stripped leads, CE |
| PSU-93 | Unregulated power supply, 16 to 23 Vdc, 300 mA maximum, screw terminal |
| TX8-100 | Power/output cable, 30 m(98') |
Options(Not Field Installable)
| 后缀 | 描述 |

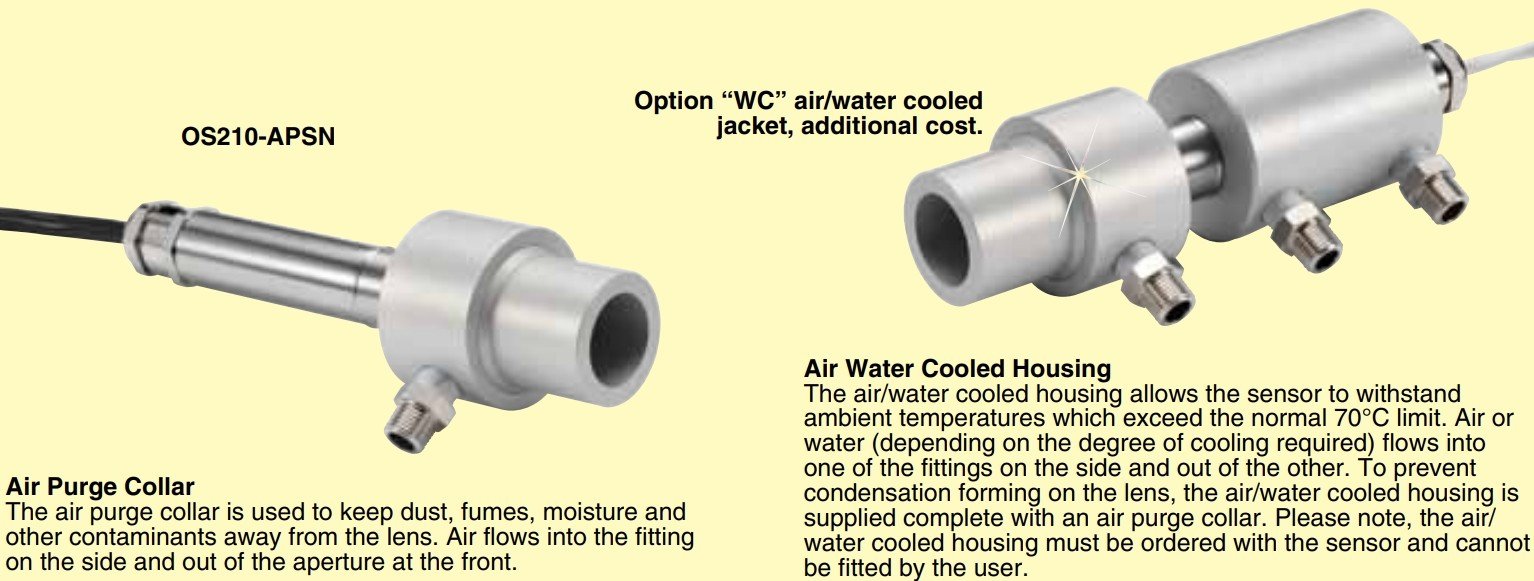

| -WC | For air/water cooled jacket(includes air purge collar); must be ordered with sensor; cannot be retrofitted |
| -CE(*) | Cable extended, for uncooled PC sensor, standard 4 to 20 mA output, 30 m(98') maximum total cable length |
| -CEV(*) | Cable extended, for PC sensor, for 0 to 50 mV output, 30 m(98') maximum total cable length |
| -CET(*) | Cable extended, for PC sensor, for Type T thermocouple output, 30 m(98') maximum total cable length |
| -CEJK(*) | Cable extended, for PC sensor for Types J and K thermocouple output, 30 m(98') maximum total cable length |
| -CEHT(*) | Cable extended, high temperature, for cooled PC standard 4 to 20 mA output, 30 m(98') maximum total cable length |
配件：
| 型号 | 描述 |

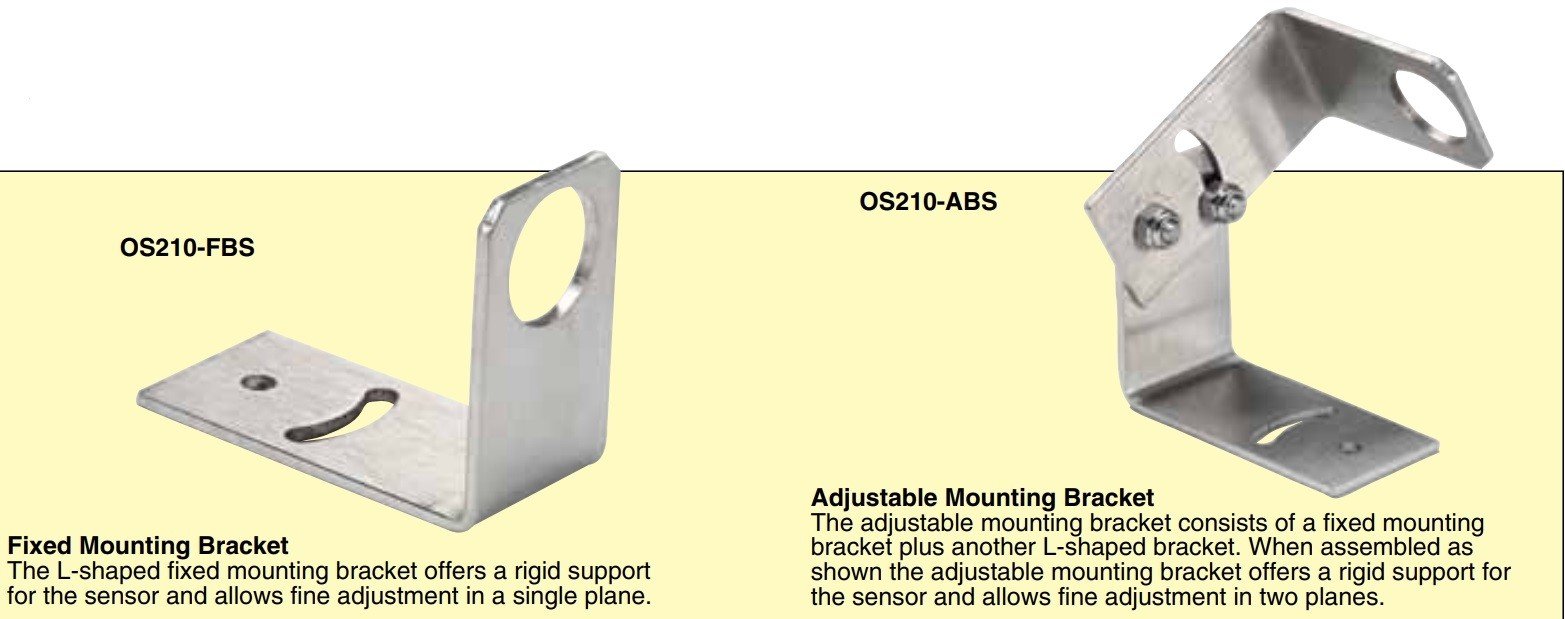

| OS210-FBS | Fixed bracket for compact sensors |
| OS210-ABS | Adjustable bracket for compact sensors |
| OS210-APSW | Air purge collar for compact 2:1 sensors |
| OS210-APSN | Air purge collar for compact 15:1, 30:1 and close-focus sensors |

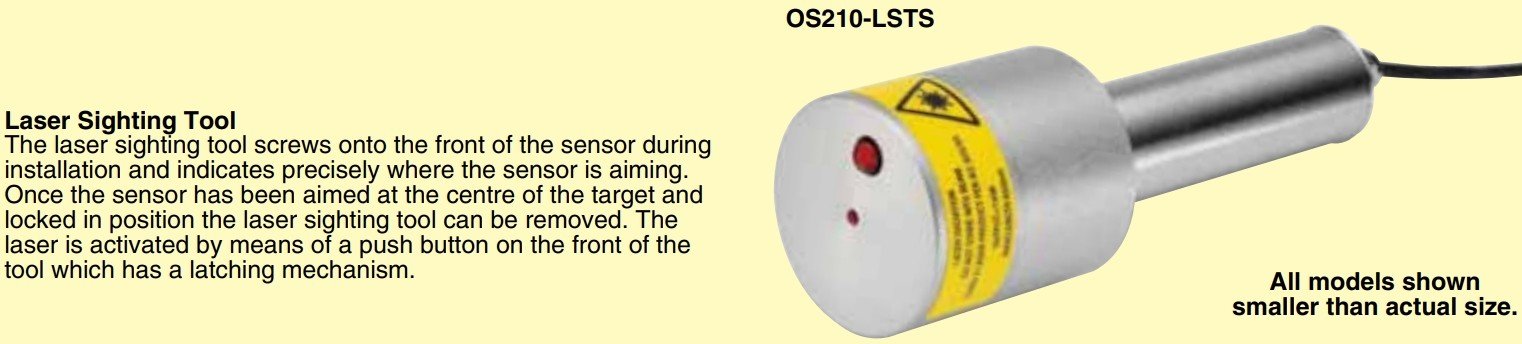

| OS210-LSTS | Laser sighting tool for compact sensors |
| CAL-3-IR† | NIST-traceable calibration |
