特点
简单的管道过渡部分可用于调整标准加热器尺寸各种管道尺寸可增加空气流速，从而更好地传递热，降低护套温度和更长的滤芯寿命。
现场接线端子—黄铜（铁护套）的重型3/8“直径螺栓单元）或不锈钢（铬钢护套单元）和必要的硬件用于现场接线连接。端子位于CAB的侧面单元和CABB单元的底部，并且应位于管道的外部。
提供镀铝钢翅片以改善向空气的热传递。
元件可单独更换。
端子盖选件可防止意外接触带电电气端子（PCN269720），每个电路需要一（1）个。
MONEL护套和MONEL鳍片适用于潮湿条件。还提供使用鳍管元件的TDH加热器。
应用
过程中的增压加热器和舒适的加热管道
转换现有的强制空气干燥器和烘箱
带鼓风机和管道，可用于制造简单的强制空气干燥装置
订货信息：

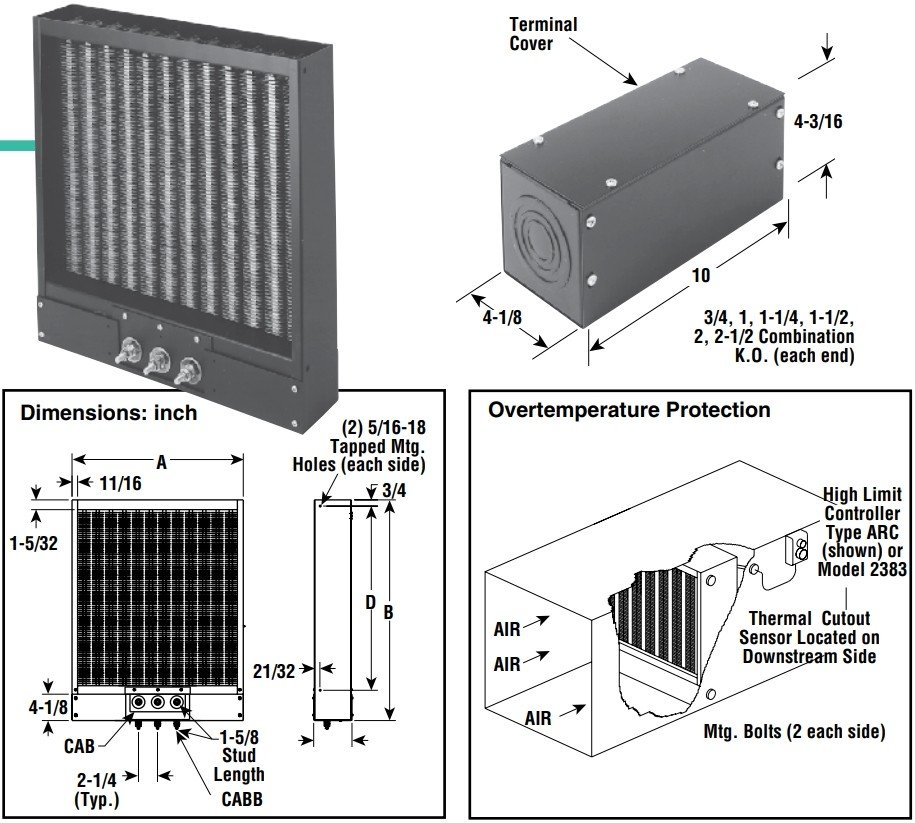

| 防锈铁护套温度 高达750℉型号 | 铬钢护套温度 可达950℉型号 | kW | Volts | Phase | Amps /Circ. | No. Circ. | No. Elem. | 尺寸 | Wt. (Lbs.) | ||
| A | B | D | |||||||||
| CAB—侧端子（26 W/IN2） | |||||||||||
| CAB-62/120V | CAB-611/120V | 6 | 120 | 1 | 50 | 1 | 6 | 10-3/4 | 15-7/8 | 11-1/2 | 25 |
| CAB-62/208V | CAB-611/208V | 6 | 208 | 1 | 28.9 | 1 | 6 | 10-3/4 | 15-7/8 | 11-1/2 | 25 |
| CAB-62/240V | CAB-611/240V | 6 | 240 | 1 | 25 | 1 | 6 | 10-3/4 | 15-7/8 | 11-1/2 | 25 |
| CAB-62/480V | CAB-611/480V | 6 | 480 | 1 | 12.5 | 1 | 6 | 10-3/4 | 15-7/8 | 11-1/2 | 25 |
| CAB-62/208V/3P | CAB-611/208V/3P | 6 | 208 | 3 | 16.7 | 1 | 6 | 10-3/4 | 15-7/8 | 11-1/2 | 25 |
| CAB-62/240V/3P | CAB-611/240V/3P | 6 | 240 | 3 | 14.5 | 1 | 6 | 10-3/4 | 15-7/8 | 11-1/2 | 25 |
| CAB-62/480V/3P | CAB-611/480V/3P | 6 | 480 | 3 | 7.2 | 1 | 6 | 10-3/4 | 15-7/8 | 11-1/2 | 25 |
| CAB-122/208V | CAB-1211/208V | 12 | 208 | 1 | 57.7 | 1 | 9 | 15-3/8 | 18-1/2 | 14-1/8 | 35 |
| CAB-122/240V | CAB-1211/240V | 12 | 240 | 1 | 50 | 1 | 9 | 15-3/8 | 18-1/2 | 14-1/8 | 35 |
| CAB-122/480V | CAB-1211/480V | 12 | 480 | 1 | 25 | 1 | 9 | 15-3/8 | 18-1/2 | 14-1/8 | 35 |
| CAB-122/208V/3P | CAB-1211/208V/3P | 12 | 208 | 3 | 33.4 | 1 | 9 | 15-3/8 | 18-1/2 | 14-1/8 | 35 |
| CAB-122/240V/3P | CAB-1211/240V/3P | 12 | 240 | 3 | 28.9 | 1 | 9 | 15-3/8 | 18-1/2 | 14-1/8 | 35 |
| CAB-122/480V/3P | CAB-1211/480V/3P | 12 | 480 | 3 | 14.5 | 1 | 9 | 15-3/8 | 18-1/2 | 14-1/8 | 35 |
| CAB-152/208V | CAB-1511/208V | 15 | 208 | 1 | 72.1 | 1 | 9 | 15-3/8 | 21-5/8 | 17-1/4 | 40 |
| CAB-152/240V | CAB-1511/240V | 15 | 240 | 1 | 62.5 | 1 | 9 | 15-3/8 | 21-5/8 | 17-1/4 | 40 |
| CAB-152/480V | CAB-1511/480V | 15 | 480 | 1 | 31.3 | 1 | 9 | 15-3/8 | 21-5/8 | 17-1/4 | 40 |
| CAB-152/208V/3P | CAB-1511/208V/3P | 15 | 208 | 3 | 41.7 | 1 | 9 | 15-3/8 | 21-5/8 | 17-1/4 | 40 |
| CAB-152/240V/3P | CAB-1511/240V/3P | 15 | 240 | 3 | 36.1 | 1 | 9 | 15-3/8 | 21-5/8 | 17-1/4 | 40 |
| CAB-152/480V/3P | CAB-1511/480V/3P | 15 | 480 | 3 | 18.1 | 1 | 9 | 15-3/8 | 21-5/8 | 17-1/4 | 40 |
| CAB-202/208V | CAB-2011/208V | 20 | 208 | 3 | 55.6 | 1 | 12 | 20-1/8 | 21-5/8 | 17-1/4 | 55 |
| CAB-202/240V | CAB-2011/240V | 20 | 240 | 3 | 48.2 | 1 | 12 | 20-1/8 | 21-5/8 | 17-1/4 | 55 |
| CAB-202/480V | CAB-2011/480V | 20 | 480 | 3 | 24.1 | 1 | 12 | 20-1/8 | 21-5/8 | 17-1/4 | 55 |
| CAB-252/208V | CAB-2511/208V | 25 | 208 | 3 | 69.5 | 1 | 12 | 20-1/8 | 26-1/8 | 21-3/4 | 65 |
| CAB-252/240V | CAB-2511/240V | 25 | 240 | 3 | 60.2 | 1 | 12 | 20-1/8 | 26-1/8 | 21-3/4 | 65 |
| CAB-252/480V | CAB-2511/480V | 25 | 480 | 3 | 30.1 | 1 | 12 | 20-1/8 | 26-1/8 | 21-3/4 | 65 |
| -- | CAB-3011/480V | 30 | 480 | 3 | 18.1 | 2 | 18 | 29-1/2 | 21-5/8 | 17-1/4 | 75 |
| CAB-402/208V | CAB-4011/208V | 40 | 208 | 3 | 55.6 | 2 | 18 | 29-1/2 | 27-3/8 | 23 | 90 |
| CAB-402/240V | CAB-4011/240V | 40 | 240 | 3 | 48.2 | 2 | 18 | 29-1/2 | 27-3/8 | 23 | 90 |
| CAB-402/480V | CAB-4011/480V | 40 | 480 | 3 | 24.1 | 2 | 18 | 29-1/2 | 27-3/8 | 23 | 90 |
| CAB-502/208V | CAB-5011/208V | 50 | 208 | 3 | 69.5 | 2 | 18 | 29-1/2 | 33-1/8 | 28-3/4 | 110 |
| CAB-502/240V | CAB-5011/240V | 50 | 240 | 3 | 60.2 | 2 | 18 | 29-1/2 | 33-1/8 | 28-3/4 | 110 |
| CAB-502/480V | CAB-5011/480V | 50 | 480 | 3 | 30.1 | 2 | 18 | 29-1/2 | 33-1/8 | 28-3/4 | 110 |
| CAB-752/208V | CAB-7511/208V | 75 | 208 | 3 | 69.5 | 3 | 27 | 44-7/16 | 42-1/8 | 37-3/4 | 200 |
| CAB-752/240V | CAB-7511/240V | 75 | 240 | 3 | 60.2 | 3 | 27 | 44-7/16 | 42-1/8 | 37-3/4 | 200 |
| CAB-752/480V | CAB-7511/480V | 75 | 480 | 3 | 30.1 | 3 | 27 | 44-7/16 | 42-1/8 | 37-3/4 | 200 |
| CAB-1002/208V | CAB-10021/208V | 100 | 208 | 3 | 92.6 | 3 | 27 | 44-7/16 | 47-1/2 | 43-1/8 | 220 |
| CAB-1002/208V | CAB-10021/208V | 100 | 240 | 3 | 80.3 | 3 | 27 | 44-7/16 | 47-1/2 | 43-1/8 | 220 |
| CAB-1002/480V | CAB-10021/480V | 100 | 480 | 3 | 40.1 | 3 | 27 | 44-7/16 | 47-1/2 | 43-1/8 | 220 |
| CABB—底部端子（26W/In2） | |||||||||||
| -- | CABB-611/240 | 6 | 240 | 3 | 14.5 | 1 | 6 | 10-3/4 | 15-7/8 | 11-1/2 | 25 |
| -- | CABB-611/480 | 6 | 480 | 3 | 7.2 | 1 | 6 | 10-3/4 | 15-7/8 | 11-1/2 | 25 |
| -- | CABB-1211/208 | 12 | 208 | 3 | 33.4 | 1 | 9 | 15-3/8 | 18-1/2 | 14-1/8 | 35 |
| -- | CABB-1211/240 | 12 | 240 | 3 | 28.9 | 1 | 9 | 15-3/8 | 18-1/2 | 14-1/8 | 35 |
| -- | CABB-1211/480 | 12 | 480 | 3 | 14.5 | 1 | 9 | 15-3/8 | 18-1/2 | 14-1/8 | 35 |
| -- | CABB-2011/480 | 20 | 480 | 3 | 24.1 | 1 | 12 | 20-1/8 | 21-5/8 | 17-1/4 | 55 |
| CABB-252/480 | CABB-2511/480 | 25 | 480 | 3 | 30.1 | 1 | 12 | 29-1/2 | 26-1/8 | 21-3/4 | 65 |
| CABB-402/480 | CABB-4011/480 | 40 | 480 | 3 | 24.1 | 2 | 18 | 29-1/2 | 27-3/8 | 23 | 90 |
| CABB-502/480 | CABB-5011/480 | 50 | 480 | 3 | 30.1 | 2 | 18 | 29-1/2 | 33-1/8 | 28-3/4 | 110 |
| CABB-752/480 | CABB-7511/480 | 75 | 480 | 3 | 30.1 | 3 | 27 | 44-7/16 | 42-1/8 | 37-3/4 | 200 |
| CABB-1002/480 | CABB-10021/480 | 100 | 480 | 3 | 40.1 | 3 | 27 | 44-7/16 | 47-1/2 | 43-1/8 | 220 |
