Omegalux®MB云母绝缘带加热器有单件式或两件式结构，有多种直径和宽度可供选择。一体式带式加热器的内径从1到3-1/2英寸不等。两件式带式加热器的直径从4英寸到11-1/2英寸不等。电气连接通过接线端子或绝缘和不锈钢编织引线进行。
两片式带式加热器的每一半额定电压为120伏，并联用于120伏工作，或串联用于240伏工作。
可用的选项包括不同的尺寸和端子、特殊的瓦数或额定电压、柔性导管以及孔或切口。可以制造两个或更多部分以适应更大的直径。有关详细信息，请联系工程部。
当将物体加热到较高温度时，应使用较低瓦特密度的加热器，以防止过热和缩短加热器寿命。瓦特密度是加热器的总瓦数除以加热器的加热表面积。使用上表为应用选择至大推荐瓦特密度。通过在120伏电压下运行240伏加热器，可以实现更低的瓦特密度。在240伏特上运行120伏加热器时，瓦数和瓦特密度会降低4倍。
例如，型号MBH-1715300A/240是一款1.75英寸内径一体式带式加热器，额定功率为300瓦，在240伏时每平方英寸为36瓦。当在120伏特下运行相同的加热器时，瓦数和瓦特密度降低到每平方英寸75瓦和9瓦。
| Maximum Operating Temperature | |
| Operating | Maximum Recommended |
| Temperature* | Watts per Square Inch |
| 300℉(149℃) | 40 |
| 400℉(204℃) | 30 |
| 500℉(260℃) | 21 |
| 600℉(316℃) | 12 |
| 700℉(371℃) | 10 |
| 800℉(427℃) | 10 |
| 900℉(482℃) | 10 |
一体式带状加热器

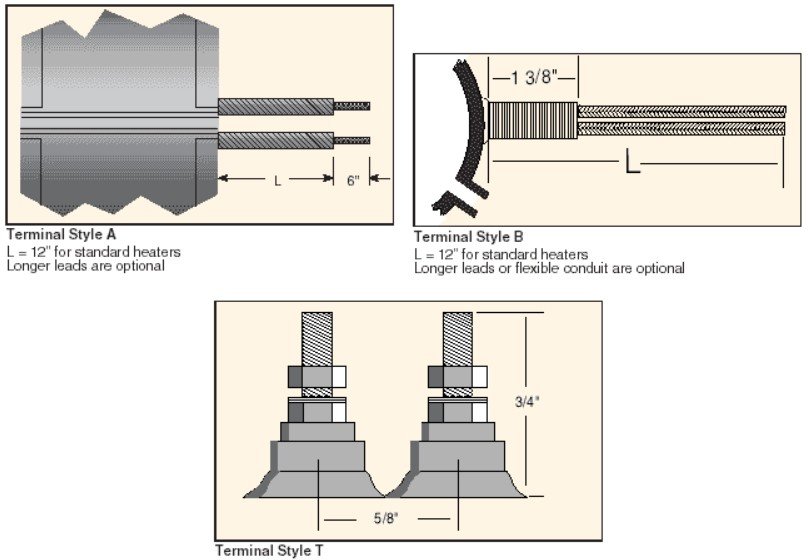

| 120Vac型号 | 240Vac型号 | I.D. in. (mm) | Width in. (mm) | Watts | W/in2 | Terminal Style | Weight lbs. (kg) |
| MBH-101085A/120 | - | 1.00(25) | 1.0(25) | 85 | 27 | A | 0.25(0.11) |
| MBH-101085B/120 | - | 1.00(25) | 1.0(25) | 85 | 27 | B | 0.25(0.11) |
| MBH-1015130A/120 | - | 1.00(25) | 1.5(38) | 130 | 27 | A | 0.37(0.17) |
| MBH-1015130B/120 | - | 1.00(25) | 1.5(38) | 130 | 27 | B | 0.37(0.17) |
| MBH-1210100A/120 | - | 1.25(32) | 1.0(25) | 100 | 25 | A | 0.37(0.17) |
| MBH-1210100B/120 | - | 1.25(32) | 1.0(25) | 100 | 25 | B | 0.37(0.17) |
| MBH-1210150A/120 | - | 1.25(32) | 1.0(25) | 150 | 38 | A | 0.37(0.17) |
| MBH-1210150B/120 | - | 1.25(32) | 1.0(25) | 150 | 38 | B | 0.37(0.17) |
| MBH-1215150A/120 | - | 1.25(32) | 1.5(38) | 150 | 25 | A | 0.43(0.20) |
| MBH-1215150B/120 | - | 1.25(32) | 1.5(38) | 150 | 25 | B | 0.43(0.20) |
| MBH-1215200A/120 | - | 1.25(32) | 1.5(38) | 200 | 34 | A | 0.43(0.20) |
| MBH-1215200B/120 | - | 1.25(32) | 1.5(38) | 200 | 34 | B | 0.43(0.20) |
| MBH-1515175A/120 | MBH-1515175A/240 | 1.50(38) | 1.5(38) | 175 | 24 | A | 0.50(0.23) |
| MBH-1515175B/120 | MBH-1515175B/240 | 1.50(38) | 1.5(38) | 175 | 24 | B | 0.50(0.23) |
| MBH-1515275A/120 | MBH-1515275A/240 | 1.50(38) | 1.5(38) | 275 | 39 | A | 0.50(0.23) |
| MBH-1515275B/120 | MBH-1515275B/240 | 1.50(38) | 1.5(38) | 275 | 39 | B | 0.50(0.23) |
| MBH-1715180A/120 | MBH-1715180A/240 | 1.75(44) | 1.5(38) | 180 | 22 | A | 0.56(0.25) |
| MBH-1715180B/120 | MBH-1715180B/240 | 1.75(44) | 1.5(38) | 180 | 22 | B | 0.56(0.25) |
| MBH-1715300A/120 | MBH-1715300A/240 | 1.75(44) | 1.5(38) | 300 | 36 | A | 0.56(0.25) |
| MBH-1715300B/120 | MBH-1715300B/240 | 1.75(44) | 1.5(38) | 300 | 36 | B | 0.56(0.25) |
| MBH-2015200A/120 | MBH-2015200A/240 | 2.00(51) | 1.5(38) | 200 | 21 | A | 0.68(0.31) |
| MBH-2015200B/120 | MBH-2015200B/240 | 2.00(51) | 1.5(38) | 200 | 21 | B | 0.68(0.31) |
| MBH-2015375A/120 | MBH-2015375A/240 | 2.00(51) | 1.5(38) | 375 | 40 | A | 0.68(0.31) |
| MBH-2015375B/120 | MBH-2015375B/240 | 2.00(51) | 1.5(38) | 375 | 40 | B | 0.68(0.31) |
| MBH-2515300A/120 | MBH-2515300A/240 | 2.50(64) | 1.5(38) | 300 | 25 | A | 0.81(0.34) |
| MBH-2515450A/120 | MBH-2515450A/240 | 2.50(64) | 1.5(38) | 450 | 38 | A | 0.81(0.34) |
| MBH-2520600A/120 | MBH-2520600A/240 | 2.50(64) | 2.0(51) | 600 | 38 | A | 0.87(0.39) |
| MBH-2525750A/120 | MBH-2525750A/240 | 2.50(64) | 2.5(64) | 750 | 38 | A | 0.93(0.42) |
| MBH-2530900A/120 | MBH-2530900A/240 | 2.50(64) | 3.0(76) | 900 | 38 | A | 1.06(0.48) |
| MBH-3015400T/120 | MBH-3015400T/240 | 3.00(76) | 1.5(38) | 400 | 28 | T | 0.56(0.25) |
| MBH-3515450T/120 | MBH-3515450T/240 | 3.50(89) | 1.5(38) | 450 | 27 | T | 0.68(0.31) |
| MBH-3520500T/120 | MBH-3520500T/240 | 3.50(89) | 2.0(51) | 500 | 23 | T | 0.87(0.39) |
两件式结构**
| 型号 | I.D. in. (mm) | Width in. (mm) | Watts | W/in2 | Terminal Style | Weight lbs. (kg) |
| MBH-4015550T | 4.00(102) | 1.5(38) | 550 | 30 | T | 0.50(0.23) |
| MBH-4020600T | 4.00(102) | 2.0(51) | 600 | 25 | T | 0.62(0.28) |
| MBH-4515650T | 4.50(114) | 1.5(38) | 650 | 31 | T | 0.56(0.25) |
| MBH-5015750T | 5.00(127) | 1.5(38) | 750 | 31 | T | 0.68(0.31) |
| MBH-5020800T | 5.00(127) | 2.0(51) | 800 | 26 | T | 1.00(0.45) |
| MBH-5515750T | 5.50(140) | 1.5(38) | 750 | 29 | T | 0.95(0.43) |
| MBH-5520900T | 5.50(140) | 2.0(51) | 900 | 26 | T | 1.00(0.45) |
| MBH-6015900T | 6.00(152) | 1.5(38) | 900 | 32 | T | 0.95(0.43) |
| MBH-60201000T | 6.00(152) | 2.0(51) | 1000 | 27 | T | 1.12(0.51) |
| MBH-65151100T | 6.50(165) | 1.5(38) | 1100 | 36 | T | 1.12(0.51) |
| MBH-70151000T | 7.00(178) | 1.5(38) | 1000 | 30 | T | 1.12(0.51) |
| MBH-80151100T | 8.00(203) | 1.5(38) | 1100 | 29 | T | 1.25(0.57) |
| MBH-90151200T | 9.00(229) | 1.5(38) | 1200 | 28 | T | 1.37(0.62) |
| MBH-100151400T | 10.00(254) | 1.5(38) | 1400 | 30 | T | 1.50(0.68) |
| MBH-110201200T | 11.00(279) | 2.0(51) | 1200 | 18 | T | 2.00(0.91) |
| MBH-115151650T | 11.50(292) | 1.5(38) | 1650 | 31 | T | 1.68(0.76) |
**注:两件式加热器可在120或240 Vac上运行。每一半额定电压为120 V，并联电压为120 V，串联电压为240 V
