规格：
功率：100 to 1000 Watt
电源：120 or 240V, 1 phase
功率密度：17 to 40 W/in2
护套：
RIN型：直径5/8或3/4“的铬镍铬合金护套
RINO型：直径为5/8或3/4“的不锈钢护套
螺丝塞：
RIN型：1/2或3/4 NPT黄铜接头
RINO型：1/2或3/4 NPT钢接头

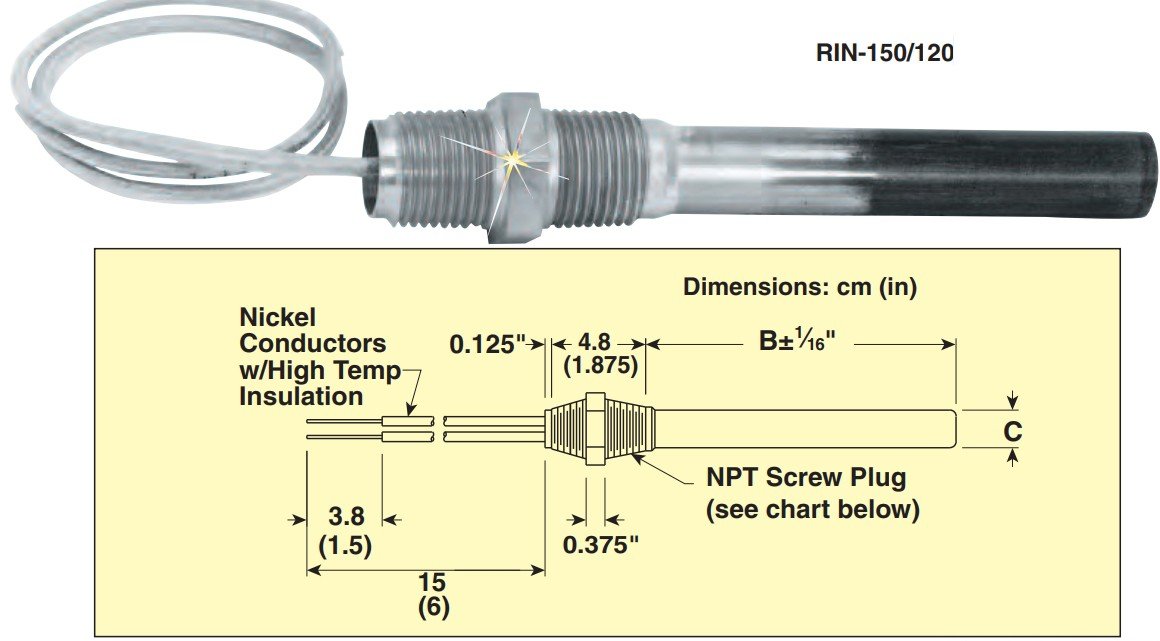

螺旋塞浸没式加热器采用双管螺纹结构，可轻松安装到您的工艺中并快速连接电气导管。
注意和警告!
如果产品使用不当或由不合格人员安装或使用，可能会导致火灾和触电。查看后盖内部的附加警告。
订货信息：
| Watts | Volts | Phase | W/in2 | 尺寸(英寸) | Pipe Thd. | 型号 | Wt. lb(kg) | |
| B | C | |||||||
| RIN Series with Incoloy sheath—brass screw plug | ||||||||
| 100 | 120 | 1 | 30 | 1-3/4 | 5/8 | 1/2 | RIN-10/120 | 3(1) |
| 250 | 120 | 1 | 35 | 3-3/4 | 5/8 | 1/2 | RIN-25/120 | 4.5(2) |
| 250 | 240 | 1 | 35 | 3-3/4 | 5/8 | 1/2 | RIN-25/240 | 4.5(2) |
| 500 | 120 | 1 | 40 | 8 | 5/8 | 1/2 | RIN-50/120 | 10(5) |
| 500 | 240 | 1 | 40 | 8 | 5/8 | 1/2 | RIN-50/240 | 10(5) |
| 750 | 120 | 1 | 40 | 12 | 5/8 | 1/2 | RIN-75/120 | 14(6) |
| 750 | 240 | 1 | 40 | 12 | 5/8 | 1/2 | RIN-75/240 | 14(6) |
| 300 | 120 | 1 | 25 | 5 | 3/4 | 3/4 | RIN-130/120 | 8(3) |
| 300 | 240 | 1 | 25 | 5 | 3/4 | 3/4 | RIN-130/240 | 8(3) |
| 500 | 120 | 1 | 30 | 6-1/2 | 3/4 | 3/4 | RIN-150/120 | 9(4) |
| 500 | 240 | 1 | 30 | 6-1/2 | 3/4 | 3/4 | RIN-150/240 | 9(4) |
| 750 | 120 | 1 | 30 | 10-3/4 | 3/4 | 3/4 | RIN-175/120 | 13(6) |
| 750 | 240 | 1 | 30 | 10-3/4 | 3/4 | 3/4 | RIN-175/240 | 13(6) |
| 1000 | 120 | 1 | 30 | 13-3/4 | 3/4 | 3/4 | RIN-1100/120 | 15(7) |
| 1000 | 240 | 1 | 30 | 13-3/4 | 3/4 | 3/4 | RIN-1100/240 | 15(7) |
| RINO Series with stainless steel sheath—steel screw plug | ||||||||
| 150 | 120 | 1 | 20 | 33/4 | 5/8 | 1/2 | RINO-15/120 | 4(2) |
| 150 | 240 | 1 | 20 | 33/4 | 5/8 | 1/2 | RINO-15/240 | 4(2) |
| 300 | 120 | 1 | 25 | 8 | 5/8 | 1/2 | RINO-30/120 | 10(5) |
| 300 | 240 | 1 | 25 | 8 | 5/8 | 1/2 | RINO-30/240 | 10(5) |
| 500 | 120 | 1 | 25 | 12 | 5/8 | 1/2 | RINO-50/120 | 14(6) |
| 500 | 240 | 1 | 25 | 12 | 5/8 | 1/2 | RINO-50/240 | 14(6) |
| 200 | 120 | 1 | 17 | 5 | 3/4 | 3/4 | RINO-120/120 | 8(3) |
| 200 | 240 | 1 | 17 | 5 | 3/4 | 3/4 | RINO-120/240 | 8(3) |
| 300 | 120 | 1 | 18 | 6-1/2 | 3/4 | 3/4 | RINO-130/120 | 9(4) |
| 300 | 240 | 1 | 18 | 6-1/2 | 3/4 | 3/4 | RINO-130/240 | 9(4) |
| 500 | 120 | 1 | 20 | 10-3/4 | 3/4 | 3/4 | RINO-150/120 | 13(6) |
| 500 | 240 | 1 | 20 | 10-3/4 | 3/4 | 3/4 | RINO-150/240 | 13(6) |
| 600 | 120 | 1 | 18 | 13-3/4 | 3/4 | 3/4 | RINO-160/120 | 15(7) |
| 600 | 240 | 1 | 18 | 13-3/4 | 3/4 | 3/4 | RINO-160/240 | 15(7) |
