紧凑的.475“直径电解抛光不锈钢护套；3元素设计
提供通用外壳型号，也提供NEMA-1级外壳或防爆外壳型号
2“NPT电抛光不锈钢螺塞
3至18 kW
208、240和480V
坚固、可靠OMEGALUX品质
OMEGALUX EMTS-3系列包括3个加热元件，全部在紧凑型内2“NPT接头。电抛光不锈钢护套设计适合适用于工业应用中常见的温和腐蚀性溶液。
订货信息：

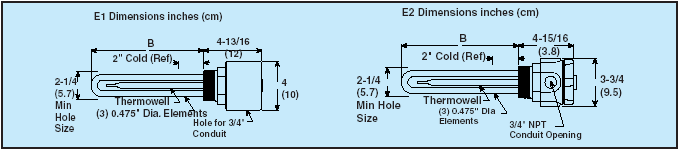

| kW | W/in2 | Dim.B.cm(in) | Wtkg(lb) | E1 General Purpose Enclosure1 | E2 Moisture Res/Exp. Resis Enc2 |
| 208Vac | |||||
| 3 | 47 | 7-3/4(20) | 5(2) | EMTS-330/208V | EMTS-330E2/208V |
| 4.5 | 44 | 11-3/4(30) | 6(3) | EMTS-345/208V | EMTS-345E2/208V |
| 6 | 38 | 17-3/4(45) | 6(3) | EMTS-360/208V | EMTS-360E2/208V |
| 7.5 | 43 | 19-1/2(50) | 6(3) | EMTS-375/208V | EMTS-375E2/208V |
| 9 | 40 | 24-7/8(63) | 7(3) | EMTS-390/208V | EMTS-390E2/208V |
| 12 | 40 | 32-7/16(62) | 9(4) | EMTS-3120/208V | EMTS-3120E2/208V |
| 15 | 41 | 40-3/8(82) | 10(5) | EMTS-3150/208V | EMTS-3150E2/208V |
| 18 | 41 | 47-7/8(101) | 12(5) | EMTS-3180/208V | EMTS-3180E2/208V |
| 240 Vac | |||||
| 3 | 47 | 7-3/4(20) | 5(2) | EMTS-330/240V | EMTS-330E2/240V |
| 4.5 | 44 | 11-3/4(30) | 6(3) | EMTS-345/240V | EMTS-345E2/240V |
| 6 | 38 | 17-3/4(45) | 6(3) | EMTS-360/240V | EMTS-360E2/240V |
| 7.5 | 43 | 19-1/2(50) | 6(3) | EMTS-375/240V | EMTS-375E2/240V |
| 9 | 40 | 24-7/8(63) | 7(3) | EMTS-390/240V | EMTS-390E2/240V |
| 12 | 40 | 32-7/16(82) | 9(4) | EMTS-3120/240V | EMTS-3120E2/240V |
| 15 | 41 | 40-3/8(101) | 10(5) | EMTS-3150/240V | EMTS-3150E2/240V |
| 18 | 41 | 47-7/8(120) | 12(5) | EMTS-3180/240V | EMTS-3180E2/240V |
| 480 Vac | |||||
| 3 | 47 | 7-3/4(20) | 5(2) | EMTS-330/480V | EMTS-330E2/480V |
| 4.5 | 44 | 11-3/4(30) | 6(3) | EMTS-345/480V | EMTS-345E2/480V |
| 6 | 38 | 17-3/4(45) | 6(3) | EMTS-360/480V | EMTS-360E2/480V |
| 7.5 | 43 | 19-1/2(50) | 6(3) | EMTS-375/480V | EMTS-375E2/480V |
| 9 | 40 | 24-7/8(63) | 7(3) | EMTS-390/480V | EMTS-390E2/480V |
| 12 | 40 | 32-7/16(82) | 9(4) | EMTS-3120/480V | EMTS-3120E2/480V |
| 15 | 41 | 40-3/8(101) | 10(5) | EMTS-3150/480V | EMTS-3150E2/480V |
| 18 | 41 | 47-7/8(120) | 12(5) | EMTS-3180/480V | EMTS-3180E2/480V |
三相电源订货信息：
| kW | W/in2 | Dim.B.cm(in) | Wtkg(lb) | E1 General Purpose Enclosure1 | E2 Moisture Res/Exp. Resis Enc2 |
| 208Vac | |||||
| 3 | 47 | 7-3/4(20) | 5(2) | EMTS-330/208V/3P | EMTS-330E2/208V/3P |
| 4.5 | 44 | 11-3/4(30) | 6(3) | EMTS-345/208V/3P | EMTS-345E2/208V/3P |
| 6 | 38 | 17-3/4(45) | 6(3) | EMTS-360/208V/3P | EMTS-360E2/208V/3P |
| 7.5 | 43 | 19-1/2(50) | 6(3) | EMTS-375/208V/3P | EMTS-375E2/208V/3P |
| 9 | 40 | 24-7/8(63) | 7(3) | EMTS-390/208V/3P | EMTS-390E2/208V/3P |
| 12 | 40 | 32-7/16(62) | 9(4) | EMTS-3120/208V/3P | EMTS-3120E2/208V/3P |
| 15 | 41 | 40-3/8(82) | 10(5) | EMTS-3150/208V/3P | EMTS-3150E2/208V/3P |
| 18 | 41 | 47-7/8(101) | 12(5) | EMTS-3180/208V/3P | EMTS-3180E2/208V/3P |
| 240 Vac | |||||
| 3 | 47 | 7-3/4(20) | 5(2) | EMTS-330/240V/3P | EMTS-330E2/240V/3P |
| 4.5 | 44 | 11-3/4(30) | 6(3) | EMTS-345/240V/3P | EMTS-345E2/240V/3P |
| 6 | 38 | 17-3/4(45) | 6(3) | EMTS-360/240V/3P | EMTS-360E2/240V/3P |
| 7.5 | 43 | 19-1/2(50) | 6(3) | EMTS-375/240V/3P | EMTS-375E2/240V/3P |
| 9 | 40 | 24-7/8(63) | 7(3) | EMTS-390/240V/3P | EMTS-390E2/240V/3P |
| 12 | 40 | 32-7/16(82) | 9(4) | EMTS-3120/240V/3P | EMTS-3120E2/240V/3P |
| 15 | 41 | 40-3/8(101) | 10(5) | EMTS-3150/240V/3P | EMTS-3150E2/240V/3P |
| 18 | 41 | 47-7/8(120) | 12(5) | EMTS-3180/240V/3P | EMTS-3180E2/240V/3P |
| 480 Vac | |||||
| 3 | 47 | 7-3/4(20) | 5(2) | EMTS-330/480V/3P | EMTS-330E2/480V/3P |
| 4.5 | 44 | 11-3/4(30) | 6(3) | EMTS-345/480V/3P | EMTS-345E2/480V/3P |
| 6 | 38 | 17-3/4(45) | 6(3) | EMTS-360/480V/3P | EMTS-360E2/480V/3P |
| 7.5 | 43 | 19-1/2(50) | 6(3) | EMTS-375/480V/3P | EMTS-375E2/480V/3P |
| 9 | 40 | 24-7/8(63) | 7(3) | EMTS-390/480V/3P | EMTS-390E2/480V/3P |
| 12 | 40 | 32-7/16(82) | 9(4) | EMTS-3120/480V/3P | EMTS-3120E2/480V/3P |
| 15 | 41 | 40-3/8(101) | 10(5) | EMTS-3150/480V/3P | EMTS-3150E2/480V/3P |
| 18 | 41 | 47-7/8(120) | 12(5) | EMTS-3180/480V/3P | EMTS-3180E2/480V/3P |
1带通用外壳的加热器已通过UL认证和CSA认证，但超过48安培的型号除外。
2带有防潮/防爆外壳的加热器已通过CSA NRTL/C认证，但超过48安培的型号除外
