特点
这些过侧浸没式加热器设计用于安装在罐的顶部，加热部分直接浸入侧面或底部。这样可以很容易地拆卸加热器和储罐内有充足的工作空间。
应用
碱性清洗剂（带电）、碱性浸泡清洗剂、铜硫酸盐、化学铜、电清洗剂、弱酸浴、洗涤储罐浸渍含有碱、橡木、烧碱、洗涤剂和其他水溶液
注意和警告！
如果产品使用不当或由非合格人员安装或使用。见封底内页以获取其他警告。
规格：
Wattage：2 to 18 kW
Power：120，240，480V，1 & 3
Watt Density：40W/in2
订货信息：

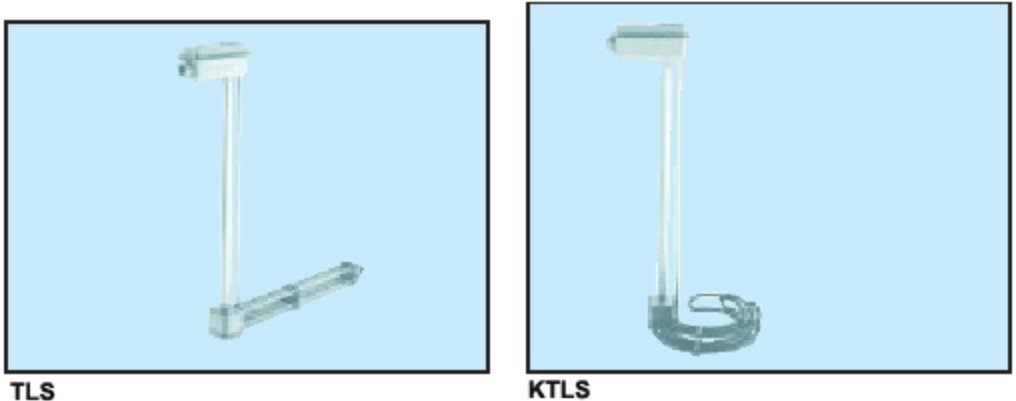

| W | Riser(A) in(cm) | Straight Elements | Curved Elements | Wt. Lb(kg) | |||
| Min. Tank Clearance(B) --in(cm) | 型号 | Min. Tank Clearance(B) --in(cm) | 型号 | ||||
| Two Elements—Stainless Steel，40 W/in.2 | |||||||
| 2 | 36(91) | 12-1/4(31) | TLS-220A-036/120 | 10-5/8(27) | KTLS-220A-036/120 | 8(4) | |
| 2 | 36(91) | 12-1/4(31) | TLS-220A-036/240 TLS-220A-036/480 | 10-5/8(27) | KTLS-220A-036/240 KTLS-220A-036/480 | 8(4) | |
| 4 | 36(91) | 22-1/4(57) | TLS-240A-036/120 | 13-3/4(35) | KTLS-240A-036/120 | 8(4) | |
| 4 | 36(91) | 22-1/4(57) | TLS-240A-036/240 TLS-240A-036/480 | 13-3/4(35) | KTLS-240A-036/240 KTLS-240A-036/480 | 8(4) | |
| 6 | 36(91) | 29-1/2(75) | TLS-260A-036/120 | 16-1/8(41) | KTLS-260A-036/120 | 10(5) | |
| 6 | 36(91) | 29-1/2(75) | TLS-260A-036/240 TLS-260A-036/480 | 16-1/8(41) | KTLS-260A-036/240 KTLS-260A-036/480 | 10(5) | |
| 8 | 36(91) | 37-3/8(95) | TLS-280A/036/240 TLS-280A/036/480 | 18-5/8(47) | KTLS-280A-036/240 KTLS-280A-036/480 | 12(5) | |
| 10 | 48(121) | 45(103) | TLS-210A-048/240 TLS-210A-048/480 | 21-1/4(54) | KTLS-210A-048/240 KTLS-210A-048/480 | 14(6) | |
| 12 | 48(121) | 52-1/2(133) | TLS-212A-048/240 TLS-212A-048/480 | 23-1/2(59) | KTLS-212A-048/240 KTLS-212A-048/480 | 16(7) | |
| Three Elements—Stainless Steel，40 W/in2 | |||||||
| 3 | 36(91) | 12-1/4(31) | TLS-330A-036/120 | 10-5/8(27) | KTLS-330A-036/120 | 9(4) | |
| 3 | 36(91) | 12-1/4(31) | TLS-330A-036/240/ TLS-330A-036/240/3P | 10-5/8(27) | KTLS-330A-036/240/ KTLS-330A-036/240/3P | 9(4) | |
| 3 | 36(91) | 12-1/4(31) | TLS-330A-036/480/ TLS-330A-036/480/3P | 10-5/8(27) | KTLS-330A-036/480/ KTLS-330A-036/480/3P | 9(4) | |
| 6 | 36(91) | 22-1/4(57) | TLS-360A-036/120 | 13-3/4(35) | KTLS-360A-036/120 | 10(5) | |
| 6 | 36(91) | 22-1/4(57) | TLS-360A-036/240/ TLS-360A-036/240/3P | 13-3/4(35) | KTLS-360A-036/240/ KTLS-360A-036/240/3P | 10(5) | |
| 6 | 36(91) | 22-1/4(57) | TLS-360A-036/480/ TLS-360A-036/480/3P | 13-3/4(35) | KTLS-360A-036/480/ KTLS-360A-036/480/3P | 10(5) | |
| 9 | 36(91) | 29-1/2(75) | TLS-390A-036/240/ TLS-390A-036/240/3P | 16-1/8(41) | KTLS-390A-036/240/ KTLS-390A-036/240/3P | 12(5) | |
| 9 | 36(91) | 29-1/2(75) | TLS-390A-036/480/ TLS-390A-036/480/3P | 16-1/8(41) | KTLS-390A-036/480/ KTLS-390A-036/480/3P | 12(5) | |
| 12 | 48(121) | 37-3/8(95) | TLS-312A-048/240/ TLS-312A-048/240/3P | 18-5/8(47) | KTLS-312A-048/240/ KTLS-312A-048/240/3P | 14(6) | |
| 12 | 48(121) | 37-3/8(95) | TLS-312A-048/480/ TLS-312A-048/480/3P | 18-5/8(47) | KTLS-312A-048/480/ KTLS-312A-048/480/3P | 14(6) | |
| 15 | 48(121) | 45(103) | TLS-315A-048/240/ TLS-315A-048/240/3P | 21-1/4(54) | KTLS-315A-048/240/ KTLS-315A-048/240/3P | 16(7) | |
| 15 | 48(121) | 45(103) | TLS-315A-048/480/ TLS-315A-048/480/3P | 21-1/4(54) | KTLS-315A-048/480/ KTLS-315A-048/480/3P | 16(7) | |
| 18 | 48(121) | 52-1/2(133) | TLS-318A-048/240/ TLS-318A-048/240/3P | 23-1/2(60) | KTLS-318A-048/240/ KTLS-318A-048/240/3P | 18(8) | |
| 18 | 48(121) | 52-1/2(133) | TLS-318A-048/480/ TLS-318A-048/480/3P | 23-1/2(60) | KTLS-318A-048/480/ KTLS-318A-048/480/3P | 18(8) | |
*指定电压，填入“240”表示240 V，填入”480”表示480V
**在3相功率的型号编号中加上后缀“3P”
可选的恒温器套件可安装在加热器端子盒中
订购示例：
TLS-220A-036/240，2kW加热器，由1相240Vac供电
TLS-330A-036/240/3P，3kW加热器，由三相240Vac供电
