特点：

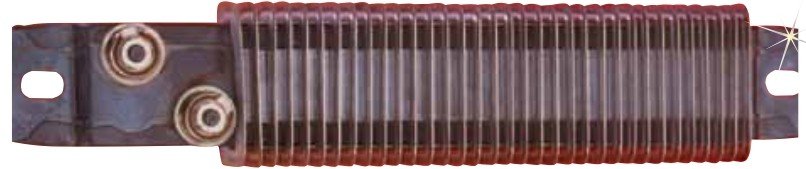

坚固耐用：OMEGA LUX带状加热器带有锁定的镀铝钢翅片，确保了耐用性
大翅片：从区域快速传热到空气
选择多：多种长度、瓦数和瓦特密度可供选择
UL组件认可：翅片元件（独特结构。高质量的盘绕镍铬电阻线均匀地分布在翅片带元件的宽度和长度上，然后嵌入耐火材料中，既能绝缘电线，又能快速传递热量。然后，在巨大的液压下将耐火材料压缩到岩石硬度和至大密度，以改善从盘管到护套的传热。元件在高温下烘烤，使耐火材料半玻璃化和成熟。护套材料为防锈铁或铬钢。提供镀铝钢翅片以改善向空气的传热。元件可单独更换。
小心和警告！
如果产品使用不当或由非合格人员安装或使用，可能会导致火灾和触电。有关其他警告，请参阅封底内侧。
应用：
用于安装在强制风道内的气流中
用于干燥机、烘箱和其他工艺空气加热设备
用于舒适加热应用，主要是管道、负载组和湿度控制
广泛的长度、瓦数和瓦特密度可以满足广泛的空气喷射和对流要求
OTF系列—防锈铁护套，护套温度高达400℃（750℉）
订货信息：

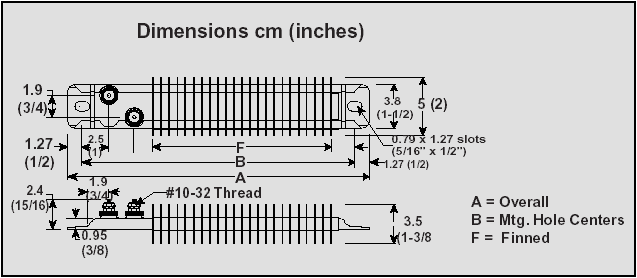

| 120 Vac型号 | 240 Vac型号 | Watts | W/In2† | Dimension:Inches(cm) | Weight Ib(kg) | ||
| A | B | F | |||||
| OTF-102/120 | OTF-102/240 | 250 | 10 | 10-1/2(27) | 9-1/2(24) | 6(15) | 2(0.9) |
| OTF-103/120 | OTF-103/240 | 350 | 15 | 10-1/2(27) | 9-1/2(24) | 6(15) | 2(0.9) |
| OTF-106/120 | OTF-106/240 | 600 | 25 | 10-1/2(27) | 9-1/2(24) | 6(15) | 2(0.9) |
| OTF-125/120 | OTF-125/240 | 500 | 17 | 12(30) | 11(28) | 7-1/2(19) | 2(0.9) |
| OTF-127/120 | OTF-127/240 | 750 | 25 | 12(30) | 11(28) | 7-1/2(19) | 2(0.9) |
| - | OTF-122/240 | 250 | 8 | 12(30) | 11(28) | 7-1/2(19) | 2(0.9) |
| OTF-149/120 | 900 | 25 | 14(36) | 13(33) | 9-1/2(24) | 2(0.9) | |
| - | OTF-145/240 | 500 | 15 | 14(36) | 13(33) | 9-1/2(24) | 2(0.9) |
| OTF-153/120 | - | 325 | 8 | 15-1/4(39) | 14-1/4(36) | 10-3/4(27) | 3(1.4) |
| OTF-151/120 | OTF-151/240 | 1000 | 25 | 15-1/4(39) | 14-1/4(36) | 10-3/4(27) | 3(1.4) |
| OTF-185/120 | OTF-185/240 | 500 | 10 | 17-7/8(46) | 16-7/8(43) | 13-3/4(34) | 3(1.4) |
| OTF-181/120 | OTF-181/240 | 1000 | 19 | 17-7/8(46) | 16-7/8(43) | 13-3/4(34) | 3(1.4) |
| OTF-182/120 | OTF-182/240 | 1300 | 25 | 17-7/8(46) | 16-7/8(43) | 13-3/4(34) | 3(1.4) |
| - | OTF-191/240 | 1000 | 18 | 19-1/2(50) | 18-1/2(47) | 15(38) | 3(1.4) |
| OTF-192/120 | OTF-192/240 | 1500 | 25 | 19-1/2(50) | 18-1/2(47) | 15(38) | 3(1.4) |
| - | OTF-211/240 | 1000 | 16 | 21(53) | 20(51) | 16-1/2(12) | 3(1.4) |
| - | OTF-212/240 | 1550 | 25 | 21(53) | 20(51) | 16-1/2(12) | 3(1.4) |
| - | OTF-247/240 | 750 | 10 | 23-3/4(60) | 22-3/4(58) | 19-1/4(49) | 4(1.8) |
| - | OTF-241/240 | 1000 | 14 | 23-3/4(60) | 22-3/4(58) | 19-1/4(49) | 4(1.8) |
| - | OTF-242/240 | 1800 | 25 | 23-3/4(60) | 22-3/4(58) | 19-1/4(49) | 4(1.8) |
| - | OTF-251/240 | 1250 | 16 | 25-1/2(65) | 24-1/2(62) | 21(53) | 4(1.8) |
| - | OTF-252/240 | 2000 | 26 | 25-1/2(65) | 24-1/2(62) | 21(53) | 4(1.8) |
| OTF-267/120 | OTF-267/240 | 700 | 9 | 26-3/4(68) | 25-3/4(65) | 22-1/4(57) | 4(1.8) |
| - | OTF-261/240 | 1350 | 17 | 26-3/4(68) | 25-3/4(65) | 22-1/4(57) | 4(1.8) |
| - | OTF-262/240 | 2000 | 24 | 26-3/4(68) | 25-3/4(65) | 22-1/4(57) | 4(1.8) |
| - | OTF-301/240 | 1500 | 17 | 30-1/2(77) | 29-3/8(75) | 25(64) | 4(1.8) |
| - | OTF-302/240 | 2350 | 26 | 30-1/2(77) | 29-3/8(75) | 25(64) | 4(1.8) |
| - | OTF-361/240 | 1000 | 9 | 35-7/8(91) | 34-7/8(89) | 30-3/8(77) | 5(2.3) |
| - | OTF-363/240 | 1800 | 16 | 35-7/8(91) | 34-7/8(89) | 30-3/8(77) | 5(2.3) |
| - | OTF-362/240 | 2850 | 26 | 35-7/8(91) | 34-7/8(89) | 30-3/8(77) | 5(2.3) |
| - | OTF-382/240 | 2000 | 17 | 38-1/2(98) | 37-7/8(89) | 33(84) | 5(2.3) |
| OTF-383/120 | - | 3100 | 26 | 38-1/2(98) | 37-7/8(89) | 33(84) | 5(2.3) |
| - | OTF-43/240 | 3400 | 26 | 4-21/2(108) | 41-7/8(106) | 37(94) | 6(2.7) |
