规格：
护套材料：铁或铬钢
至大护套温度：
铁：399℃(750℉)
铬钢：649℃(1200℉)
功率：120 or 240 Vac
注意和警告：
如果产品使用不当或由不合格的人员使用，可能会导致火灾和触电。查看后盖内部的附加警告。

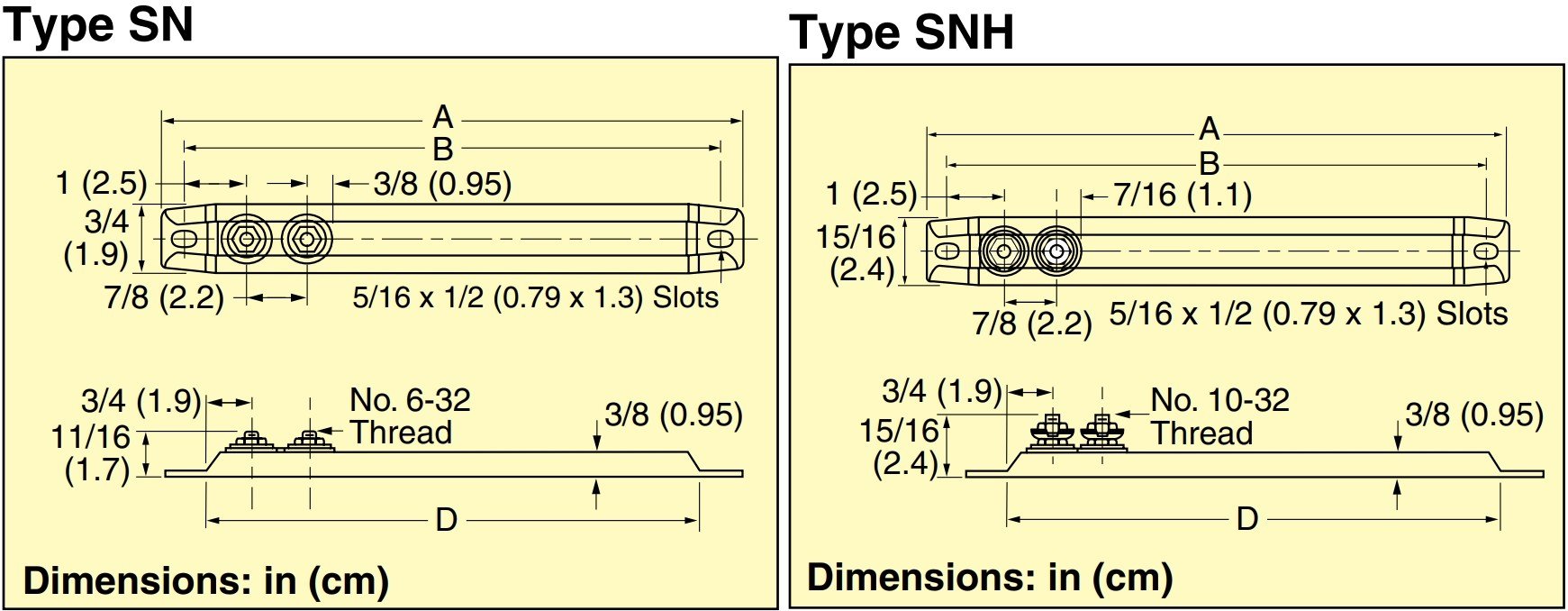

防锈铁护套带形加热带订货信息：
| Rust-Resisting Iron Sheath | Dimensions：in(cm) | |||||
| 120VAC型号 | 240VAC型号 | Watts | W/in2 | a | B | D |
| — | — | 250 | 2 | 8(20) | 7(18) | 6-1/2(17) |
| SN-910/120 | — | 100 | 8 | 9-1/2(24) | 8-1/2(22) | 8(20) |
| — | — | 300 | 21 | 9-1/2(24) | 8-1/2(22) | 8(20) |
| SN-1015/120 | — | 150 | 11 | 10-1/2(27) | 9-1/2(24) | 9(23) |
| — | — | 350 | 19 | 11(28) | 10(25) | 9-1/2(24) |
| SN-1215/120 | — | 150 | 9 | 12(30) | 11(28) | 10-1/2(27) |
| — | — | 400 | 19 | 12(30) | 11(28) | 10-1/2(27) |
| — | — | 450 | 17 | 14(36) | 13(33) | 12-1/2(32) |
| SN-1520/120 | SN-1520/240 | 200 | 8 | 15-1/4(39) | 14-1/4(36) | 13-3/4(35) |
| — | — | 500 | 17 | 15-1/4(39) | 14-1/4(36) | 13-3/4(35) |
| SN-1825/120 | SN-1825/240 | 250 | 8 | 17-7/8(45) | 16-7/8(43) | 16-3/8(42) |
| — | — | 600 | 1 | 17-7/8(45) | 16-7/8(43) | 16-3/8(42) |
| — | — | 600 | 15 | 19-1/2(50) | 18-1/2(47) | 18(46) |
| — | — | 750 | 17 | 21(53) | 20(53) | 19-1/2(50) |
| — | — | 750 | 16 | 22-1/2(57) | 21-1/2(55) | 21(53) |
| SN-2430/120 | SN-2430/240 | 300 | 7 | 23-3/4(60) | 22-3/4(58) | 22-1/4(57) |
| — | — | 800 | 16 | 23-3/4(60) | 22-3/4(58) | 22-1/4(57) |
| — | — | 900 | 16 | 25-1/2(65) | 24-1/2(62) | 24(61) |
| — | — | 900 | 14 | 27-1/2(70) | 26-1/2(67) | 26(66) |
| — | — | 1000 | 16 | 28-3/4(73) | 27-3/4(70) | 27-1/4(69) |
| SN-3045/120 | SN-3045/240 | 450 | 8 | 30-3/8(77) | 29-3/8(75) | 28-7/8(73) |
| — | — | 1000 | 15 | 30-1/2(77) | 29-3/8(75) | 28(71) |
| — | — | 1000 | 14 | 33-1/2(85) | 32-3/8(82) | 31(79) |
| SN-3660/120 | SN-3660/240 | 600 | 9 | 35-3/4(91) | 34-3/4(88) | 34-1/4(87) |
| — | — | 1000 | 13 | 35-7/8(91) | 3-3/4(88) | 33-3/8(85) |
| — | — | 1250 | 15 | 38-1/2(98) | 37-3/8(95) | 36(91) |
| — | — | 1250 | 14 | 39-7/8(101) | 38-3/4(98) | 37-3/8(95) |
| — | — | 1250 | 13 | 42-1/2(108) | 41-3/4(106) | 40(102) |
| — | — | 1250 | 13 | 43-7/8(111) | 42-3/8(108) | 41-3/8(105) |
| — | — | 1500 | 14 | 45-7/8(117) | 44-3/4(114) | 43-3/8(110) |
| — | — | 1500 | 14 | 47-7/8(122) | 46-3/4(119) | 45-3/8(115) |
| — | — | 1500 | 13 | 50-7/8(129) | 49-3/4(126) | 48-3/8(123) |
| — | — | 1500 | 12 | 53-3/8(136) | 52-3/4(134) | 51-3/8(130) |
铬钢护套带形加热带订货信息：
| ChromeSteel Sheath | Dimensions：in(cm) | ||||
| 120 VAC型号 | 240VAC型号 | Wt. lb (kg) | a | B | D |
| SNH-08/120 | SNH-08/240 | 0.36(0.16) | 8(20) | 7(18) | 6-1/2(17) |
| — | — | 0.38(0.17) | 9-1/2(24) | 8-1/2(22) | 8(20) |
| SNH-09/120 | SNH-09/240 | 0.38(0.17) | 9-1/2(24) | 8-1/2(22) | 8(20) |
| — | — | 0.5(0.2) | 10-1/2(27) | 9-1/2(24) | 9(23) |
| SNH-11/120 | SNH-1-1/240 | 0.5(0.2) | 11(28) | 10(25) | 9-1/2(24) |
| — | — | 0.63(0.29) | 12(30) | 11(28) | 10-1/2(27) |
| SNH-12/120 | SNH-12/240 | 0.63(0.29) | 12(30) | 11(28) | 10-1/2(27) |
| SNH-14/120 | SNH-14/240 | 0.70(0.32) | 14(36) | 13(33) | 12-1/2(32) |
| — | — | 0.75(0.34) | 15-1/4(39) | 14-1/4(36) | 13-3/4(35) |
| SNH-15/120 | SNH-15/240 | 0.75(0.34) | 15-1/4(39) | 14-1/4(36) | 13-3/4(35) |
| — | — | 0.85(0.39) | 17-7/8(45) | 16-7/8(43) | 16-3/8(42) |
| SNH-18/120 | SNH-18/240 | 0.85(0.39) | 17-7/8(45) | 16-7/8(43) | 16-3/8(42) |
| SNH-19/120 | SNH-19/240 | 0.96(0.44) | 19-1/2(50) | 18-1/2(47) | 18(46) |
| SNH-21/120 | SNH-2-1/240 | 1.0(0.45) | 21(53) | 20(53) | 19-1/2(50) |
| SNH-22/120 | SNH-22/240 | 1.0(0.45) | 22-1/2(57) | 21-1/2(55) | 21(53) |
| — | — | 1.0(0.45) | 23-3/4(60) | 22-3/4(58) | 22-1/4(57) |
| SNH-24/120 | SNH-24/240 | 1.1(0.45) | 23-3/4(60) | 22-3/4(58) | 22-1/4(57) |
| SNH-25/120 | SNH-25/240 | 1.1(0.50) | 25-1/2(65) | 24-1/2(62) | 24(61) |
| SNH-27/120 | SNH-27/240 | 1.1(0.50) | 27-1/2(70) | 26-1/2(67) | 26(66) |
| SNH-28/120 | SNH-28/240 | 1.25(0.57) | 28-3/4(73) | 27-3/4(70) | 27-1/4(69) |
| — | — | 1.25(0.57) | 30-3/8(77) | 29-3/8(75) | 28-7/8(73) |
| SNH-30/120 | SNH-30/240 | 1.25(0.57) | 30-1/2(77) | 29-3/8(75) | 28(71) |
| SNH-33/120 | SNH-33/240 | 1.4(0.64) | 33-1/2(85) | 32-3/8(82) | 31(79) |
| — | — | 1.5(0.68) | 35-3/4(91) | 34-3/4(88) | 34-1/4(87) |
| SNH-36/120 | SNH-36/240 | 1.5(0.68) | 35-7/8(91) | 3-3/4(88) | 33-3/8(85) |
| SNH-38/120 | SNH-38/240 | 1.60(0.73) | 38-1/2(98) | 37-3/8(95) | 36(91) |
| SNH-40/120 | SNH-40/240 | 1.60(0.73) | 39-7/8(101) | 38-3/4(98) | 37-3/8(95) |
| SNH-43/120 | SNH-43/240 | 1.80(0.82) | 42-1/2(108) | 41-3/4(106) | 40(102) |
| SNH-44/120 | SNH-44/240 | 1.80(0.82) | 43-7/8(111) | 42-3/8(108) | 41-3/8(105) |
| SNH-46/120 | SNH-46/240 | 1.94(0.88) | 45-7/8(117) | 44-3/4(114) | 43-3/8(110) |
| SNH-48/120 | SNH-48/240 | 2.0(0.91) | 47-7/8(122) | 46-3/4(119) | 45-3/8(115) |
| SNH-51/120 | SNH-5-1/240 | 2.13(0.97) | 50-7/8(129) | 49-3/4(126) | 48-3/8(123) |
| SNH-54/120 | SNH-54/240 | 2.25(1.0) | 53-3/8(136) | 52-3/4(134) | 51-3/8(130) |
