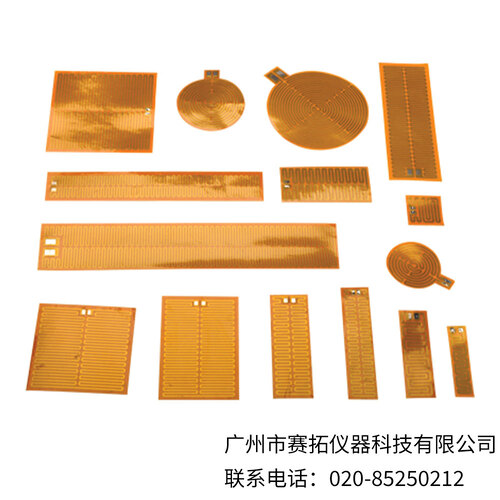

聚酰亚胺薄膜绝缘（也称为Kapton）柔性加热器有多种形状、尺寸和瓦数可供选择。在115或28V时，额定功率为2.5、5或10W/in²。聚酰亚胺薄膜具有高度的耐化学性。柔韧的特性可以适应固有的空隙，并且可以很容易地应用

不含PSA的工作温度为-57℃至150℃，使用PSA时，这些加热器的工作温度介于-40℃至149℃之间。
典型的OMEGA加热器结构包括厚度为0.0005英寸或0.0001英寸的蚀刻箔元件，封装在两层0.002英寸聚酰亚胺薄膜和0.001英寸FEP粘合剂之间。

KHLVA系列，矩形，28伏订货信息：

不带PSA型号			带PSA型号			Width， In.(cm)	Length， In.(cm)	功率密度的总功率
2.5W/in²	5W/in²	10W/in²	2.5W/in²	5W/in²	10W/in²	Width， In.(cm)	Length， In.(cm)	2.5W/in²	5W/in²	10W/in²
-	KHLVA-0502/5	KHLVA-0502/10	KHLVA-0502/2-P	KHLVA-0502/5-P	KHLVA-0502/10-P	0.5(1.27)	2(5.08)	—	5	10
KHLVA-0504/2	KHLVA-0504/5	KHLVA-0504/10	KHLVA-0504/2-P	KHLVA-0504/5-P	KHLVA-0504/10-P	0.5(1.27)	4(10.16)	5	10	20
-	KHLVA-101/5	KHLVA-101/10	KHLVA-101/2-P	KHLVA-101/5-P	KHLVA-101/10-P	1(2.54)	1(2.54)	—	5	10
KHLVA-102/2	KHLVA-102/5	KHLVA-102/10	KHLVA-102/2-P	KHLVA-102/5-P	KHLVA-102/10-P	1(2.54)	2(5.08)	5	10	20
KHLVA-103/2	KHLVA-103/5	KHLVA-103/10	KHLVA-103/2-P	KHLVA-103/5-P	KHLVA-103/10-P	1(2.54)	3(7.62)	7.5	15	30
KHLVA-104/2	KHLVA-104/5	KHLVA-104/10	KHLVA-104/2-P	KHLVA-104/5-P	KHLVA-104/10-P	1(2.54)	4(10.16)	10	20	40
KHLVA-105/2	KHLVA-105/5	KHLVA-105/10	KHLVA-105/2-P	KHLVA-105/5-P	KHLVA-105/10-P	1(2.54)	5(12.7)	12.5	25	50
KHLVA-202/2	KHLVA-202/5	KHLVA-202/10	KHLVA-202/2-P	KHLVA-202/5-P	KHLVA-202/10-P	2(5.08)	2(5.08)	10	20	40
KHLVA-203/2	KHLVA-203/5	KHLVA-203/10	KHLVA-203/2-P	KHLVA-203/5-P	KHLVA-203/10-P	2(5.08)	3(7.62)	15	30	60
KHLVA-204/2	KHLVA-204/5	KHLVA-204/10	KHLVA-204/2-P	KHLVA-204/5-P	KHLVA-204/10-P	2(5.08)	4(10.16)	20	40	80
KHLVA-205/2	KHLVA-205/5	KHLVA-205/10	KHLVA-205/2-P	KHLVA-205/5-P	KHLVA-205/10-P	2(5.08)	5(12.7)	25	50	100
KHLVA-303/2	KHLVA-303/5	KHLVA-303/10	KHLVA-303/2-P	KHLVA-303/5-P	KHLVA-303/10-P	3(7.62)	3(7.62)	22.5	45	90

KHA系列，矩形，115伏订货信息：

不带PSA型号		带PSA型号		Width， In.(cm)	Length， In.(cm)	功率密度的总功率
5W/in²	10W/in²	5W/in²	10W/in²	Width， In.(cm)	Length， In.(cm)	5W/in²	10W/in²
—	KHA-102/10	KHA-102/5-P	KHA-102/10-P	1(2.54)	2(5.08)	—	30
—	KHA-103/10	KHA-103/5-P	KHA-103/10-P	1(2.54)	3(7.62)	—	30
KHA-104/5	KHA-104/10	KHA-104/5-P	KHA-104/10-P	1(2.54)	4(10.16)	20	40
KHA-105/5	KHA-105/10	KHA-105/5-P	KHA-105/10-P	1(2.54)	5(12.7)	25	50
KHA-106/5	KHA-106/10	KHA-106/5-P	KHA-106/10-P	1(2.54)	6(15.24)	30	60
KHA-108/5	KHA-108/10	KHA-108/5-P	KHA-108/10-P	1(2.54)	8(20.32)	40	80
KHA-110/5	KHA-110/10	KHA-110/5-P	KHA-110/10-P	1(2.54)	10(25.4)	50	100
KHA-112/5	KHA-112/10	KHA-112/5-P	KHA-112/10-P	1(2.54)	12(30.48)	60	120
KHA-202/5	KHA-202/10	KHA-202/5-P	KHA-202/10-P	2(5.08)	2(5.08)	20	40
KHA-203/5	KHA-203/10	KHA-203/5-P	KHA-203/10-P	2(5.08)	3(7.62)	30	60
KHA-204/5	KHA-204/10	KHA-204/5-P	KHA-204/10-P	2(5.08)	4(10.16)	40	80
KHA-205/5	KHA-205/10	KHA-205/5-P	KHA-205/10-P	2(5.08)	5(12.7)	50	100
KHA-206/5	KHA-206/10	KHA-206/5-P	KHA-206/10-P	2(5.08)	6(15.24)	60	120
KHA-208/5	KHA-208/10	KHA-208/5-P	KHA-208/10-P	2(5.08)	8(20.32)	80	160
KHA-210/5	KHA-210/10	KHA-210/5-P	KHA-210/10-P	2(5.08)	10(25.4)	100	200
KHA-212/5	KHA-212/10	KHA-212/5-P	KHA-212/10-P	2(5.08)	12(30.48)	120	240
KHA-303/5	KHA-303/10	KHA-303/5-P	KHA-303/10-P	3(7.62)	3(7.62)	45	90
KHA-304/5	KHA-304/10	KHA-304/5-P	KHA-304/10-P	3(7.62)	4(10.16)	60	120
KHA-305/5	KHA-305/10	KHA-305/5-P	KHA-305/10-P	3(7.62)	5(12.7)	75	150
KHA-306/5	KHA-306/10	KHA-306/5-P	KHA-306/10-P	3(7.62)	6(15.24)	90	180
KHA-308/5	KHA-308/10	KHA-308/5-P	KHA-308/10-P	3(7.62)	8(20.32)	120	240
KHA-310/5	KHA-310/10	KHA-310/5-P	KHA-310/10-P	3(7.62)	10(25.4)	150	300
KHA-312/5	KHA-312/10	KHA-312/5-P	KHA-312/10-P	3(7.62)	12(30.48)	180	360
KHA-404/5	KHA-404/10	KHA-404/5-P	KHA-404/10-P	4(10.16)	4(10.16)	80	160
KHA-405/5	KHA-405/10	KHA-405/5-P	KHA-405/10-P	4(10.16)	5(12.7)	100	200
KHA-406/5	KHA-406/10	KHA-406/5-P	KHA-406/10-P	4(10.16)	6(15.24)	120	240
KHA-408/5	KHA-408/10	KHA-408/5-P	KHA-408/10-P	4(10.16)	8(20.32)	160	320
KHA-410/5	KHA-410/10	KHA-410/5-P	KHA-410/10-P	4(10.16)	10(25.4)	200	400
KHA-412/5	KHA-412/10	KHA-412/5-P	KHA-412/10-P	4(10.16)	12(30.48)	240	480
KHA-505/5	KHA-505/10	KHA-505/5-P	KHA-505/10-P	5(12.7)	5(12.7)	125	250
KHA-506/5	KHA-506/10	KHA-506/5-P	KHA-506/10-P	5(12.7)	6(15.24)	150	300
KHA-508/5	KHA-508/10	KHA-508/5-P	KHA-508/10-P	5(12.7)	8(20.32)	200	400
KHA-510/5	KHA-510/10	KHA-510/5-P	KHA-510/10-P	5(12.7)	10(25.4)	250	500
KHA-512/5	KHA-512/10	KHA-512/5-P	KHA-512/10-P	5(12.7)	12(30.48)	300	600
KHA-606/5	KHA-606/10	KHA-606/5-P	KHA-606/10-P	6(15.24)	6(15.24)	180	360
KHA-608/5	KHA-608/10	KHA-608/5-P	KHA-608/10-P	6(15.24)	8(20.32)	240	480
KHA-610/5	KHA-610/10	KHA-610/5-P	KHA-610/10-P	6(15.24)	10(25.4)	300	600
KHA-612/5	KHA-612/10	KHA-612/5-P	KHA-612/10-P	6(15.24)	12(30.48)	360	720
KHA-808/5	KHA-808/10	KHA-808/5-P	KHA-808/10-P	8(20.32)	8(20.32)	320	640
KHA-810/5	KHA-810/10	KHA-810/5-P	KHA-810/10-P	8(20.32)	10(25.4)	400	800
KHA-812/5	KHA-812/10	KHA-812/5-P	KHA-812/10-P	8(20.32)	12(30.48)	480	960
KHA-1010/5	KHA-1010/10	KHA-1010/5-P	KHA-1010/10-P	10(25.4)	10(25.4)	500	1000
KHA-1012/5	KHA-1012/10	KHA-1012/5-P	KHA-1012/10-P	10(25.4)	12(30.48)	600	1200
KHA-1212/5	KHA-1212/10	KHA-1212/5-P	KHA-1212/10-P	12(30.48)	12(30.48)	720	144

n/a=不适用于PSA。
随附完整的操作手册。
/*插入功率密度：2为2.5W/in²，5为W/in²，10为10W/in²
注意：加热器仅提供标明总瓦数的瓦特密度。

KHRA系列，圆形，115伏订货信息：

不带PSA型号		带PSA型号		直径 In.(cm)	功率密度的总功率
5 W/in²	10W/in²	5 W/in²	10W/in²	直径 In.(cm)	5W/in²	10W/in²
-	KHRA-2/10	KHRA-2/5-P	KHRA-2/10-P	2(5.08)	—	31.4
KHRA-3/5	KHRA-3/10	KHRA-3/5P	KHRA-3/10P	3(7.62)	35.3	70.7
KHRA-4/5	KHRA-4/10	KHRA-4/5-P	KHRA-4/10-P	4(10.16)	62.8	126
KHRA-5/5	KHRA-5/10	KHRA-5/5-P	KHRA-5/10-P	5(12.7)	98.2	196
KHRA-6/5	KHRA-6/10	KHRA-6/5-P	KHRA-6/10-P	6(15.24)	141	283
KHRA-8/5	KHRA-8/10	KHRA-8/5-P	KHRA-8/10-P	8(20.32)	251	503
KHRA-10/5	KHRA-10/10	KHRA-10/5-P	KHRA-10/10-P	10(25.4)	393	785
KHRA-12/5	KHRA-12/10	KHRA-12/5-P	KHRA-12/10-P	12(30.48)	565	1131

随附完整的操作手册。
/（*）插入功率密度：2表示2.5W/in²，5表示5 W/in²，10表示10W/in²
**带压敏胶的加热器：至高工作温度为250℉（120℃）。
注意：加热器仅提供标明总瓦数的瓦特密度。
