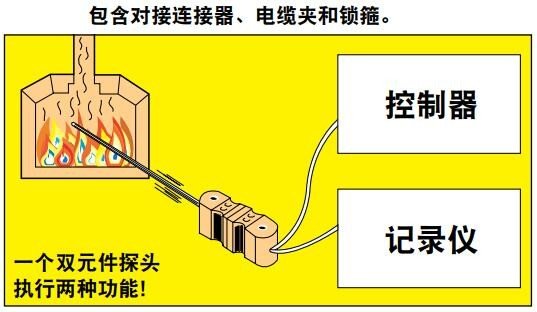

OMEGA双元件热电偶组件使用4芯OMEGACLAD™线制造，具有结实的DTC连接器端子。可提供304不锈钢或Inconel金属护套，外径为1.5~6mm(1/16"~1/4")，使用接地、非接地或外露端。包含对接连接器、电缆夹和锁箍。标准长度为300mm(12")，另外提供其他长度。
订货信息：
| 热点偶合金 | 金属护套直径 mm (inch) | 接地端 | 非接地端 | 外露端 | |
| 铁- 康铜 Inconel 金属护套 | J | 1.5 (1/16) | ICIN-116G-12-DUAL | ICIN-116U-12-DUAL | ICIN-116E-12-DUAL |
| 3.0 (1/8) | ICIN-18G-12-DUAL | ICIN-18U-12-DUAL | ICIN-18E-12-DUAL | ||
| 4.5 (3/16) | ICIN-316G-12-DUAL | ICIN-316U-12-DUAL | ICIN-316E-12-DUAL | ||
| 6.0 (1/4) | ICIN-14G-12-DUAL | ICIN-14U-12-DUAL | ICIN-14E-12-DUAL | ||
| 铁- 康铜 304 SS 金属护套 | J | 1.5 (1/16) | ICSS-116G-12-DUAL | ICSS-116U-12-DUAL | ICSS-116E-12-DUAL |
| 3.0 (1/8) | ICSS-18G-12-DUAL | ICSS-18U-12-DUAL | ICSS-18E-12-DUAL | ||
| 4.5 (3/16) | ICSS-316G-12-DUAL | ICSS-316U-12-DUAL | ICSS-316E-12-DUAL | ||
| 6.0 (1/4) | ICSS-14G-12-DUAL | ICSS-14U-12-DUAL | ICSS-14E-12-DUAL | ||
| CHROMEGA® ALOMEGA® Inconel 金属护套 | K | 1.5 (1/16) | CAIN-116G-12-DUAL | CAIN-116U-12-DUAL | CAIN-116E-12-DUAL |
| 3.0 (1/8) | CAIN-18G-12-DUAL | CAIN-18U-12-DUAL | CAIN-18E-12-DUAL | ||
| 4.5 (3/16) | CAIN-316G-12-DUAL | CAIN-316U-12-DUAL | CAIN-316E-12-DUAL | ||
| 6.0 (1/4) | CAIN-14G-12-DUAL | CAIN-14U-12-DUAL | CAIN-14E-12-DUAL | ||
| CHROMEGA® ALOMEGA® 304 不锈钢 金属护套 | K | 1.5 (1/16) | CASS-116G-12-DUAL | CASS-116U-12-DUAL | CASS-116E-12-DUAL |
| 3.0 (1/8) | CASS-18G-12-DUAL | CASS-18U-12-DUAL | CASS-18E-12-DUAL | ||
| 4.5 (3/16) | CASS-316G-12-DUAL | CASS-316U-12-DUAL | CASS-316E-12-DUAL | ||
| 6.0 (1/4) | CASS-14G-12-DUAL | CASS-14U-12-DUAL | CASS-14E-12-DUAL | ||
| CHROMEGA® 康铜 Inconel 金属护套 | E | 1.5 (1/16) | CXIN-116G-12-DUAL | CXIN-116U-12-DUAL | CXIN-116E-12-DUAL |
| 3.0 (1/8) | CXIN-18G-12-DUAL | CXIN-18U-12-DUAL | CXIN-18E-12-DUAL | ||
| 4.5 (3/16) | CXIN-316G-12-DUAL | CXIN-316U-12-DUAL | CXIN-316E-12-DUAL | ||
| 6.0 (1/4) | CXIN-14G-12-DUAL | CXIN-14U-12-DUAL | CXIN-14E-12-DUAL | ||
| CHROMEGA® 康铜 304 不锈钢 金属护套 | E | 1.5 (1/16) | CXSS-116G-12-DUAL | CXSS-116U-12-DUAL | CXSS-116E-12-DUAL |
| 3.0 (1/8) | CXSS-18G-12-DUAL | CXSS-18U-12-DUAL | CXSS-18E-12-DUAL | ||
| 4.5 (3/16) | CXSS-316G-12-DUAL | CXSS-316U-12-DUAL | CXSS-316E-12-DUAL | ||
| 6.0 (1/4) | CXSS-14G-12-DUAL | CXSS-14U-12-DUAL | CXSS-14E-12-DUAL | ||
| 铜- 康铜 Inconel 金属护套 | T | 1.5 (1/16) | CPIN-116G-12-DUAL | CPIN-116U-12-DUAL | CPIN-116E-12-DUAL |
| 3.0 (1/8) | CPIN-18G-12-DUAL | CPIN-18U-12-DUAL | CPIN-18E-12-DUAL | ||
| 4.5 (3/16) | CPIN-316G-12-DUAL | CPIN-316U-12-DUAL | CPIN-316E-12-DUAL | ||
| 6.0 (1/4) | CPIN-14G-12-DUAL | CPIN-14U-12-DUAL | CPIN-14E-12-DUAL | ||
| 铜- 康铜 304 SS 金属护套 | T | 1.5 (1/16) | CPSS-116G-12-DUAL | CPSS-116U-12-DUAL | CPSS-116E-12-DUAL |
| 3.0 (1/8) | CPSS-18G-12-DUAL | CPSS-18U-12-DUAL | CPSS-18E-12-DUAL | ||
| 4.5 (3/16) | CPSS-316G-12-DUAL | CPSS-316U-12-DUAL | CPSS-316E-12-DUAL | ||
| 6.0 (1/4) | CPSS-14G-12-DUAL | CPSS-14U-12-DUAL | CPSS-14E-12-DUAL | ||
如欲订购310、316或321不锈钢金属护套，请将型号中的“SS”分别更改为“310SS”、“316SS”、或“321SS”；无额外费用。
* 如欲订购 Super OMEGACLAD® XL 金属护套，请将型号中的“N”更改为“XL”，需付额外费用。
注：可提供PFA涂层，zui高205°C (400°F)。亦可提供定制连接器类型，请咨询定制工程部。
订购示例： CAIN-14G-12-DUAL，双K型接地热电偶，直径6 mm (1⁄4")。Inconel金属护套，长12"
