应用
用于各种干燥/固化操作的加热空气，空气温度高达1200℉（648℃），热处理、再加热或除湿，以及其他类似的空气加热应用。
特点
坚固的结构：坚固的0.475英寸直径管状元件安装在14英寸或38英寸厚的重型钢法兰上。端子外壳由18号镀铝钢制成。16号镀铝钢的元件支撑板由不锈钢支撑杆固定到位。高温装置具有用于3英寸绝缘外壳和元件支撑板的不锈钢材料的附加功能，所有这些都提供了出色的刚性、强度和可靠性。
长寿命金属护套管状元件：耐腐蚀/抗氧化护套。Incoloy护套材料，在高工作温度下具有出色的耐腐蚀性/抗氧化性。
订货信息：
| adh-Low-medium temperature(30 W/in2) | |||||||||||||

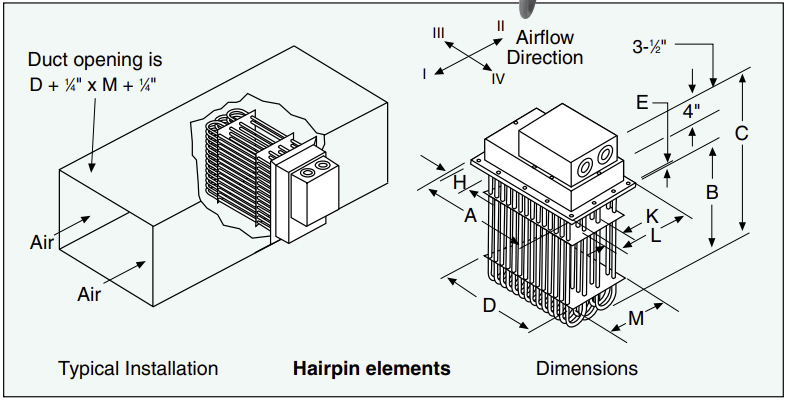

| 型号 | kW | dimensions -inches | No. elem. | No. circ. | Wt. lbs | ||||||||
| a | B | c | d | e | h | K | L | m | |||||
| ADH-005/480V/3P | 5 | 5-5/8 | 20-1/8 | 28-1/8 | 4 | 1/4 | 2-1/2 | 3-1/2 | 11-1/8 | 9-1/2 | 3 | 1 | 8 |
| ADH-010/480V/3P | 10 | 7-5/8 | 20-3/8 | 28-1/8 | 6 | 1/4 | 3-1/2 | 3-1/2 | 11-1/8 | 9-1/2 | 6 | 1 | 15 |
| ADH-015/480V/3P | 15 | 9-5/8 | 20-3/8 | 28-1/8 | 8 | 1/4 | 3 | 3-1/2 | 11-1/8 | 9-1/2 | 9 | 1 | 25 |
| ADH-020/480V/3P | 20 | 11-5/8 | 20-3/8 | 28-1/8 | 10 | 1/4 | 2-3/4 | 3-1/2 | 11-1/8 | 9-1/2 | 12 | 1 | 35 |
| ADH-025/480V/3P | 25 | 13-5/8 | 20-3/8 | 28-1/8 | 12 | 1/4 | 3-1/4 | 3-1/2 | 11-1/8 | 9-1/2 | 15 | 1 | 40 |
| ADH-030/480V/3P | 30 | 15-5/8 | 20-3/8 | 28-1/4 | 14 | 3/8 | 3-3/4 | 3-1/2 | 11-1/8 | 9-1/2 | 18 | 1 | 55 |
| ADH-035/480V/3P | 35 | 17-5/8 | 20-3/8 | 28-1/4 | 16 | 3/8 | 4-1/4 | 3-1/2 | 11-1/8 | 9-1/2 | 21 | 1 | 65 |
| ADH-040/480V/3P | 40 | 19-5/8 | 20-3/8 | 28-1/4 | 18 | 3/8 | 4-3/4 | 3-1/2 | 11-1/8 | 9-1/2 | 24 | 2 | 70 |
| ADH-045/480V/3P | 45 | 21-5/8 | 20-3/8 | 28-1/4 | 20 | 3/8 | 5-1/4 | 3-1/2 | 11-1/8 | 9-1/2 | 27 | 2 | 80 |
| ADH-050/480V/3P | 50 | 23-5/8 | 20-3/8 | 28-1/4 | 20 | 3/8 | 5-3/4 | 3-1/2 | 11-1/8 | 9-1/2 | 30 | 2 | 90 |
| ADH-060/480V/3P | 60 | 27-5/8 | 20-3/8 | 28-1/4 | 26 | 3/8 | 4-1/2 | 3-1/2 | 11-1/8 | 9-1/2 | 36 | 2 | 105 |
| ADH-100/480V/3P | 100 | 43-5/8 | 20-3/8 | 28-1/4 | 42 | 3/8 | 5-3/8 | 3-1/2 | 11-1/8 | 9-1/2 | 60 | 5 | 175 |
| ADH-162/480V/3P | 162 | 39-5/8 | 35 | 42-7/8 | 38 | 3/8 | 4-7/8 | 3-1/2 | 11-1/8 | 9-1/2 | 54 | 6 | 185 |
| ADH-216F/480V/3P | 216 | 27-5/8 | 35 | 42-7/8 | 26 | 3/8 | 4-1/2 | 3-7/8 | 20 | 18-3/8 | 72 | 6 | 240 |
| ADH-270F/480V/3P | 270 | 33-5/8 | 35 | 42-7/8 | 32 | 3/8 | 5-1/2 | 3-7/8 | 20 | 18-3/8 | 90 | 8 | 300 |
低瓦密度电阻线：
瓦特加热的线圈上的密度设计用于低瓦特密度运行，通过增加线圈直径、标尺和电阻丝长度，以提供大表面积和低运行线圈表面温度-提供更长的线圈寿命。
易于更换元件：
单独的元件机械固定在法兰上，方便，易于更换。
布线室温度低：
在端子箱中添加一英寸厚的绝缘层使之成为可能，允许使用低温场地布线，而不是昂贵的高温母线和电线。高温设备包括额外的三英寸绝缘层，以帮助减少管道热损失
轻松访问简化的现场接线端子：
端子外壳是完全可拆卸的，可接入现场接线端子。
每个电路都设有带螺纹螺柱型端子的单独端子块，以便能够快速正连接电路布线导体。
防尘/防尘端子外壳：
端子外壳由坚固的重型铝化钢制成，而不是穿孔金属以防止污垢和灰尘在电气连接上积聚从而提供更长的使用寿命。
法兰安装垫片：
每个管道加热器单独包装至大限度地减少法兰和风管之间的泄漏
订货信息：

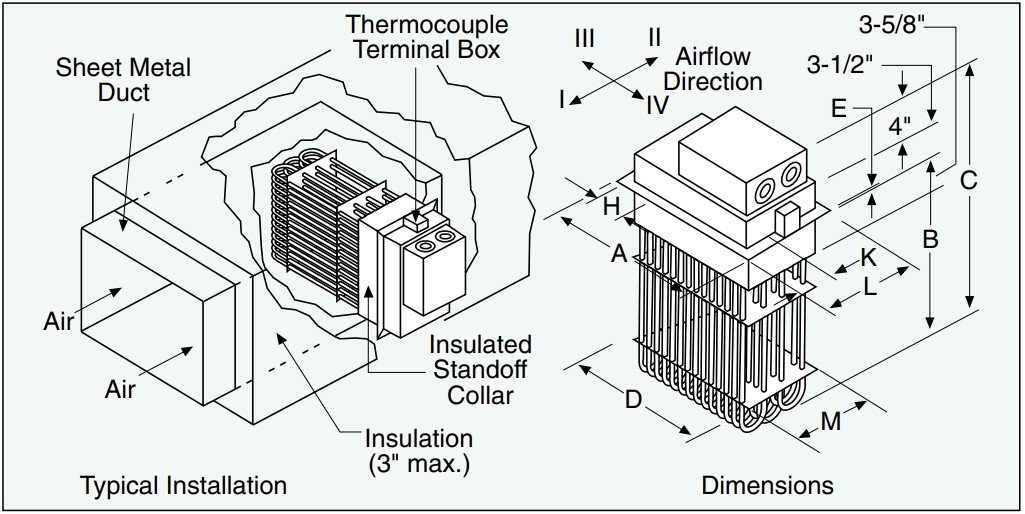

| 型号 | kW | dimensions-inches | No. elem. | No. circ. | Wt. lbs | ||||||||
| a | B | c | d | e | h | K | L | m | |||||
| ADHT-005/480V/3P | 5 | 5-5/8 | 20-1/8 | 28-1/8 | 4 | 1/4 | 2-1/2 | 3-1/2 | 11-1/8 | 9-1/2 | 3 | 1 | 10 |
| ADHT-010/480V/3P | 10 | 7-5/8 | 20-3/8 | 28-1/8 | 6 | 1/4 | 3-1/2 | 3-1/2 | 11-1/8 | 9-1/2 | 6 | 1 | 20 |
| ADHT-015/480V/3P | 15 | 9-5/8 | 20-3/8 | 28-1/8 | 8 | 1/4 | 3 | 3-1/2 | 11-1/8 | 9-1/2 | 9 | 1 | 30 |
| ADHT-020/480V/3P | 20 | 11-5/8 | 20-3/8 | 28-1/8 | 10 | 1/4 | 2-3/4 | 3-1/2 | 11-1/8 | 9-1/2 | 12 | 1 | 40 |
| ADHT-025/480V/3P | 25 | 13-5/8 | 20-3/8 | 28-1/8 | 12 | 1/4 | 3-1/4 | 3-1/2 | 11-1/8 | 9-1/2 | 15 | 1 | 50 |
| ADHT-030/480V/3P | 30 | 15-5/8 | 20-3/8 | 28-1/4 | 14 | 3/8 | 3-3/4 | 3-1/2 | 11-1/8 | 9-1/2 | 18 | 1 | 65 |
| ADHT-035/480V/3P | 35 | 17-5/8 | 20-3/8 | 28-1/4 | 16 | 3/8 | 4-1/4 | 3-1/2 | 11-1/8 | 9-1/2 | 21 | 1 | 80 |
| ADHT-040/480V/3P | 40 | 19-5/8 | 20-3/8 | 28-1/4 | 18 | 3/8 | 4-3/4 | 3-1/2 | 11-1/8 | 9-1/2 | 24 | 2 | 90 |
| ADHT-045/480V/3P | 45 | 21-5/8 | 20-3/8 | 28-1/4 | 20 | 3/8 | 5-1/4 | 3-1/2 | 11-1/8 | 9-1/2 | 27 | 2 | 100 |
| ADHT-050/480V/3P | 50 | 23-5/8 | 20-3/8 | 28-1/4 | 22 | 3/8 | 5-3/4 | 3-1/2 | 11-1/8 | 9-1/2 | 30 | 2 | 110 |
| ADHT-060/480V/3P | 60 | 27-5/8 | 20-3/8 | 28-1/4 | 26 | 3/8 | 4-1/2 | 3-1/2 | 11-1/8 | 9-1/2 | 36 | 2 | 130 |
| ADHT-080/480V/3P | 80 | 35-5/8 | 20-3/8 | 28-1/4 | 34 | 3/8 | 4-3/8 | 3-1/2 | 11-1/8 | 9-1/2 | 48 | 4 | 175 |
| ADHT-090/480V/3P | 90 | 39-5/8 | 20-3/8 | 28-1/4 | 38 | 3/8 | 4-7/8 | 3-1/2 | 11-1/8 | 9-1/2 | 54 | 5 | 200 |
| ADHT-100/480V/3P | 100 | 43-5/8 | 20-3/8 | 28-1/4 | 42 | 3/8 | 5-3/8 | 3-1/2 | 11-1/8 | 9-1/2 | 60 | 5 | 220 |
| ADHT-120/480V/3P | 120 | 27-5/8 | 35 | 42-7/8 | 26 | 3/8 | 4-1/2 | 3-1/2 | 11-1/8 | 9-1/2 | 36 | 4 | 205 |
| ADHT-160/480V/3P | 160 | 35-5/8 | 35 | 42-7/8 | 34 | 3/8 | 4-3/8 | 3-1/2 | 11-1/8 | 9-1/2 | 48 | 8 | 270 |
| ADHT-180/480V/3P | 180 | 39-5/8 | 35 | 42-7/8 | 38 | 3/8 | 4-7/8 | 3-1/2 | 11-1/8 | 9-1/2 | 54 | 6 | 305 |
| ADHT-240F/480V/3P | 240 | 27-5/8 | 35 | 42-7/8 | 26 | 3/8 | 4-1/2 | 3-7/8 | 20 | 18-3/8 | 72 | 8 | 400 |
