OMEGALUX “S”系列带状加热器采用防锈铁或铬钢护套宽度为1-1/2in。护套材料的选择取决于工艺和环境加热器将暴露在环境中。“S”系列的特点是两端各有一个端子，符合许多应用。有关其他条带加热器应用指南，请参阅介绍页面。
规格：
护套材质：防锈铁铬钢
至高护套温度：铁399℃（750℉），铬钢649℃（1200℉）
电源：120或240Vac
注意和警告
如果产品使用不当或安装或使用，可能会导致火灾和触电由不合格人员使用。有关其他警告，请参阅封底内侧。
订货信息：

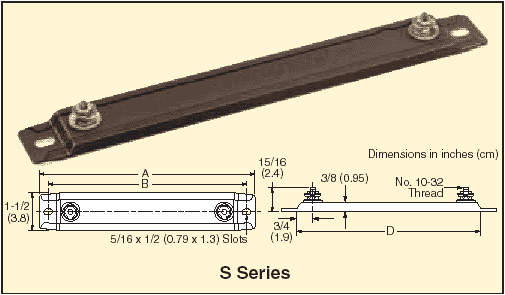

| 尺寸-in（cm） | 防锈铁护套 | 铬钢护套 | |||||||||
| A | B | D | Watts | W/in2† | 120Vac型号 | 240Vac型号 | Watts | W/in2† | 120Vac型号 | 240Vac型号 | 重量磅(kg) |
| 8(20) | 7(18) | 6-1/2(17) | 150 | 10 | S-815/120 | S-815/240 | 250 | 17 | S-802/120 | S-802/240 | .63(.16) |
| 9-1/2(24) | 8-1/2(22) | 8(20) | 200 | 10 | S-920/120 | S-920/240 | 300 | 15 | S-903/120 | S-903/240 | .75(.34) |
| 12(30) | 11(28) | 10-1/2(27) | 250 | 9 | S-1225/120 | S-1225/240 | 250 | 9 | S-1202/120 | S-1202/240 | .94(.43) |
| 12(30) | 11(28 | 10-1/2(27) | — | — | — | — | 500 | 17 | S-1205/120 | S-1205/240 | .94(.43) |
| 14(36) | 13(33) | 12-1/2(32) | 300 | 8 | S-1430/120 | S-1430/240 | 500 | 14 | S-1405/120 | S-1405/240 | 1.06(.48) |
| 15-1/4(39) | 14-1/4(36) | 13-3/4(35) | 325 | 8 | S-1532/120 | S-1532/240 | 500 | 12 | S-1505/120 | S-1505/240 | 1.19(.54) |
| 17-7/8(45) | 16-7/8(43) | 16-3/8(42) | 375 | 8 | S-1837/120 | S-1837/240 | 500 | 10 | S-1805/120 | S-1805/240 | 1.44(.65) |
| 17-7/8(45) | 16-7/8(43) | 16-3/8(42) | 500 | 10 | S-1850/120 | S-1850/240 | 750 | 15 | S-1807/120 | S-1807/240 | 1.44(.65) |
| 17-7/8(45) | 16-7/8(43) | 16-3/8(42) | — | — | — | — | 1000 | 20 | S-1801/120 | S-1801/240 | 1.44(.65) |
| 19-1/2(50) | 18-1/2(47) | 18(46) | 500 | 9 | S-1950/120 | S-1950/240 | 500 | 9 | S-1905/120 | S-1905/240 | 1.5(.68) |
| 19-1/2(50) | 18-1/2(47) | 18(46) | — | — | — | — | 750 | 13 | S-1907/120 | S-1907/240 | 1.57(.71) |
| 19-1/2(50) | 18-1/2(47) | 18(46) | — | — | — | — | 1000 | 18 | S-1901/120 | S-1901/240 | 1.57(.71) |
| 21(53) | 20(51) | 19-1/2(50) | 500 | 8 | S-2050/120 | S-2050/240 | 500 | 9 | S-2005/120 | S-2005/240 | 1.75(.79) |
| 23-3/4(60) | 22-3/4(58) | 22-1/4(57) | 250 | 4 | S-2425/120 | S-2425/240 | 500 | 7 | S-2405/120 | S-2405/240 | 1.88(.85) |
| 23-3/4(60) | 22-3/4(58) | 22-1/4(57) | 500 | 7 | S-2450/120 | S-2450/240 | 750 | 10 | S-2407/120 | S-2407/240 | 1.88(.85) |
| 23-3/4(60) | 22-3/4(58) | 22-1/4(57) | — | — | — | — | 1000 | 14 | S-2401/120 | S-2401/240 | 1.88(.85) |
| 23-3/4(60) | 22-3/4(58) | 22-1/4(57) | — | — | — | — | 1500 | 21 | S-2415/120 | S-2415/240 | 1.88(.85) |
| 25-1/2(65) | 24-1/2(62) | 24(61) | 750 | 10 | S-2575/120 | S-2575/240 | 1000 | 12 | S-2501/120 | S-2501/240 | 2.01(.91) |
| 26-3/4(68) | 25-3/4(65) | 25-1/4(64) | 700 | 8 | S-2670/120 | S-2670/240 | 750 | 9 | S-2607/120 | S-2607/240 | 2.13(.97) |
| 30-1/2(77) | 29-3/8(75) | 28(71) | 750 | 8 | S-3075/120 | S-3075/240 | 750 | 8 | S-3007/120 | S-3007/240 | 2.13(.97) |
| 33-1/2(85) | 32-3/8(82) | 31(79) | 750 | 7 | S-3375/120 | S-3375/240 | 1000 | 10 | S-3301/120 | S-3301/240 | 2.63(1.2) |
| 35-7/8(91) | 34-3/4(88) | 33-3/8(85) | 1000 | 7 | S-3610/120 | S-3610/240 | 1000 | 9 | S-3601/120 | S-3601/240 | 2.83(1.3) |
| 38-1/2(98) | 37-3/8(95) | 36(91) | 1000 | 8 | S-3810/120 | S-3810/240 | 1000 | 8 | S-3801/120 | S-3801/240 | 3.0(1.4) |
| 42-1/2(108) | 41-3/8(105) | 40(102) | 1250 | 9 | S-4312/120 | S-4312/240 | 1000 | 11 | S-4301/120 | S-4301/240 | 3.38(1.5) |
其他带状加热器型号可提供其他宽度和配置，请留言联系广州市赛拓仪器科技有限公司，将竭诚为您服务。
