当需要加热关键部件时，表面加热器和点加热器会在需要的地方提供适量的热量。这些加热器的应用范围几乎是无限的。HPG系列在电压和功率输出方面提供多种选择，有望成为受控直接加热的正确选择。占地面积小，安装方式多样，进一步增加了这些加热器的适应性
规格：
| 型号 | HPG-3315/3325/3375 | HPG-3415/3425/3475 | HPG-3515/3525/3575 |
| 10℃(50℉)时的额定功率输出 | 8W | 10W | 13W |
| 电气防护等级 | II | ||
| 防护等级(EN60529) | IP20 | ||
| 至高体温(25℃环境温度) | 170℃(338℉) | ||
| 工作温度范围 | -30 to 70℃(-22 to 158℉) | ||
| 储存温度范围 | -40 to 70℃(-40 to 158℉) | ||
| 额定输入电压加热元件 | 115 Vac/230 Vac/24 Vdc | ||

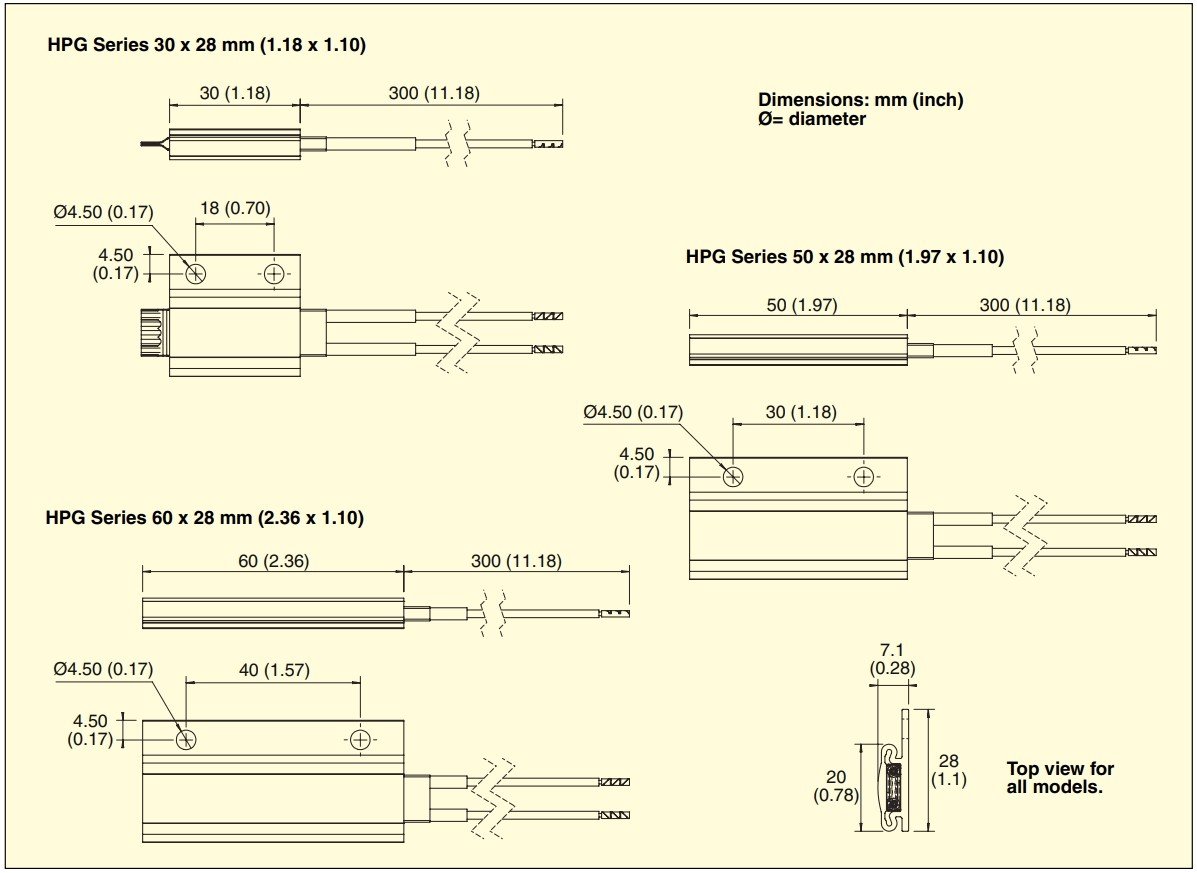

| 尺寸(横截面),mm(in) | 28x7(1.10x0.28) | ||
| 尺寸(长度),mm(inch) | 30(1.18) | 50(1.97) | 60(2.36) |
| 引线类型 | Sillicone AWG20 | ||
| 引线长度,mm(inch) | 300mm(11.8") | ||
| 电线端接 | Splice crip 6 mm(0.24") | ||
| 重量:g(oz) | 17(0.60) | 21(0.74) | 29(1.02) |
订货信息：
| 型号 | 描述 |
| HPG-3315 | 8W,30x28mm(1.18x1.10"),300mm(11.8")leads,115V |
| HPG-3325 | 8W,30x28mm(1.18x1.10"),300mm(11.8")leads,230V |
| HPG-3375 | 8W,30x28mm(1.18x1.10"),300mm(11.8")leads,24V |
| HPG-3415 | 10W,50x28mm(1.97x1.10"),300mm(11.8")leads,115V |
| HPG-3425 | 10W,50x28mm(1.97x1.10"),300mm(11.8")leads,230V |
| HPG-3475 | 10W,50x28mm(1.97x1.10"),300mm(11.8")leads,24V |
| HPG-3515 | 13W,60x28mm(2.36x1.10"),300mm(11.8")leads,115V |
| HPG-3525 | 13W,60x28mm(2.36x1.10"),300mm(11.8")leads,230V |
| HPG-3575 | 13W,60x28mm(2.36x1.10"),300mm(11.8")leads,24V |
配有操作手册
