应用：
罐底、胶水和铅熔炉、模具、压板、阀门法兰、培养箱、加热板、硫化机
规格：
电源：120或240V
功率: 125 to 1800 watts
护套材质：铬钢
至高护套温度：1200°F
特点：
1)单热环有两个端子，用于单瓦数、ON-OFF开关或恒温器。
2)三加热环有三个端子，将总额定功率分成两个相等的电路。通过使用三热开关，可以获得%或全瓦数。用3)两个相等的电路并联，以获得至大瓦数。中心端子是常见的。
4)完全采用耐火隔热结构。到目前为止，至坚固耐用，至好的长期，可靠的服务。
5)安装简单。圆形的形状和OMEGALUX实用夹具的使用简化了环形加热器的使用。嵌套环在一个小面积的热量可以通过安装环内彼此完成。例如:A-651、A-802和A-903在10%的2(28厘米)的圆。
6)实用夹。通常用于一组4个夹持环元件在平面上%6“通常使用(8cm)平头机螺钉其头部钎焊或焊接到工作表面。
7)要订购实用夹具，请索取型号6018夹钳。
120Vac订货信息：

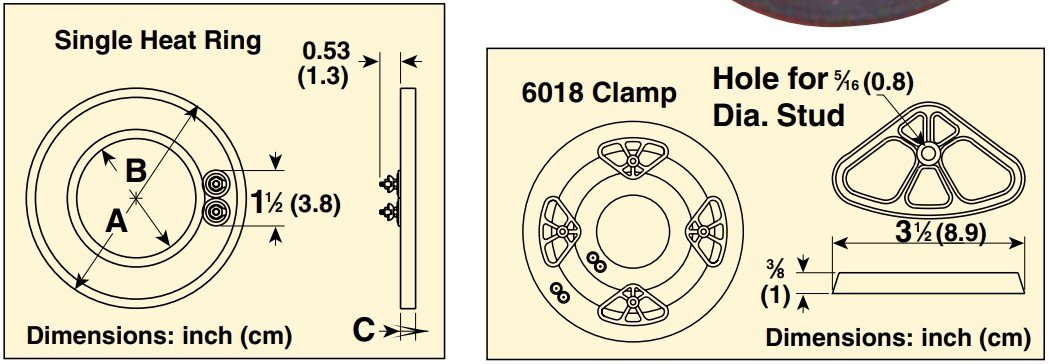

| 单热元件铬 钢护套型号 | 三热元件铬 钢护套型号 | Watts | W/in2 | 尺寸：inch(cm) | Wt.lb(kg) | ||
| A | B | C | |||||
| A-203/120 | A-20-33/120 | 300 | 12 | 3-31/32(10) | 1-11/16(4) | 5/16(8) | 0.7(0.3) |
| A-204/120 | A-20-34/120 | 400 | 15 | 3-31/32(10) | 1-11/16(4) | 5/16(8) | 0.7(0.3) |
| A-205/120 | A-20-35/120 | 500 | 19 | 3-31/32(10) | 1-11/16(4) | 5/16(8) | 0.7(0.3) |
| A-304/120 | A-30-34/120 | 450 | 14 | 4-5/8(12) | 2-1/4(6) | 5/16(8) | 0.8(0.4) |
| A-305/120 | A-30-35/120 | 500 | 15 | 4-5/8(12) | 2-1/4(6) | 5/16(8) | 0.8(0.4) |
| A-306/120 | A-30-36/120 | 550 | 17 | 4-5/8(12) | 2-1/4(6) | 5/16(8) | 0.8(0.4) |
| A-405/120 | A-40-35/120 | 500 | 12 | 5-7/16(14) | 3(8) | 5/16(8) | 0.8(0.4) |
| A-406/120 | A-40-36/120 | 660 | 16 | 5-7/16(14) | 3(8) | 5/16(8) | 0.8(0.4) |
| A-407/120 | A-40-37/120 | 750 | 18 | 5-7/16(14) | 3(8) | 5/16(8) | 0.8(0.4) |
| A-504/120 | A-50-34/120 | 400 | 10 | 6-1/16(15) | 4-5/16(11) | 5/16(8) | 0.9(0.4) |
| A-505/120 | A-50-35/120 | 450 | 11 | 6-1/16(15) | 4-5/16(11) | 5/16(8) | 0.9(0.4) |
| A-506/120 | A-50-36/120 | 500 | 13 | 6-1/16(15) | 4-5/16(11) | 5/16(8) | 0.9(0.4) |
| A-656/120 | A-65-36/120 | 660 | 12 | 6-1/8(16) | 3(9) | 5/16(8) | 1.0(0.5) |
| A-657/120 | A-65-37/120 | 750 | 14 | 6-1/8(16) | 3(9) | 5/16(8) | 1.0(0.5) |
| A-651/120 | A-65-31/120 | 1000 | 19 | 6-1/8(16) | 3(9) | 5/16(8) | 1.0(0.5) |
| A-605/120 | A-60-35/120 | 500 | 11 | 6-19/32(17) | 4-1/2(11) | 5/16(8) | 1.0(0.5) |
| A-606/120 | A-60-36/120 | 660 | 14 | 6-19/32(17) | 4-1/2(11) | 5/16(8) | 1.0(0.5) |
| A-607/120 | A-60-37/120 | 750 | 16 | 6-19/32(17) | 4-1/2(11) | 5/16(8) | 1.0(0.5) |
| A-705/120 | A-70-35/120 | 550 | 9 | 7-7/16(19) | 5-5/16(13) | 5/16(8) | 1.1(0.5) |
| A-706/120 | A-70-36/120 | 660 | 11 | 7-7/16(19) | 5-5/16(13) | 5/16(8) | 1.1(0.5) |
| A-707/120 | A-70-37/120 | 750 | 13 | 7-7/16(19) | 5-5/16(13) | 5/16(8) | 1.1(0.5) |
| A-808/120 | A-80-38/120 | 880 | 14 | 8-3/8(21) | 6-3/16(16) | 5/16(8) | 1.3(0.6) |
| A-801/120 | A-80-31/120 | 1050 | 16 | 8-3/8(21) | 6-3/16(16) | 5/16(8) | 1.3(0.6) |
| A-802/120 | A-80-32/120 | 1250 | 19 | 8-3/8(21) | 6-3/16(16) | 5/16(8) | 1.3(0.6) |
| A-901/120 | A-90-31/120 | 1000 | 10 | 10-31/32(28) | 8-1/2(22) | 5/16(8) | 1.8(0.6) |
| A-902/120 | A-90-32/120 | 1500 | 16 | 10-31/32(28) | 8-1/2(22) | 5/16(8) | 1.8(0.6) |
| A-903/120 | A-90-33/120 | 1800 | 19 | 10-31/32(28) | 8-1/2(22) | 5/16(8) | 1.8(0.6) |
240Vac订货信息：
| 单热元件铬 钢护套型号 | 三热元件铬 钢护套型号 | Watts | W/in2 | 尺寸：inch(cm) | Wt.lb(kg) | ||
| A | B | C | |||||
| A-203/240 | A-20-33/240 | 300 | 12 | 3-31/32(10) | 1-11/16(4) | 5/16(8) | 0.7(0.3) |
| A-204/240 | A-20-34/240 | 400 | 15 | 3-31/32(10) | 1-11/16(4) | 5/16(8) | 0.7(0.3) |
| A-205/240 | A-20-35/240 | 500 | 19 | 3-31/32(10) | 1-11/16(4) | 5/16(8) | 0.7(0.3) |
| A-304/240 | A-30-34/240 | 450 | 14 | 4-5/8(12) | 2-1/4(6) | 5/16(8) | 0.8(0.4) |
| A-305/240 | A-30-35/240 | 500 | 15 | 4-5/8(12) | 2-1/4(6) | 5/16(8) | 0.8(0.4) |
| A-306/240 | A-30-36/240 | 550 | 17 | 4-5/8(12) | 2-1/4(6) | 5/16(8) | 0.8(0.4) |
| A-405/240 | A-40-35/240 | 500 | 12 | 5-7/16(14) | 3(8) | 5/16(8) | 0.8(0.4) |
| A-406/240 | A-40-36/240 | 660 | 16 | 5-7/16(14) | 3(8) | 5/16(8) | 0.8(0.4) |
| A-407/240 | A-40-37/240 | 750 | 18 | 5-7/16(14) | 3(8) | 5/16(8) | 0.8(0.4) |
| A-504/240 | A-50-34/240 | 400 | 10 | 6-1/16(15) | 4-5/16(11) | 5/16(8) | 0.9(0.4) |
| A-505/240 | A-50-35/240 | 450 | 11 | 6-1/16(15) | 4-5/16(11) | 5/16(8) | 0.9(0.4) |
| A-506/240 | A-50-36/240 | 500 | 13 | 6-1/16(15) | 4-5/16(11) | 5/16(8) | 0.9(0.4) |
| A-656/240 | A-65-36/240 | 660 | 12 | 6-1/8(16) | 3(9) | 5/16(8) | 1.0(0.5) |
| A-657/240 | A-65-37/240 | 750 | 14 | 6-1/8(16) | 3(9) | 5/16(8) | 1.0(0.5) |
| A-651/240 | A-65-31/240 | 1000 | 19 | 6-1/8(16) | 3(9) | 5/16(8) | 1.0(0.5) |
| A-605/240 | A-60-35/240 | 500 | 11 | 6-19/32(17) | 4-1/2(11) | 5/16(8) | 1.0(0.5) |
| A-606/240 | A-60-36/240 | 660 | 14 | 6-19/32(17) | 4-1/2(11) | 5/16(8) | 1.0(0.5) |
| A-607/240 | A-60-37/240 | 750 | 16 | 6-19/32(17) | 4-1/2(11) | 5/16(8) | 1.0(0.5) |
| A-705/240 | A-70-35/240 | 550 | 9 | 7-7/16(19) | 5-5/16(13) | 5/16(8) | 1.1(0.5) |
| A-706/240 | A-70-36/240 | 660 | 11 | 7-7/16(19) | 5-5/16(13) | 5/16(8) | 1.1(0.5) |
| A-707/240 | A-70-37/240 | 750 | 13 | 7-7/16(19) | 5-5/16(13) | 5/16(8) | 1.1(0.5) |
| A-808/240 | A-80-38/240 | 880 | 14 | 8-3/8(21) | 6-3/16(16) | 5/16(8) | 1.3(0.6) |
| A-801/240 | A-80-31/240 | 1050 | 16 | 8-3/8(21) | 6-3/16(16) | 5/16(8) | 1.3(0.6) |
| A-802/240 | A-80-32/240 | 1250 | 19 | 8-3/8(21) | 6-3/16(16) | 5/16(8) | 1.3(0.6) |
| A-901/240 | A-90-31/240 | 1000 | 10 | 10-31/32(28) | 8-1/2(22) | 5/16(8) | 1.8(0.6) |
| A-902/240 | A-90-32/240 | 1500 | 16 | 10-31/32(28) | 8-1/2(22) | 5/16(8) | 1.8(0.6) |
| A-903/240 | A-90-33/240 | 1800 | 19 | 10-31/32(28) | 8-1/2(22) | 5/16(8) | 1.8(0.6) |
还提供低至 125 瓦的低瓦数和更小的外径，请留言所需产品。
