规格
精度：量程的±0.25%，接线点（0.13%BFSL）

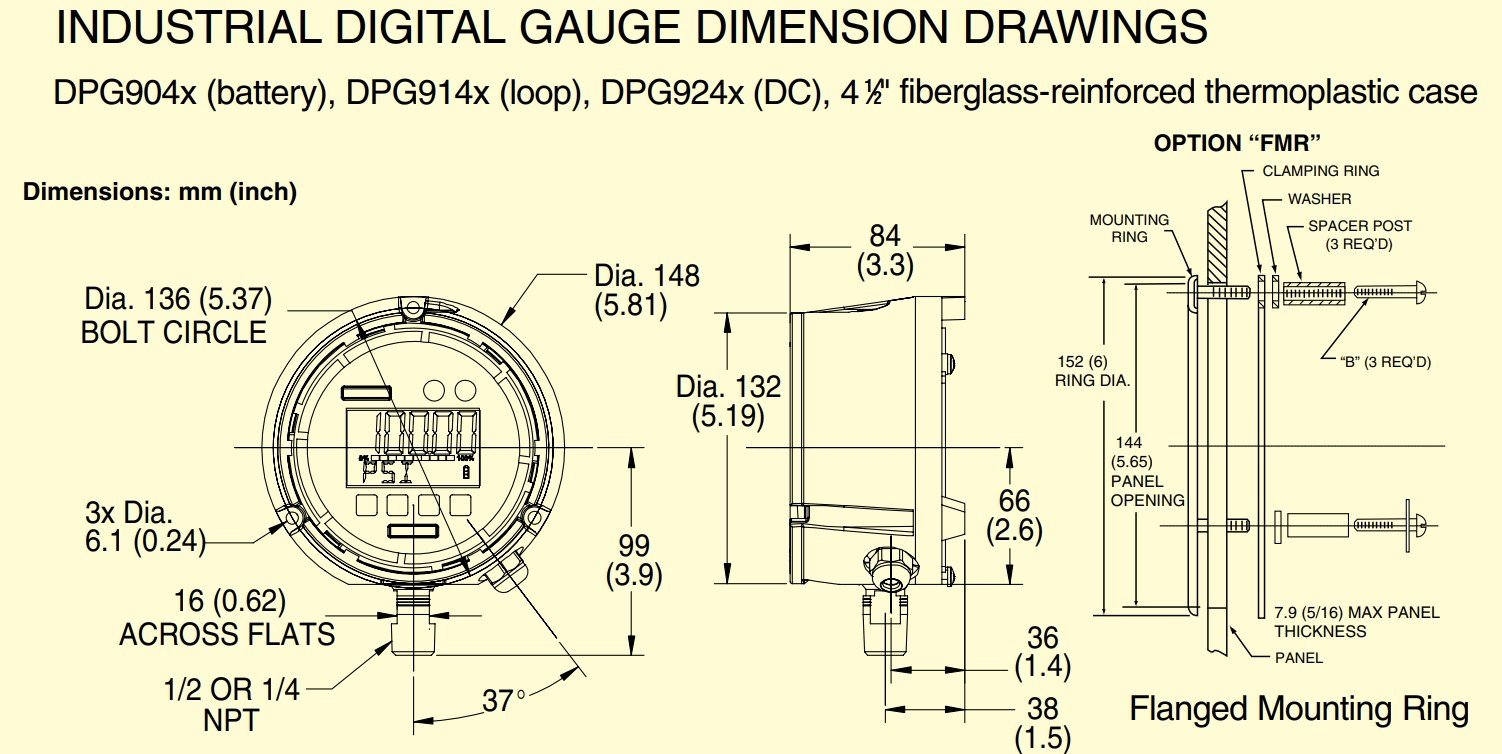

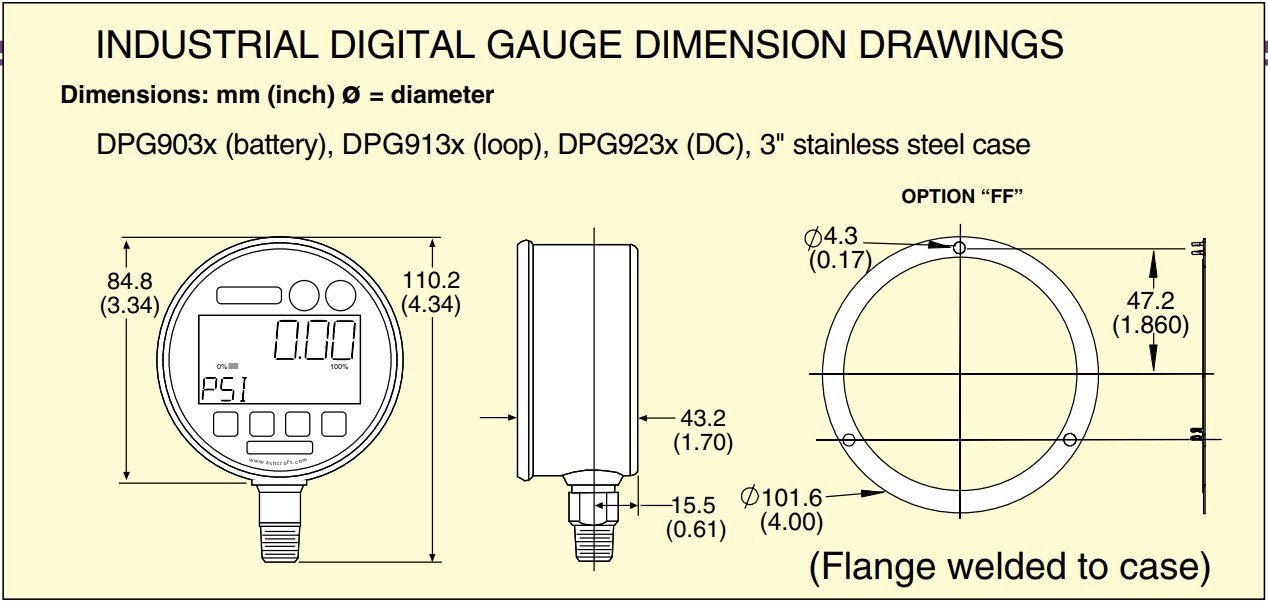

表壳尺寸：76mm（3“），114mm（4.5”）
表壳材质：3“不锈钢，4.5”玻璃纤维增强热塑性塑料
外壳等级：防风雨，NEMA4（IP65）
接液材料：17-4SS（传感器），316SS（插座）
插座尺寸：1/4NPT标准;定制：1/2NPT、JIS、DIN、SAE（1/2NPT仅适用于4.5英寸外壳，其他应用）。请咨询工程部门以订购定制插座。
插座连接：下部（标准）;3、9和12点钟方向可选
工作温度：10至60℃（14至140℉）
温度误差：（零点和量程）0.08%/℃（0.04%/℉）（<0.04%℃典型值）
储存温度：-20至70℃（-4至158℉）
显示：5位LCD
字符高度：
3“表壳：15毫米（0.60英寸）
4.5英寸表壳：22毫米（0.88英寸）
背光：标准
条形图：标准
电池寿命：3“>1000小时、4.5”>3600小时
电源选项：
直流电源：12至36Vdc，至大2VA
回路电源：12至36Vdc
可选开关的电气额定值（限选件S1或S2 DPG9200系列）：（1）或（2）SPDT开关;30Vdc至大1A，125Vac5A（开关可调至量程的100%）
背光显示屏：型号9x30和9x45
备用电池：型号9130、9230、9145、9245
键盘功能：
开/关：手动打开和关闭设备（菜单中的自动关闭选项）
零/清除：零显示或显示时清除至小值和至大值
至小值/至大值（向下）箭头键：存储至小值和至大值，箭头键允许滚动菜单项
菜单键：提供对菜单选项的访问
背光（向上）箭头键：手动打开和关闭背光（菜单中的自动关闭选项）;箭头键允许5个菜单选项。（向上）箭头键允许滚动菜单选项。
输入：选择菜单中的项目
菜单模式：

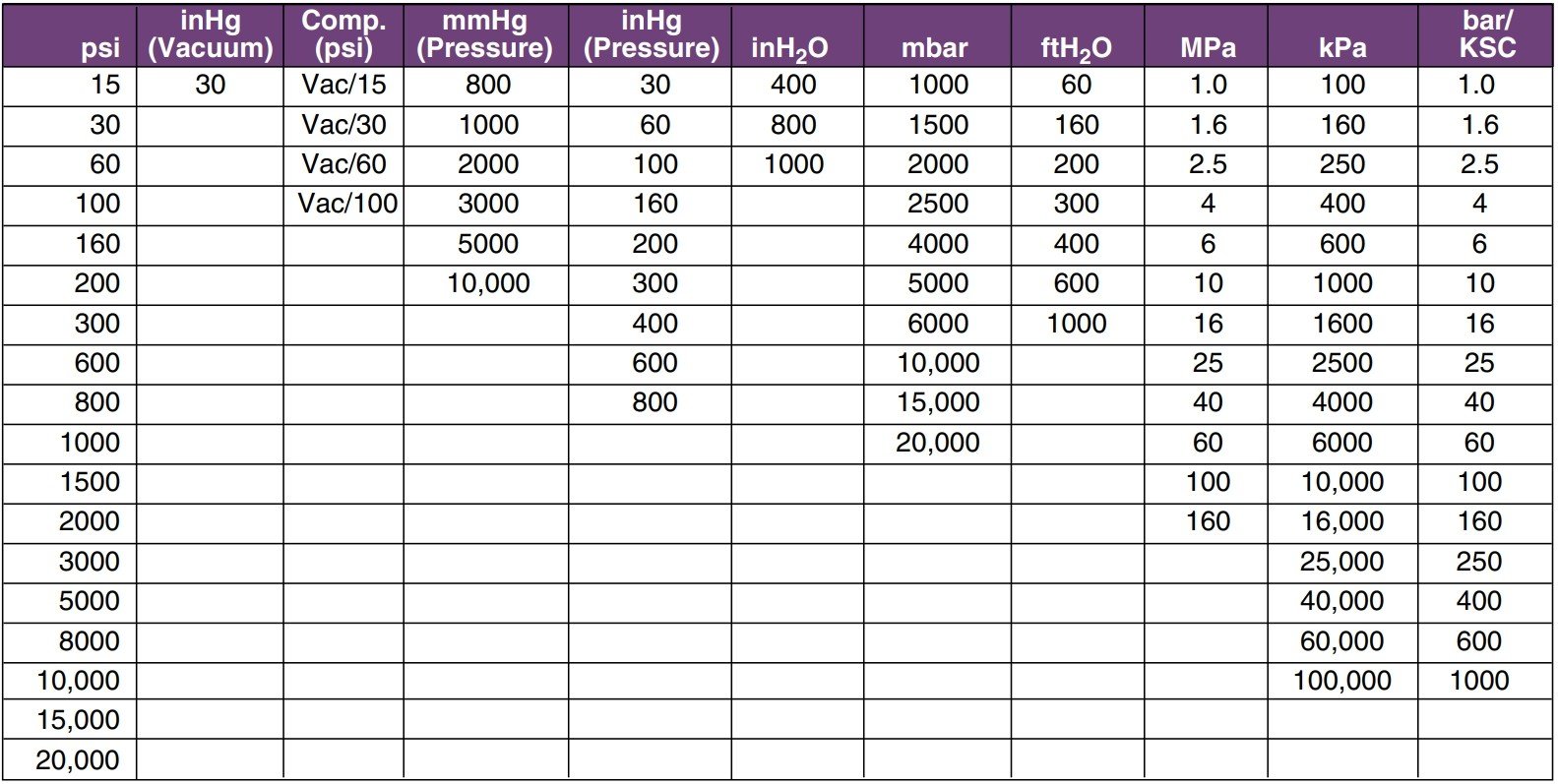

工程单位：提供10种测量单位：psi、inH2O（有三种温度选项：20℃、60℉、4℃）、ftH2O、mPa、mbar、kPa、kg/cm2、bar、inHg和mmHg
配置模式：（配置）允许更改仪表的默认设置，包括零禁用功能
条形图：（图表）允许调整条形图和4至20mA（可选功能）
自动关闭（5个选项）：（关闭）允许更改仪表的自动关闭：从不、2分钟、5分钟、15分钟、30分钟
更新速率（4个选项）：（更新）100ms、200ms、500ms、1s
阻尼（6个选项）：（Damp）无、平均、每100毫秒2、4、6、8次
背光（5个选项）：从不、10秒、30秒、1分钟、5分钟
现场重新校准：允许重新校准零点、中间量程和量程（密码保护）
订货信息：
| 3"仪表 普通型号 | 3"仪表 背光型号 | 4.5"普通 型号 | 4.5"仪表 背光型号 | 范围 | |
| psig | bar | ||||
| 电池供电型号 - 1⁄4NPT下部连接 | |||||
| DPG9031-VAC | DPG9030-VAC | DPG9046-VAC | DPG9045-VAC | 0 to -14.7 | 0 to -1 |
| DPG9031-VAC/15 | DPG9030-VAC/15 | DPG9046-VAC/15 | DPG9045-VAC/15 | -14.7 to 15 | -1 to 1 |
| DPG9031-VAC/30 | DPG9030-VAC/30 | DPG9046-VAC/30 | DPG9045-VAC/30 | -14.7 to 30 | -1 to 2 |
| DPG9031-15 | DPG9030-15 | DPG9046-15 | DPG9045-15 | 0 to 15 | 0 to 1 |
| DPG9031-30 | DPG9030-30 | DPG9046-30 | DPG9045-30 | 0 to 30 | 0 to 2 |
| DPG9031-60 | DPG9030-60 | DPG9046-60 | DPG9045-60 | 0 to 60 | 0 to 4 |
| DPG9031-100 | DPG9030-100 | DPG9046-100 | DPG9045-100 | 0 to 100 | 0 to 7 |
| DPG9031200 | DPG9030200 | DPG9046200 | DPG9045200 | 0 to 200 | 0 to 13 |
| DPG9031-300 | DPG9030-300 | DPG9046-300 | DPG9045-300 | 0 to 300 | 0 to 20 |
| DPG9031-600 | DPG9030-600 | DPG9046-600 | DPG9045-600 | 0 to 600 | 0 to 41 |
| DPG9031-1K | DPG9030-1K | DPG9046-1K | DPG9045-1K | 0 to 1000 | 0 to 69 |
| DPG9031-2K | DPG9030-2K | DPG9046-2K | DPG9045-2K | 0 to 2000 | 0 to 138 |
| DPG9031-3K | DPG9030-3K | DPG9046-3K | DPG9045-3K | 0 to 3000 | 0 to 207 |
| DPG9031-5K | DPG9030-5K | DPG9046-5K | DPG9045-5K | 0 to 5000 | 0 to 345 |
| DPG9031-10K | DPG9030-10K | DPG9046-10K | DPG9045-10K | 0 to 10,000 | 0 to 690 |
| 环路供电型号 - 1/4 NPT下部连接 | |||||
| DPG9131-VAC | DPG9130-VAC | DPG9146-VAC | DPG9145-VAC | 0 to -14.7 | 0 to -1 |
| DPG9131-VAC/15 | DPG9130-VAC/15 | DPG9146-VAC/15 | DPG9145-VAC/15 | -14.7 to 15 | -1 to 1 |
| DPG9131-VAC/30 | DPG9130-VAC/30 | DPG9146-VAC/30 | DPG9145-VAC/30 | -14.7 to 30 | -1 to 2 |
| DPG9131-15 | DPG9130-15 | DPG9146-15 | DPG9145-15 | 0 to 15 | 0 to 1 |
| DPG9131-30 | DPG9130-30 | DPG9146-30 | DPG9145-30 | 0 to 30 | 0 to 2 |
| DPG9131-60 | DPG9130-60 | DPG9146-60 | DPG9145-60 | 0 to 60 | 0 to 4 |
| DPG9131-100 | DPG9130-100 | DPG9146-100 | DPG9145-100 | 0 to 100 | 0 to 7 |
| DPG9131200 | DPG9130200 | DPG9146200 | DPG9145200 | 0 to 200 | 0 to 13 |
| DPG9131-300 | DPG9130-300 | DPG9146-300 | DPG9145-300 | 0 to 300 | 0 to 20 |
| DPG9131-600 | DPG9130-600 | DPG9146-600 | DPG9145-600 | 0 to 600 | 0 to 41 |
| DPG9131-1K | DPG9130-1K | DPG9146-1K | DPG9145-1K | 0 to 1000 | 0 to 69 |
| DPG9131-2K | DPG9130-2K | DPG9146-2K | DPG9145-2K | 0 to 2000 | 0 to 138 |
| DPG9131-3K | DPG9130-3K | DPG9146-3K | DPG9145-3K | 0 to 3000 | 0 to 207 |
| DPG9131-5K | DPG9130-5K | DPG9146-5K | DPG9145-5K | 0 to 5000 | 0 to 345 |
| DPG9131-10K | DPG9130-10K | DPG9146-10K | DPG9145-10K | 0 to 10,000 | 0 to 690 |
| 直流供电型号 - 1/4 NPT下部连接 | |||||
| DPG9231-VAC | DPG9230-VAC | DPG9246-VAC | DPG9245-VAC | 0 to -14.7 | 0 to -1 |
| DPG9231-VAC/15 | DPG9230-VAC/15 | DPG9246-VAC/15 | DPG9245-VAC/15 | -14.7 to 15 | -1 to 1 |
| DPG9231-VAC/30 | DPG9230-VAC/30 | DPG9246-VAC/30 | DPG9245-VAC/30 | -14.7 to 30 | -1 to 2 |
| DPG9231-15 | DPG9230-15 | DPG9246-15 | DPG9245-15 | 0 to 15 | 0 to 1 |
| DPG9231-30 | DPG9230-30 | DPG9246-30 | DPG9245-30 | 0 to 30 | 0 to 2 |
| DPG9231-60 | DPG9230-60 | DPG9246-60 | DPG9245-60 | 0 to 60 | 0 to 4 |
| DPG9231-100 | DPG9230-100 | DPG9246-100 | DPG9245-100 | 0 to 100 | 0 to 7 |
| DPG9231200 | DPG9230200 | DPG9246200 | DPG9245200 | 0 to 200 | 0 to 13 |
| DPG9231-300 | DPG9230-300 | DPG9246-300 | DPG9245-300 | 0 to 300 | 0 to 20 |
| DPG9231-600 | DPG9230-600 | DPG9246-600 | DPG9245-600 | 0 to 600 | 0 to 41 |
| DPG9231-1K | DPG9230-1K | DPG9246-1K | DPG9245-1K | 0 to 1000 | 0 to 69 |
| DPG9231-2K | DPG9230-2K | DPG9246-2K | DPG9245-2K | 0 to 2000 | 0 to 138 |
| DPG9231-3K | DPG9230-3K | DPG9246-3K | DPG9245-3K | 0 to 3000 | 0 to 207 |
| DPG9231-5K | DPG9230-5K | DPG9246-5K | DPG9245-5K | 0 to 5000 | 0 to 345 |
| DPG9231-10K | DPG9230-10K | DPG9246-10K | DPG9245-10K | 0 to 10,000 | 0 to 690 |
订购示例：
DPG9030-VAC型号，电池供电的数显压力表，带3英寸刻度盘，0至-14.7psi范围
冷却元件
PG-CTN4-G03型号，1/4NPT外螺纹x1/4NPT内螺纹，用于300℃工艺
PG-CTN4-G02型号，1/4NPT外螺纹x1/4NPT内螺纹，用于150℃工艺
